Temperature Controllers E5CSV 7
4. Using the Control Mode Switches
(1) Using ON/OFF Control and PID Control
(1.1) ON/OFF Control
The control mode is set to ON/OFF control as the default setting. To perform cooling control of freezers, etc., turn ON switch 3.
(1.2) PID Control
Turn ON switch 1 to use PID control.
1. Set the control period.
Performing Control via Relay Output, External Relay, or
Conductor
Switch 2: OFF (control period: 20 s)
Quick Control Response Using an SSR
Switch 2: ON (control period: 2 s)
2. Set direct/reverse operation for the output.
Performing Heating Control for Heaters
Switch 3: OFF
Performing Cooling Control for Freezers
Switch 3: ON
654321
ON
Switch 1 OFF: ON/OFF control
OFF
ONControl output
SP
654321
ON
OFF
ONControl output
SP
654321
ON
Switch 1 ON: PID control
654321
ON
OFF
ONControl output
20 s
654321
ON
OFF
ONControl output
2 s
654321
ON
0%
100%
SP
Output level
654321
ON
0%
100%
SP
Output level
8 Temperature Controllers E5CSV

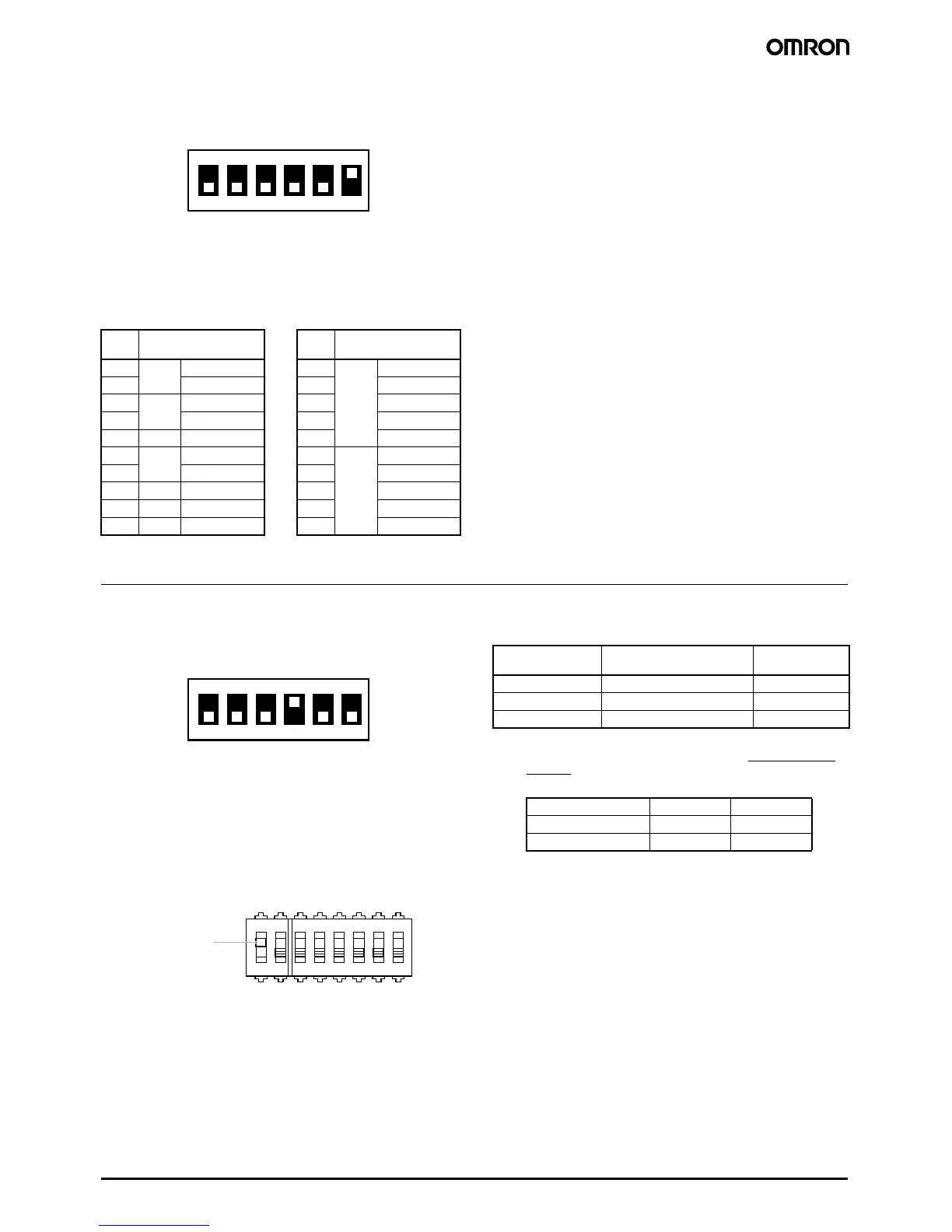

(2) Using the E5CSV in Devices for Fahrenheit-scale Users
(Displaying in ° F)
Turn ON switch 6 to display temperatures in ° F.
Temperature Range for ° F
The temperature is set to ° F using the same temperature range switch as ° C.
Note: The control range for multi-input (thermocouple/platinum resistance thermometer) models is -40 to +40° F of each temperature range.
The previous name J-DIN has been changed to L in accordance with revisions to DIN standards.
(3) Setting Input Shift
Turn ON switch 4, and after turning ON the power, press the Mode
Key until h0 (indicates input shift of 0) is displayed. Press the Up and
Down Keys to set the shift value.
Shift Example
Note: When control mode switch 4 is turned OFF (no input shift
display), the input shift is not displayed but the shift value is
enabled. To disable input shift, set the input shift value to h0.
The shift range depends on the setting unit.
5. Protect Switch
When the protect switch is ON, Up Key and Down Key operations are prohibited to prevent setting mistakes.
654321
ON
Multi-input (Thermocouple/
Platinum Resistance
Thermometer)
Control mode switch 5: OFF
Multi-input (Thermocouple/
Platinum Resistance
Thermometer)
Control mode switch 5: ON
Set-
ting
° F Set-
ting
° F
0 K -99 to 1999 0 Pt100 -99 to 1500
1 0.0 to 199.9 1 0.0 to 199.9
2 J -99 to 1500 2 -99 to 99
3 0.0 to 199.9 3 0 to 200
4 L -99 to 1500 4 0 to 400
5 T -99 to 700 5 JPt100 -99 to 900
6 0.0 to 199.9 6 0.0 to 199.9
7 U -99 to 700 7 -99 to 99
8 N -99 to 1999 8 0 to 200
9 R 0 to 1999 9 0 to 400
654321
ON
Input shift display Measured temperature Temperature
display
h0 (no shift) 100° C 100° C
h9 (+9° C shift) 100° C 109° C
l9 (-9° C shift) 100° C 91° C
Setting unit 1° C 0.1° C
Compensation range -99 to +99° C -9.9 to +9.9° C
Input shift display L99 to H99 L9.9 to H9.9
P
ON
X 1 2 3 4 5 6
Protect Switch
Temperature Controllers E5CSV 11

Omron E5CSV Specifications

General

Setting Method	Digital setting using front panel keys
Dimensions	48 x 48 x 78 mm (W x H x D)
Number of Control Outputs	1
Control Method	ON/OFF control or PID control
Input Types	Thermocouple
Supply Voltage	100 to 240 VAC
Output Type	Relay or Voltage (for driving SSR)
Display	7-segment digital display
Mounting Method	Panel mounting
Setting Resolution	0.1 °C or 1 °C
Power Supply Voltage	100 to 240 VAC
Ambient Operating Humidity	25% to 85% RH
Ambient Operating Temperature	-10 to 55°C (with no icing or condensation)
