Omron E5EN-H - Status and Status 2; Status Structure

Com Data for CompoWay/F
SECTION 3 Communications Data for CompoWay/F and SYSWAY
3-16
3.2 Status and Status 2

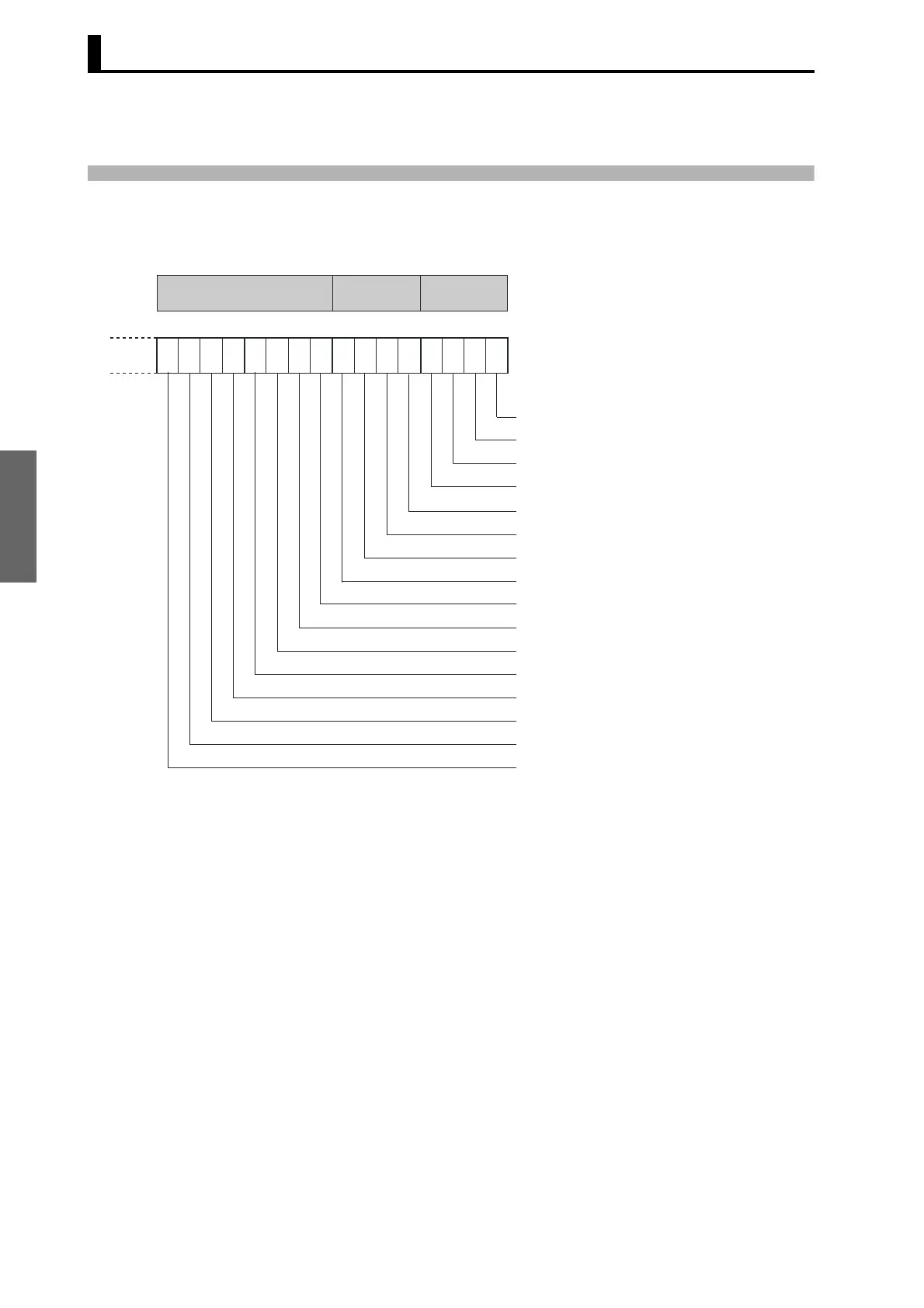

The figure below shows the structure of the status data.
■ Status Structure
161514131211109876543210
Bit position
Heater overcurrent (CT1)
Heater current hold (CT1)
A/D converter error
HS alarm (CT1)
RSP input error
Display range exceeded
Input error
Potentiometer input error
Control output (heating)/open output
Control output (cooling)/close output
HB (heater burnout) alarm (CT1)
HB (heater burnout) alarm (CT2)
Alarm 1
Alarm 2
Alarm 3
Program end output
Outputs Input error HB error
