6

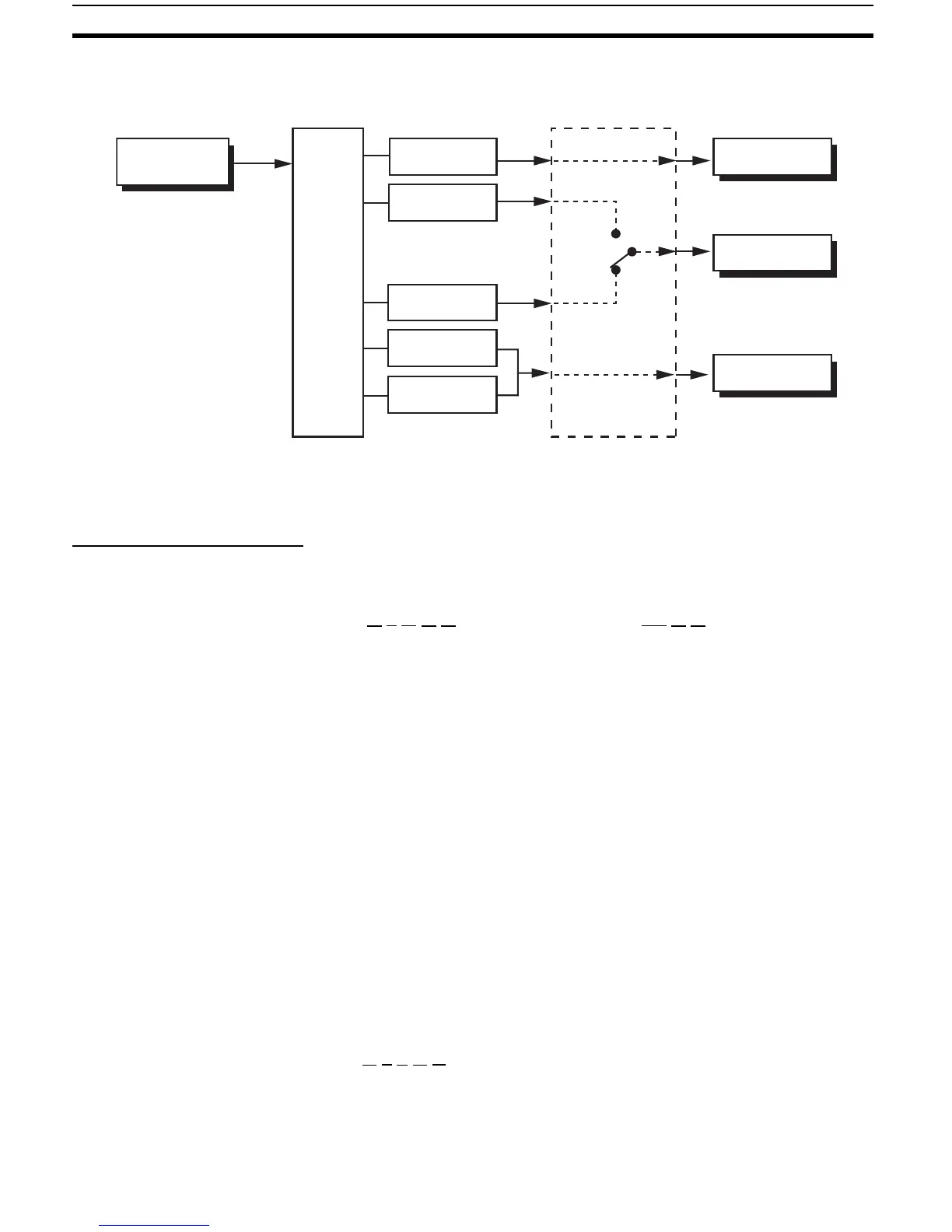

I/O Configuration and Main Functions Section 1-2
E5CZ-U
Note Functions can be assigned individually for each output by changing the set val-
ues for the control output 1 assignment, the alarm output 1 assignment, and
the alarm output 2 assignment in the advanced function setting level
Model Number Structure
Model Number Legend
Controllers Option Units
E5CZ- @ 2 M @ @ E53-CZ @ @
1 2 3 4 5 1 2 3
1. Control Output 1 1. Applicable Controller
R: Relay output CZ: E5CZ
Q: Voltage output (for driving SSR) 2. Function 1
C: Current output Blank: None
2. Number of Alarms H: Heater burnout/Heater short
2: Two alarms detection(CT1)
3. Option 3. Function 2
M: Option Unit can be mounted. B: Two event inputs
4. Input Type 03: RS-485 communications
T: Thermocouple, infrared sensor
/platinum resistance thermometer
L: Analog current/voltage input
5. Power Supply Voltage
Blank: 100 to 240 VAC
D: 24 VAC/VDC
E5CZ-@ 2 T @ U
1 2 3 4 5
1. Output Type
R: Relay output
Q: Voltage ouput (for driving SSR)
Temperature input
or analog input
Control
section
Control output 1
Control output 2
Alarm output 1
Alarm output 2
Control output 1
Input error
Heating/
cooling
Alarm output 1
Alarm output 2
Standard
