Omron E5EZ User Manual

7
I/O Configuration and Main Functions Section 1-2
2. Number of Alarms
2: Two alarms
3. Input Type
T: Thermocouple, infrared sensor
/platinum resistance thermometer
4. Power Supply Voltage
Blank: 100 to 240 VAC
D: 24 VAC/VDC
5. Plug-in type
U: Plug-in type
Note Not all combinations of function 1 and function 2 specifications are possible
for Option Units (E53-CZ@@).
A functional explanation is provided here for illustration, but models are not
necessarily available for all possible combinations. Refer to the catalog when
ordering.
Examples:
Communications function E5CZ-@2MT with E53-CZ03
Alarm output (with 2 alarm outputs, HB alarm,
and event inputs): E5CZ-@2MT with E53-CZHB

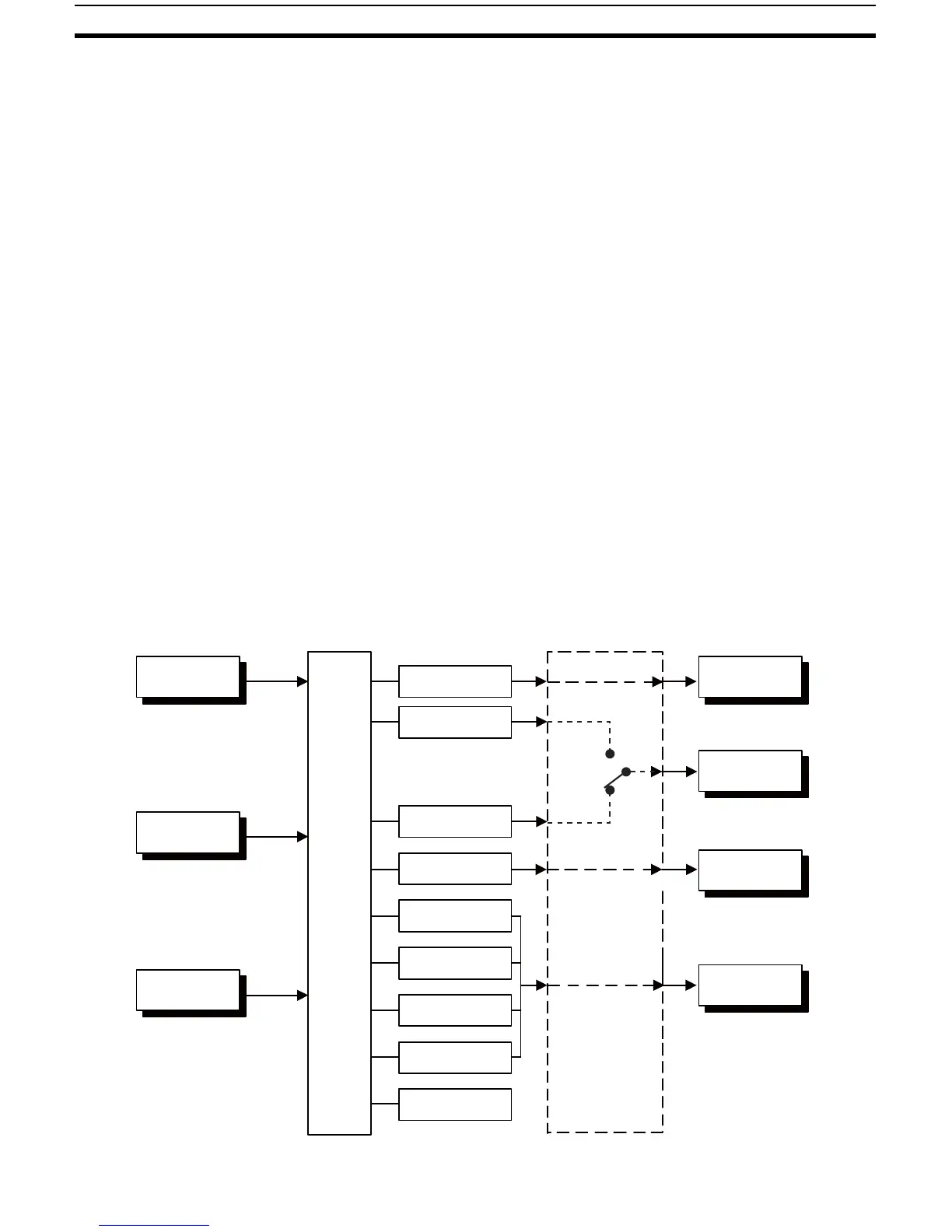

E5AZ/EZ
Note Functions can be assigned individually for each output by changing the set
values for the control output 1 assignment, the alarm output 1 assignment, the
Temperature input
or analog input
Control
section
CT1 input
Event inputs
2 channels
Set point input functions
from external digital
switches:
RUN/STOP
Auto/Manual
Control output 1
Control output 2
Alarm output 3
Alarm output 1
Alarm output 2
HB alarm
HS alarm
Input error
Communications
function
Control output 1
Alarm output 1
Alarm output 2
Alarm output 3
Heating/
cooling
Standard

Omron E5EZ Specifications

General

Brand	Omron
Model	E5EZ
Category	Temperature Controller
Language	English
