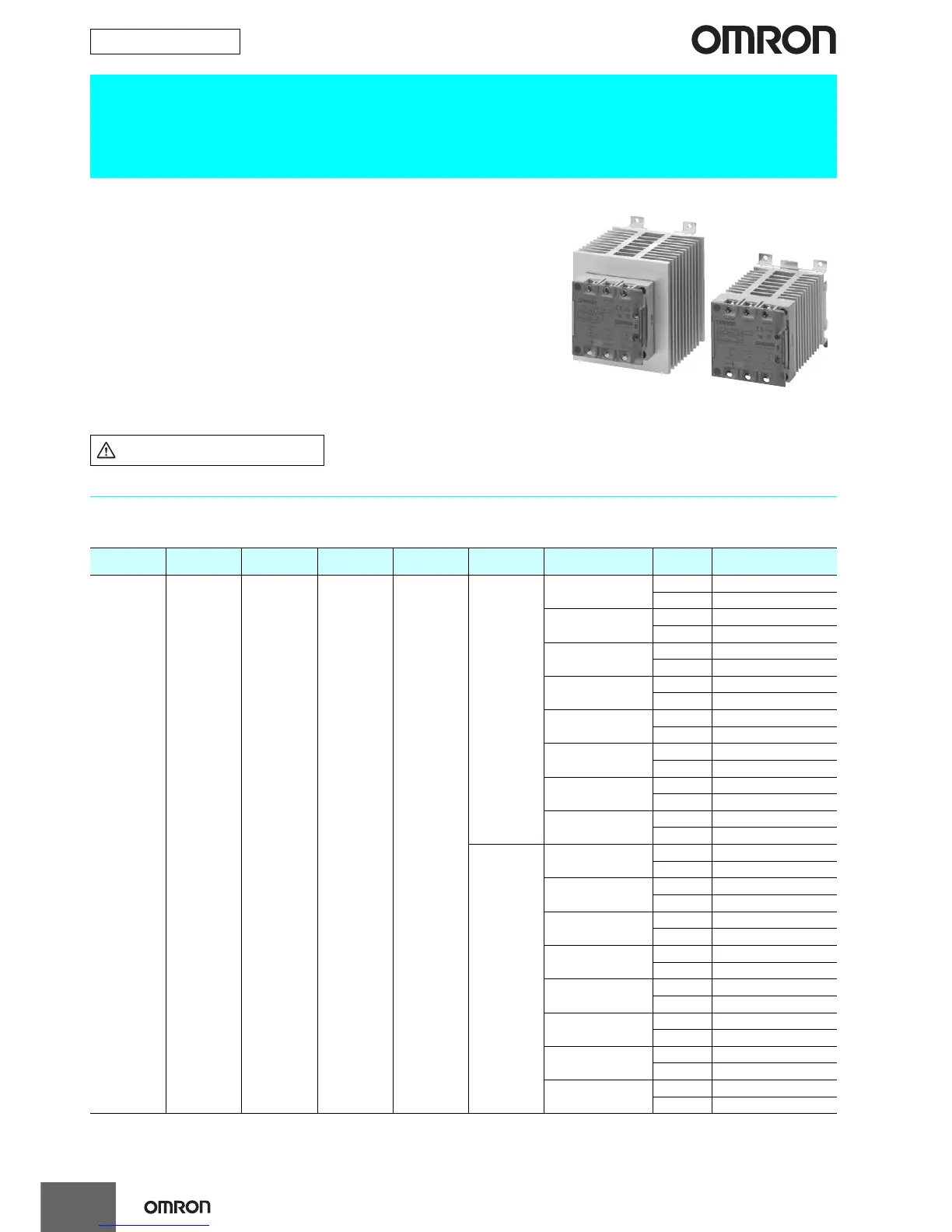

New Product
6
Solid State Contactors for Heaters
Three-phase G3PE
Compact, Slim-profile SSRs with Heat Sinks.
Solid State Contactors for Three-phase Heaters
Reduced Installation Work with DIN Track
Mounting.
• RoHS compliant.
• Improved surge dielectric strength for output circuits.
• Slim design with 3-phase output and built-in heat sinks.
• DIN Track mounting types and screw mounting types are available. All
DIN Track mounting types mount to DIN Track (applicable DIN Track:
TR35-15Fe (IEC 60715)).
• Certification pending for UL, CSA, and EN (TÜV certification).
Ordering Information
List of Models
Models with Built-in Heat Sinks
*1. The applicable load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient Temperature in Engineering
Data on page 10.
*2. The applicable DIN Track is the TR35-15Fe (IEC 60715). For details, refer to the mounting information in the Safety Precautions.
Refer to Safety Precautions on page 18.
Number of
phases
Insulation
method
Operation
indicator
Rated input
voltage
Zero cross
function
Type Applicable load *1
Number of
poles
Model
Three-phase
Phototriac
coupler
Yes (yellow) 12 to 24 VDC Yes
DIN track
mounting *2
15 A, 100 to 240 VAC
3 G3PE-215B-3N DC12-24
2 G3PE-215B-2N DC12-24
25 A, 100 to 240 VAC
3 G3PE-225B-3N DC12-24
2 G3PE-225B-2N DC12-24
35 A, 100 to 240 VAC
3 G3PE-235B-3N DC12-24
2 G3PE-235B-2N DC12-24
45 A, 100 to 240 VAC
3 G3PE-245B-3N DC12-24
2 G3PE-245B-2N DC12-24
15 A, 200 to 480 VAC
3 G3PE-515B-3N DC12-24
2 G3PE-515B-2N DC12-24
25 A, 200 to 480 VAC
3 G3PE-525B-3N DC12-24
2 G3PE-525B-2N DC12-24
35 A, 200 to 480 VAC
3 G3PE-535B-3N DC12-24
2 G3PE-535B-2N DC12-24
45 A, 200 to 480 VAC
3 G3PE-545B-3N DC12-24
2 G3PE-545B-2N DC12-24
Screw
mounting
15 A, 100 to 240 VAC
3 G3PE-215B-3 DC12-24
2 G3PE-215B-2 DC12-24
25 A, 100 to 240 VAC
3 G3PE-225B-3 DC12-24
2 G3PE-225B-2 DC12-24
35 A, 100 to 240 VAC
3 G3PE-235B-3 DC12-24
2 G3PE-235B-2 DC12-24
45 A, 100 to 240 VAC
3 G3PE-245B-3 DC12-24
2 G3PE-245B-2 DC12-24
15 A, 200 to 480 VAC
3 G3PE-515B-3 DC12-24
2 G3PE-515B-2 DC12-24
25 A, 200 to 480 VAC
3 G3PE-525B-3 DC12-24
2 G3PE-525B-2 DC12-24
35 A, 200 to 480 VAC
3 G3PE-535B-3 DC12-24
2 G3PE-535B-2 DC12-24
45 A, 200 to 480 VAC
3 G3PE-545B-3 DC12-24
2 G3PE-545B-2 DC12-24
