Omron G9SA User Manual

13
G9SA

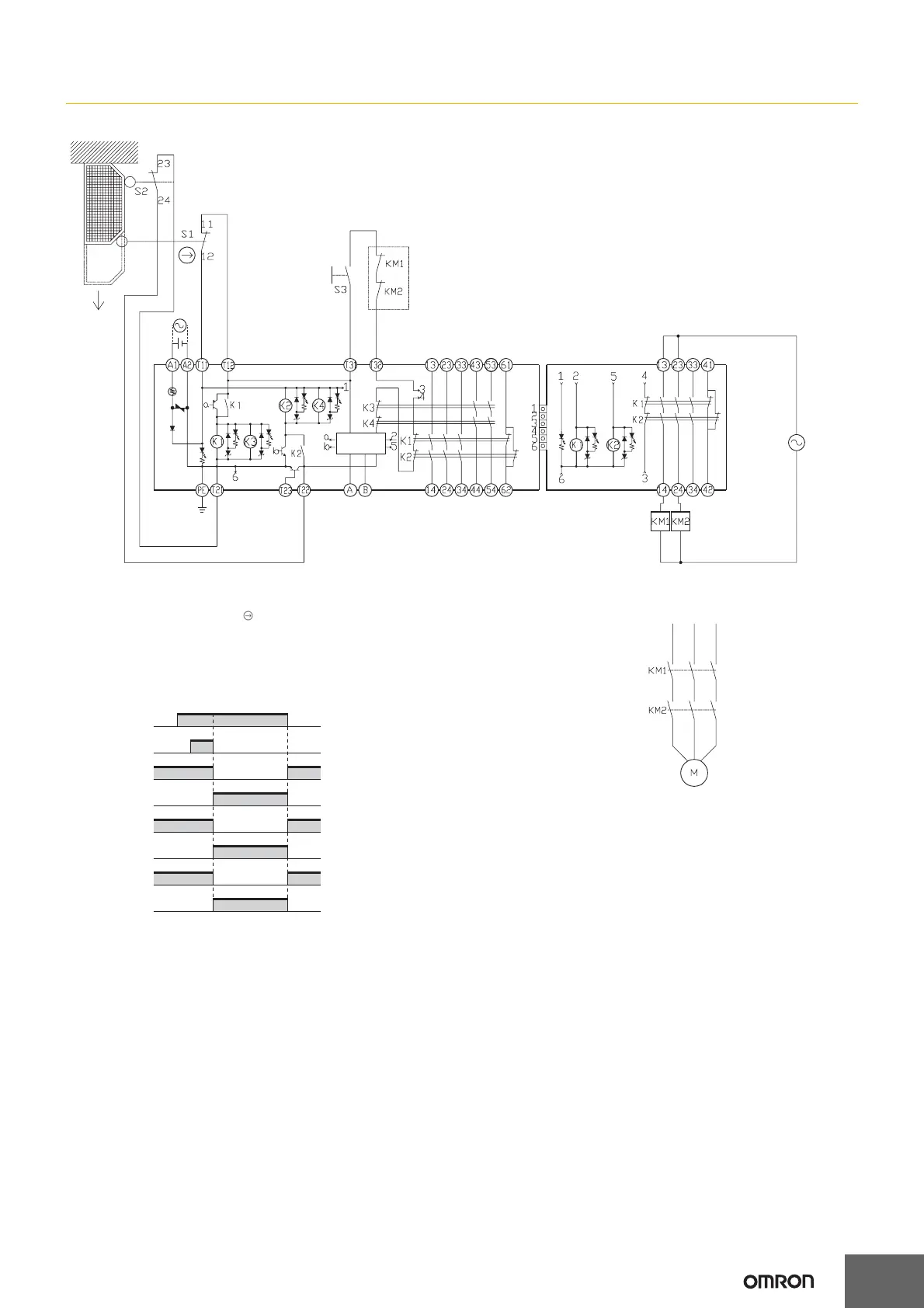

G9SA-501 (24 VAC/VDC) and G9SA-EX301 with 2-channel Limit Switch Input/Manual Reset
Feedback loop
Timing Chart
Open
Note: This circuit achieves Safety Category 4.
S1: Safety Limit Switch
with direct opening mechanism (NC)
(D4B-N, D4N, D4F)
S2: Limit switch (NO)
S3: Reset switch
KM1 and KM2: Magnetic Contactor
M: 3-phase motor
Limit switches S1
and S2
Reset switch
S3
G9SA-501
K1, K2, K3 and
K4 (NC)
G9SA-501
K1, K2, K3, and
K4 (NO)
G9SA-EX301
K1 and K2 (NC)
G9SA-EX301
K1 and K2 (NO)
KM1 and KM2
(NC)
KM1 and KM2
(NO)
TH
SA
Control
circuit

Omron G9SA Specifications

General

Rated Current	6A
Mounting Type	DIN Rail
Dimensions	90mm x 22.5mm x 100mm
Weight	Approx. 200g
Safety Category	Category 4
Rated Voltage	24 VDC
Operating Temperature	-10°C to 55°C
Contact Rating	6A at 250V AC
Electrical Life	100, 000 operations
Mechanical Life	10, 000, 000 operations
