Omron G9SA User Manual

G9SA
12

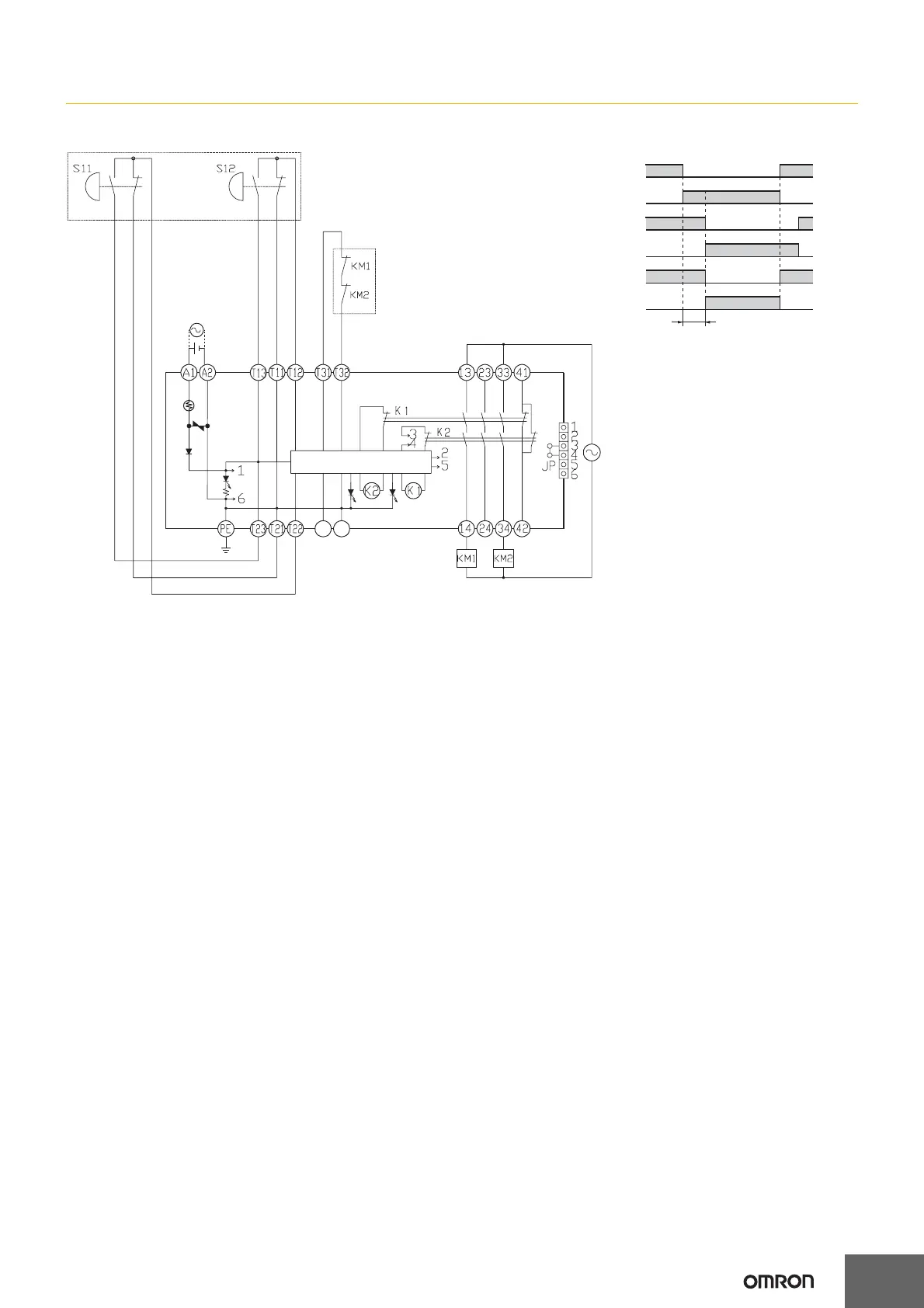

G9SA-TH301 (24 VDC) with 2-hand Inputs
CD
TH
SA
Feedback loop
S11 (NC)
S11 (NO)
Timing Chart
S12 (NC)
S12 (NO)
0.5 s max.
Control circuit
KM1 and KM2
(NC)
KM1 and KM2
(NO)
Input time difference operates only
when the difference is 0.5 s max.
S11, S12: Two-hand pushbutton switches
KM1 and KM2: Magnetic Contactor
Note: 1. Use a 1NC+1NO switch for S11
and S12.
2. This circuit achieves Safety
Category 4.

Omron G9SA Specifications

General

Rated Current	6A
Mounting Type	DIN Rail
Dimensions	90mm x 22.5mm x 100mm
Weight	Approx. 200g
Safety Category	Category 4
Rated Voltage	24 VDC
Operating Temperature	-10°C to 55°C
Contact Rating	6A at 250V AC
Electrical Life	100, 000 operations
Mechanical Life	10, 000, 000 operations
