Operational Overview

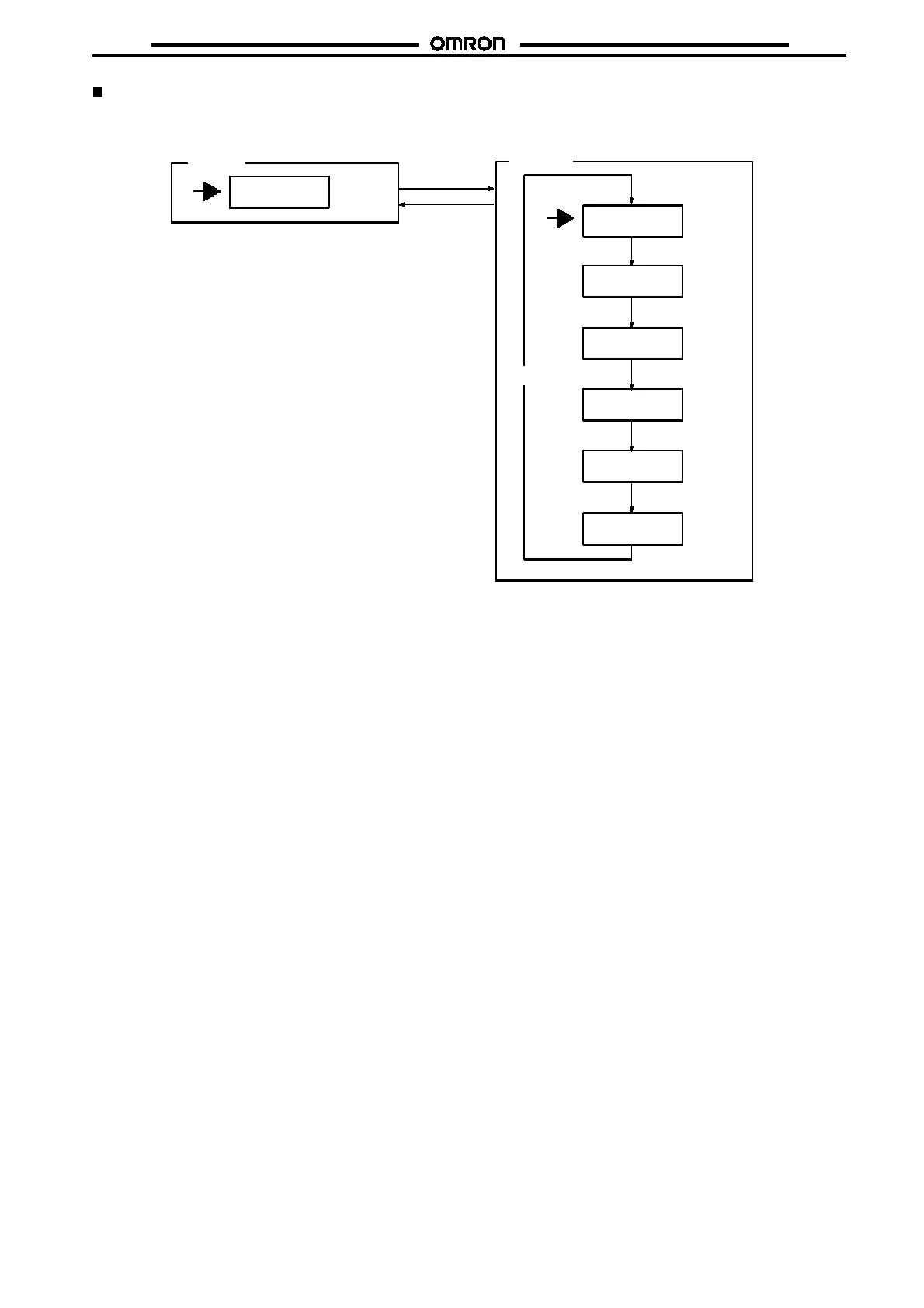

This flowchart shows operation common to all H5CR models. Refer to the following Setting Item Table for details
on the operation of specific models.
Run mode
Present value,
set value
Timing range
Key protect level
Input signal time
Output time
Output mode
UP/DOWN mode
Setting mode
Press the
DISPLAY key
Press the
MODE key
Press the
MODE key
Press the
MODE key
Press the
MODE key
Press the
MODE key
Press the
MODE key
Press the
MODE key
Note: 1. Set values are changed using the increment keys
(1 to 4).
2. The large arrows indicate the parameter displayed first
when the mode is changed with the MODE or DISPLAY
key.
3. *The key protection is not included in the H5CR-L.
*

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
