Omron H3BA User Manual

H5CR
H5CR
180

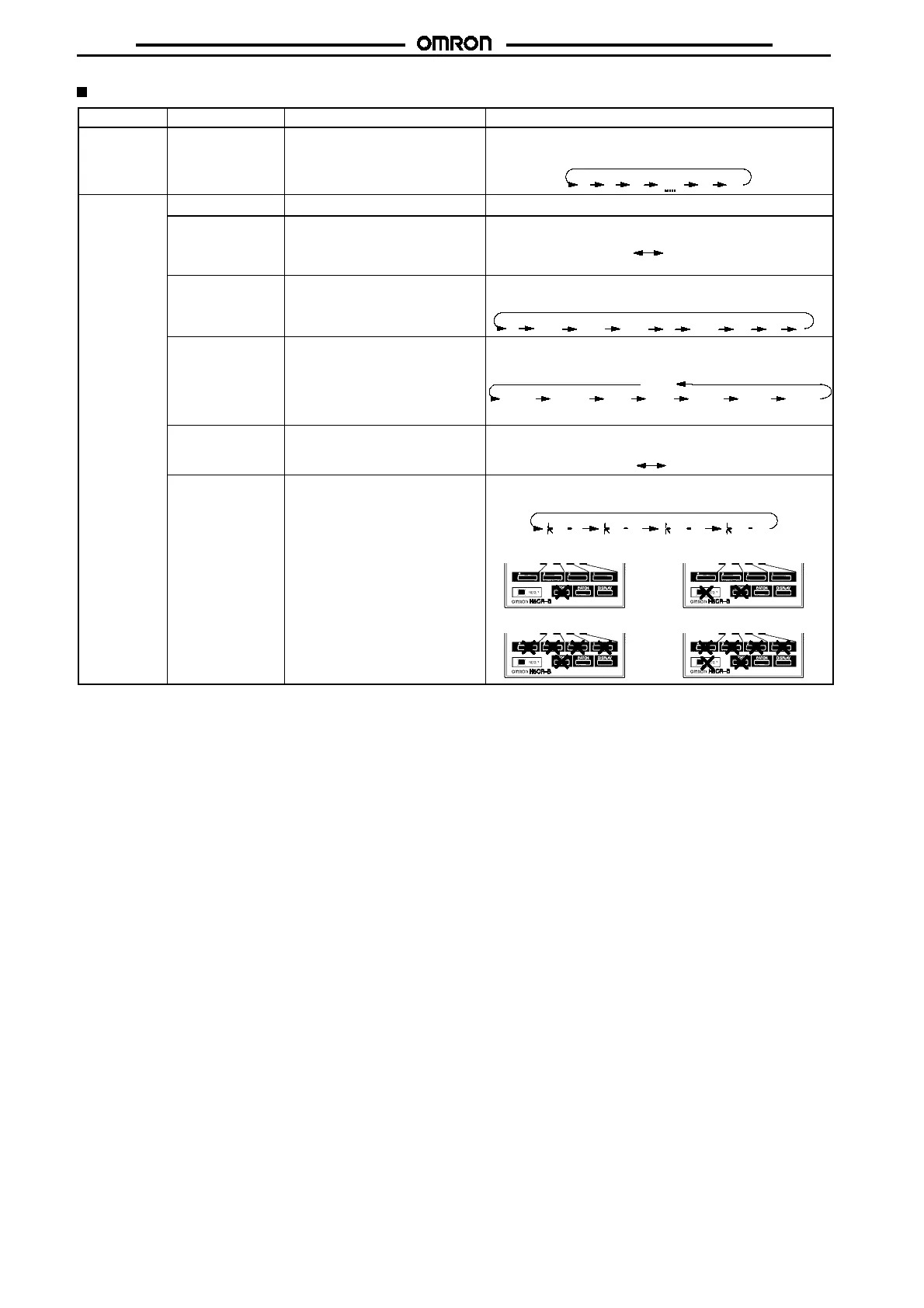

Setting Item Table
Mode Setting item Discription Setting procedure
Run mode Set value Compared to the present value.
Determines the timing of the
control output according to the
output mode.
Sequence when changing a digit using the incre-
ment
keys (1 to 4).
012 89
Setting mode Time range* Determines the timing range.
Change the timing range with the increment keys (1 to 4).
UP/DOWN mode Selects
Select UP/DOWN with the increment keys (1 to 4).
(UP) (DOWN)
ud
Output mode Determines the form of the control
output. (Refer to the present value
vs. output diagrams on page 9 to
11.)
S
equence w
h
en c
h
ang
i
ng t
h
emo
d
eus
i
ng t
h
e
i
ncrement
keys (1 to 4).
a a -- 1 a -- 2 a -- 3 b b -- 1 d e f
Output time Determines the duration of the
control output.
Will be displayed when the output
mode is A, A-1, A-2, A-3, b, or
b-1. Will not be displayed when
the output mode is d, E, or F.
Change the output time with the increment keys (1 to 4)
01
.s
1
s
05
.s
5
s
10
s
15
s
20
s
hold
Input signal time Changes the duration of the
control and reset input signals.
Change the duration with the increment keys (1 to 4).
(1 ms) (20 ms)
120
Key protect level Locks certain keys to prevent
accidental operation. The key
protection level, kP-1 to kP-4,
determines which keys are locked
when the key protection input is
ON. The locked keys are crossed
out in the diagram on the right.
Sequence when changing the key protect level using the
increment keys (1 to 4).
412 3
p
p p p
<KP--1> <KP--2>
<KP--3><KP--3>
Note: 1. Changes made in setting mode become effective when run mode is entered.
2. The time range setting appears first when setting mode is entered.
3. *The key protection function is not included in the H5CR-L.

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
