H5CR
H5CR
181

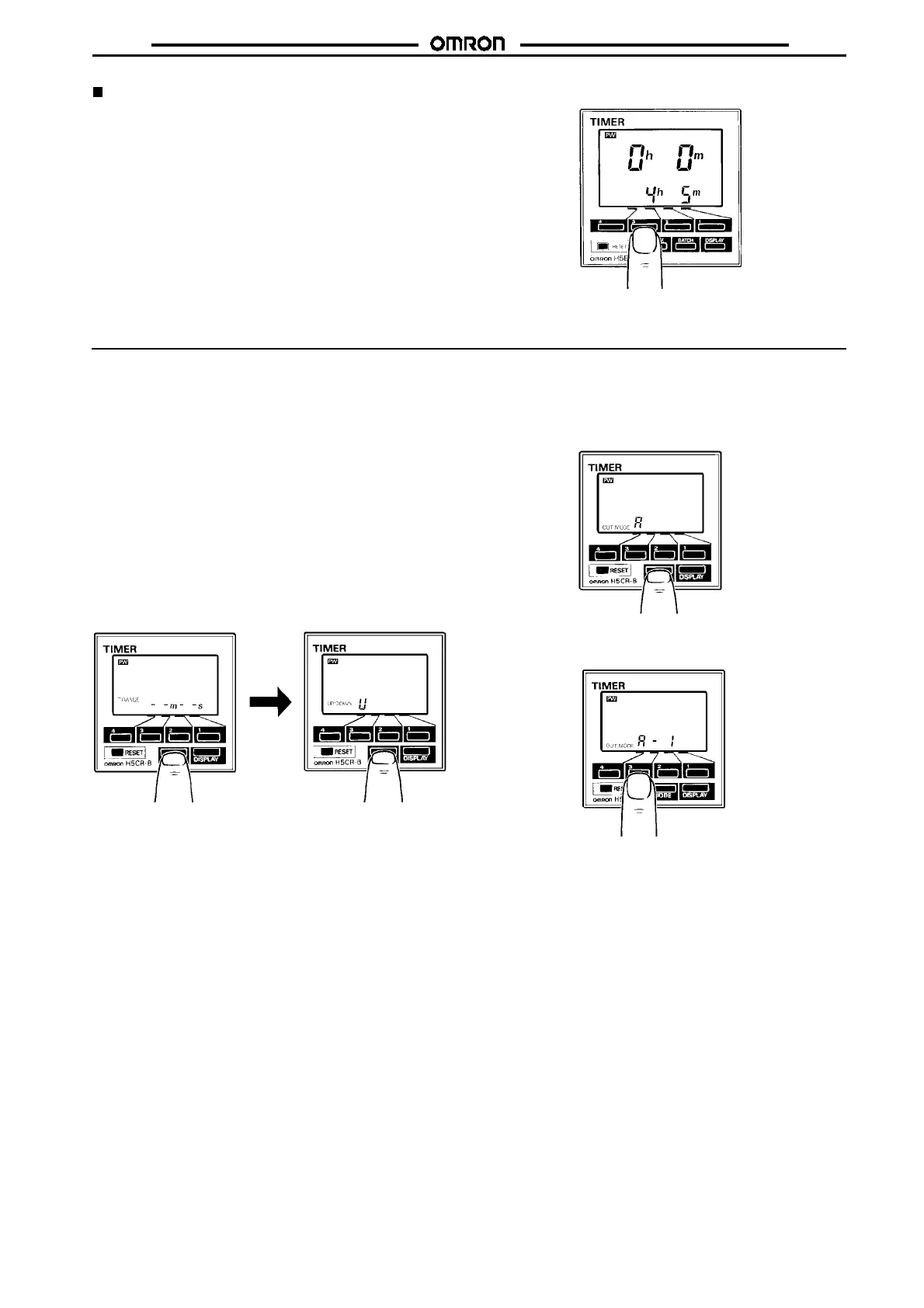

Examples
Run Mode
Changing the Set Value
Tochange theset value from 3 hr 5min to 4 hr5 min, press the 3 key
so that the number 4 appears in the hour’s place.
#
Pressing keys 1 through 4 increments the corresponding
column by 1.
#
The columns can be changed in any order, but the output will
be turned ON if the set value is less than the present value.
#
Nonsignificant zeros aresuppressed on theset valuedisplay.
Note: Read
Changing Set Values
in the
Precautions
section, pg.
15, before changing the Timer set value during operation.
Setting Mode
Changing Settings in the Set Mode
1. Press the MODE key to switch from run mode to set mode.
#
The Timer will continue operation if switched from run mode
to set mode during operation.
#
The MODE key will be locked if the key protection function is
enabled.
#
Settings changed in the set mode are not effective until run
mode is entered. As the operating conditions will change in
this case, always reset operation with the RESET key or a
reset input.
2. Press the MODE key to scroll successively through the items
that can be set.
3. Changing the selected item
#
Press the MODE key until the desired item appears
#
Change the item setting by pressing keys 1 through 4. (Press
the DISPLAY key to switch back from set mode to run mode.)

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
