Omron H3BA User Manual

H2A
H2A
223

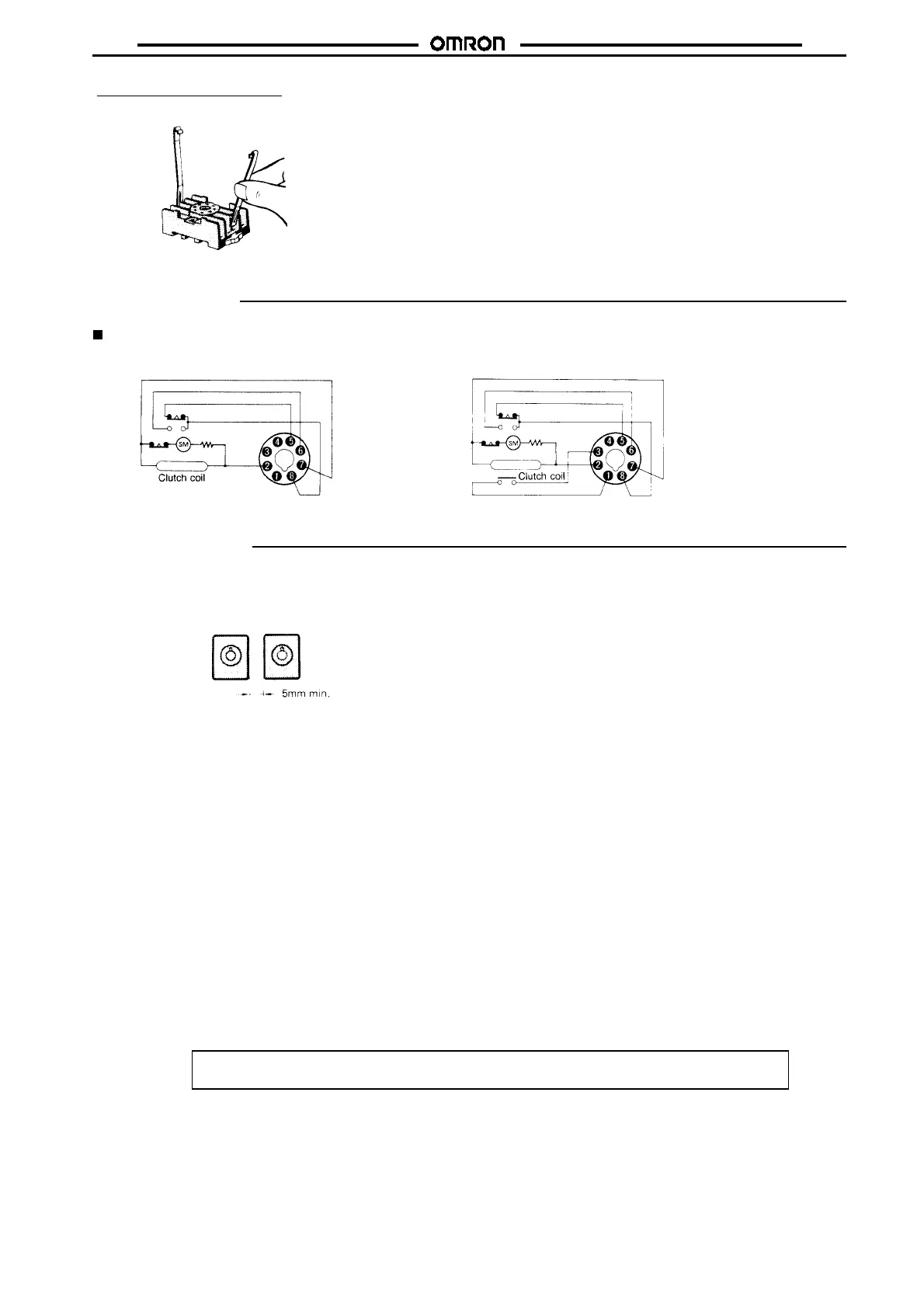

Hold-down Clips (Attached)
PHC-1 For PF085A
Installation
Terminal Arrangement
H2A H2A-H
Precautions
Mounting
When two or more timers are to be mounted in line, provide a dis-
tance of more than 5 mm between the two adjacent timers.
When two or more timers mounted in line are tobe continuously en-
ergized at the same time after the set time has elapsed, be sure to
limit the carry current to less than 1 A.
When using the timers at an ambient temperature of more than
40
"
C, be sure to reset the timers immediately after the set time has
elapsed.
Wiring
When wiring, employ a multi-core cable having a finished outer di-
ameter of less than 10.5 mm, or insulated (twisted) wires with less
thana3mmouterdiameter.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. L04-E1-8

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
