Omron H3BA User Manual

H2A
H2A
222

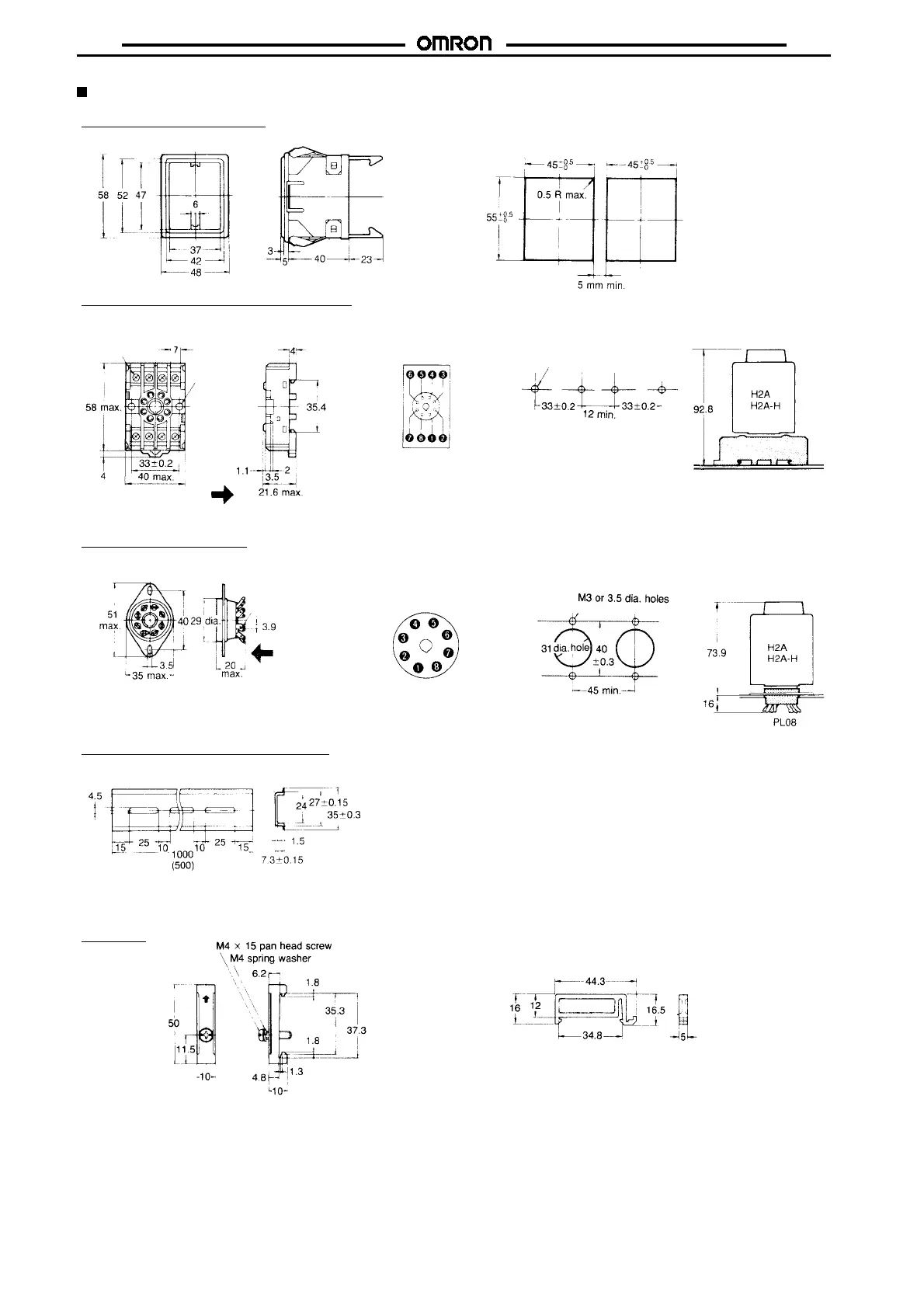

Accessories (Order Separately)
Track Mounted/Front Connecting Socket
PF085A
Mounting HolesTerminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
Adapter for Flush Mounting
Y92F-40
Panel Cutouts
Note: PF085A can be
used as a front
connectingsocket.
Back Connecting Socket
PL08 (Solder Terminals)
Mounting HolesTerminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
Mounting Track (Meets DIN EN50022)
PFP-100N/PFP-50N
(see note)
Note: This dimension applied to PFP-50N.
End Plate
PFP-M
PFP-S
Two, 4.5 dia.
holes
Eight, M3.5
'
7sems
Two, 4.5 dia. or M4 holes
Top View
Two, 2 dia. holes
Bottom View

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
