Omron H3BA User Manual

H5F
H5F
236

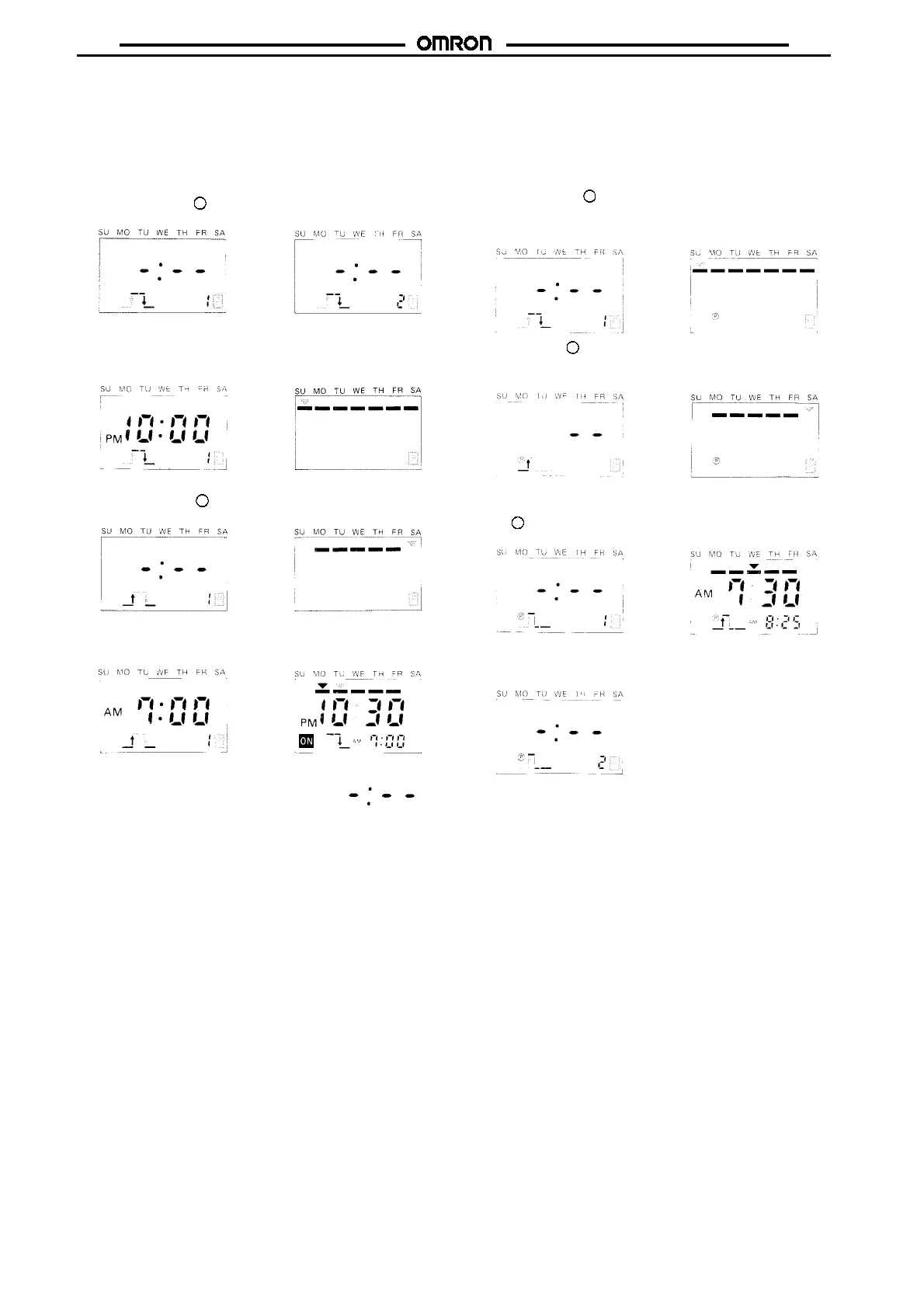

Multiple-day Operation
Example: ON at 10:00 p.m. each day from Monday to Friday
and OFF at 7:00 a.m. on the following day.
Display and key operation (shaded portion indicates blinking of
the indicator.)
5 Press the Mode Key to
set the Operation day
setting mode.
6 Set Sunday and Satur-
day as non-operation
days with the d and
Write Keys.
(Initial screen)
7 Press the Mode Key.
(The Run mode will be
set.)
2 Press the Write Key.
4 Press the Write Key. 8 (Displays the current
time and the next opera-
tion time.)
1 Set the time to 10:00 p.m.
with the h and m/ WD
Keys.
3 Setthetimeto7:00a.m.
with the h and m/ WD
Keys.
Note: If the initial display is different from that shown above,
press the Write Key several times until “ ”
appears.
P
P
Pulse Output Operation
Example: To turn on the output for 30s at 8:25 a.m., from
Monday to Friday. First set the Operation time set-
ting mode with the Mode Key.
Display and key operation (shaded portion indicates blinking of
the indicator.)
5 Use the d Key and Write
Key to specify Sunday
and Saturday as non-
operation days.
6 Press the Mode Key.
(The Run mode will be
set.)
(Initial screen)
2Pressthem/ Keyto
set a pulse width of 30 s.
Press the Write Key.
4 Press the Mode Key to
set the operation date
setting mode.
7 (Displays the current
time and the next opera-
tion time.)
1 Press the TMR/ key to
specify the pulse opera-
tion.
3 SettheOntimeto8:25
a.m., by using the h and
m/ WD Keys. Press
the Write Key.
Note: The initial display may be different from that shown
above,but disregardthisandcontinuethekeyoperation.
P
P
P

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
