Omron H3BA User Manual

H5L
H5L
262

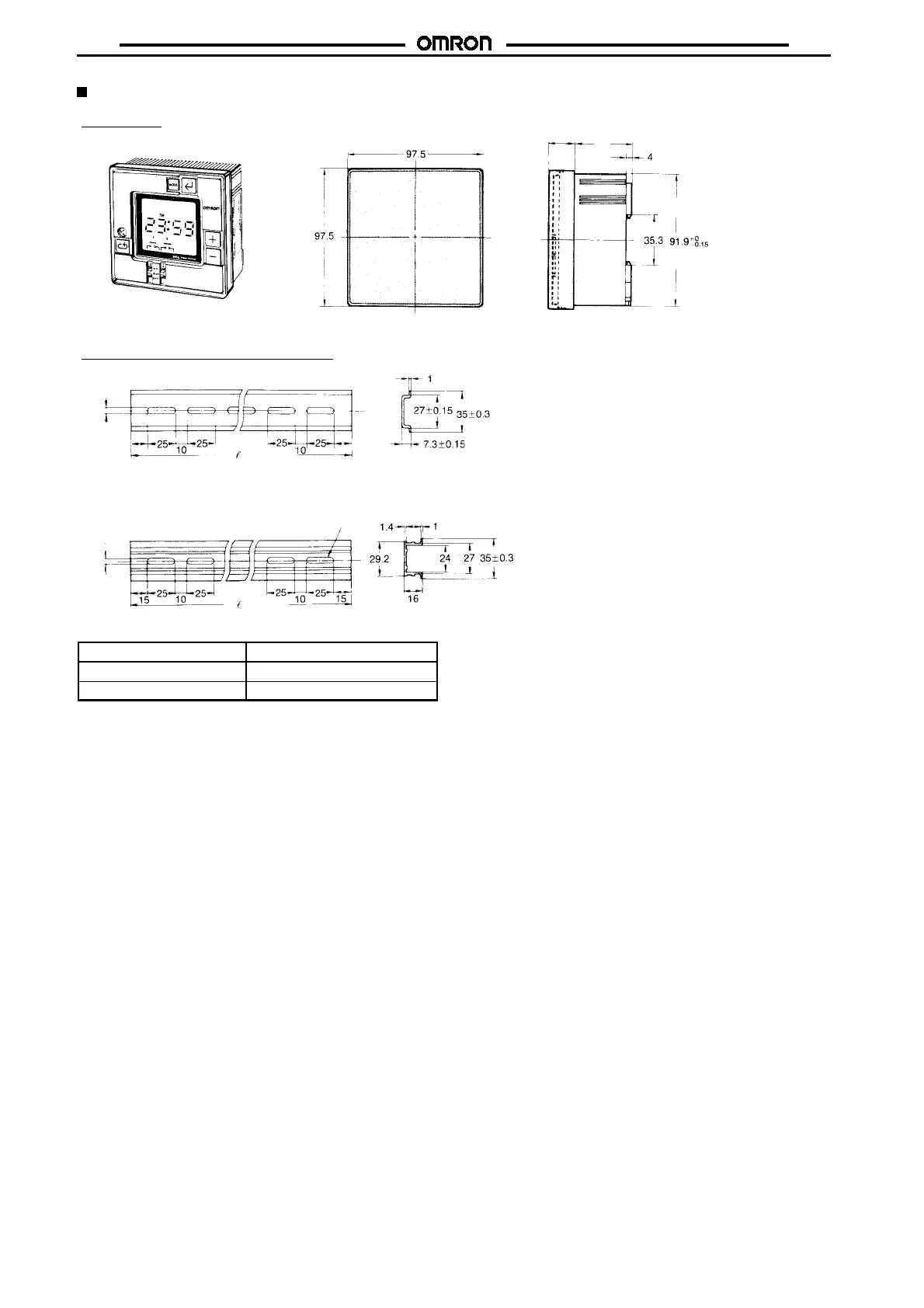

Accessories (Order Separately)
Front Cover
Y92A-96A
42
16
Mounting Track (Meets DIN EN 50022)
PFP-100N/PFP-50N
PFP-100N2
Twelve,-25
'
4.5 elliptic holes (See note 2)
(See note)
(See note 2)
(See note)(See note)
Note: 1. This dimension is 15 mm on bothends inthe
case of the PFP-100N but on one end in the
case of the PFP-50N.
2. The length
l
of each mounting track is shown
in this table.
3. A total of twelve 25 x 4.5 elliptic holes are
provided, with six holes cut fromeach end of
the track at a pitch of 10 mm between holes.
PFP-100N
1m
PFP-50N 50 cm
PFP-100N2 1m

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
