H3BA
H3BA
285

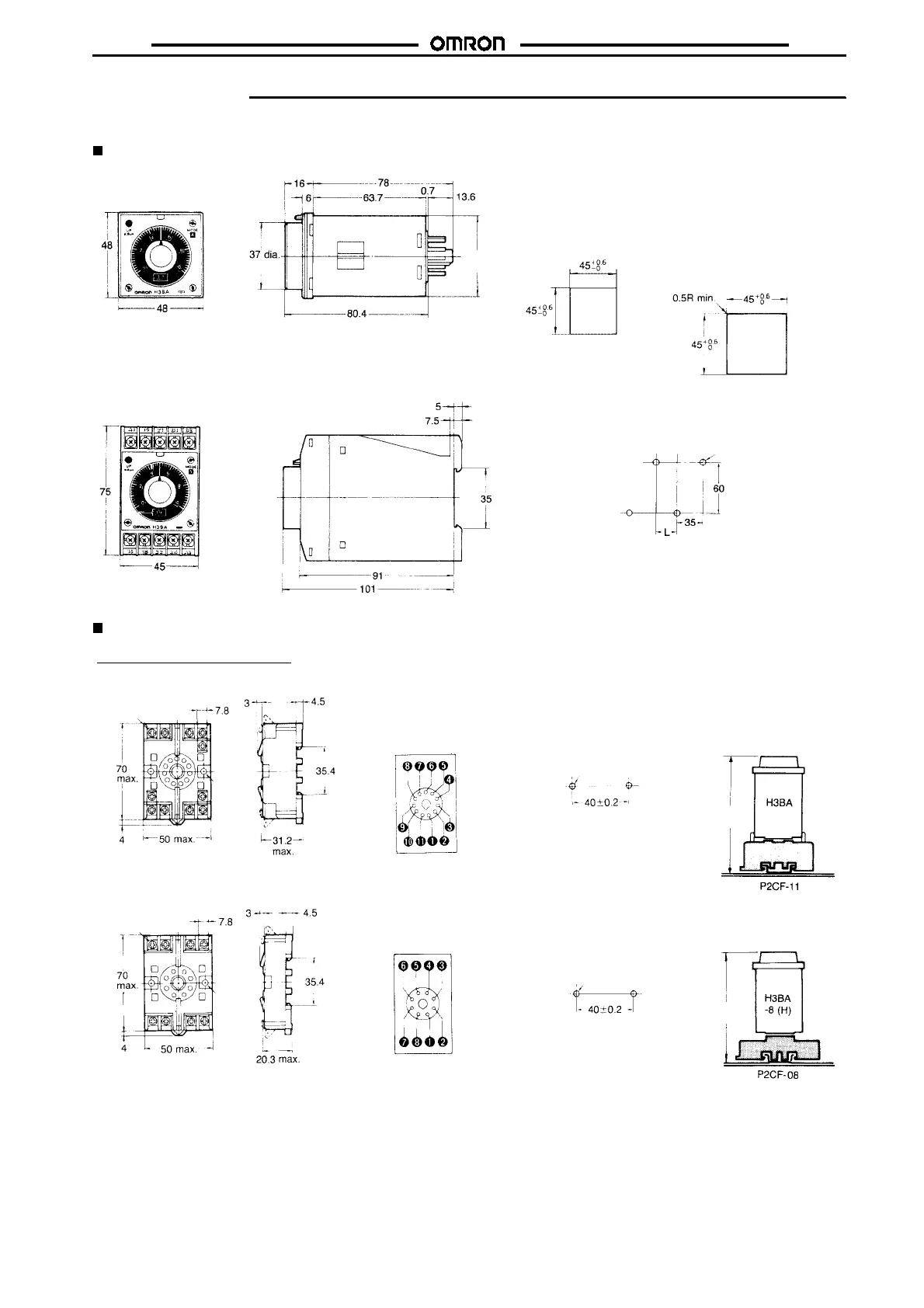

Dimensions
Note: All units are in millimeters unless otherwise indicated.
Timers
H3BA-A/-8(H)
Mounting Holes
Note: When mounting two or more timers in
line, dimension L between twoadjacent
timers should be 10 mm min.
H3BA-FA
Two, 4.5 dia. or M4 holes
Panel Cutouts
When mounting a
single unit
t=1to3.2mm
Horizontally connecting n units
No front cover:
N = (48n -- 2.5)
+1
/
-- 0
With front cover:
N = {48n -- 2.5 + (n -- 1) x 3}
+1
/
-- 0
(N)
44.8
x44.8
Accessories (Order Separately)
Mounting Holes
Note: P2CF-11can beused
as a front connecting
socket.
Track/Front Mounting Socket
P2CF-11
Terminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
Two, 4.5 dia.
mounting holes
Two,
4.5 dia.
holes
Eleven, M3.5 x 7.5
sems
P2CF-08
Two,
4.5 dia.
holes
Two, 4.5 dia. or
Two, M4
Eight, M3.5 x 7.5
sem
Mounting HolesTerminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
Note: P2CF-11can beused
as a front connecting
socket.
113.2
102.3

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
