Omron H3BA User Manual

H3BA
H3BA
286

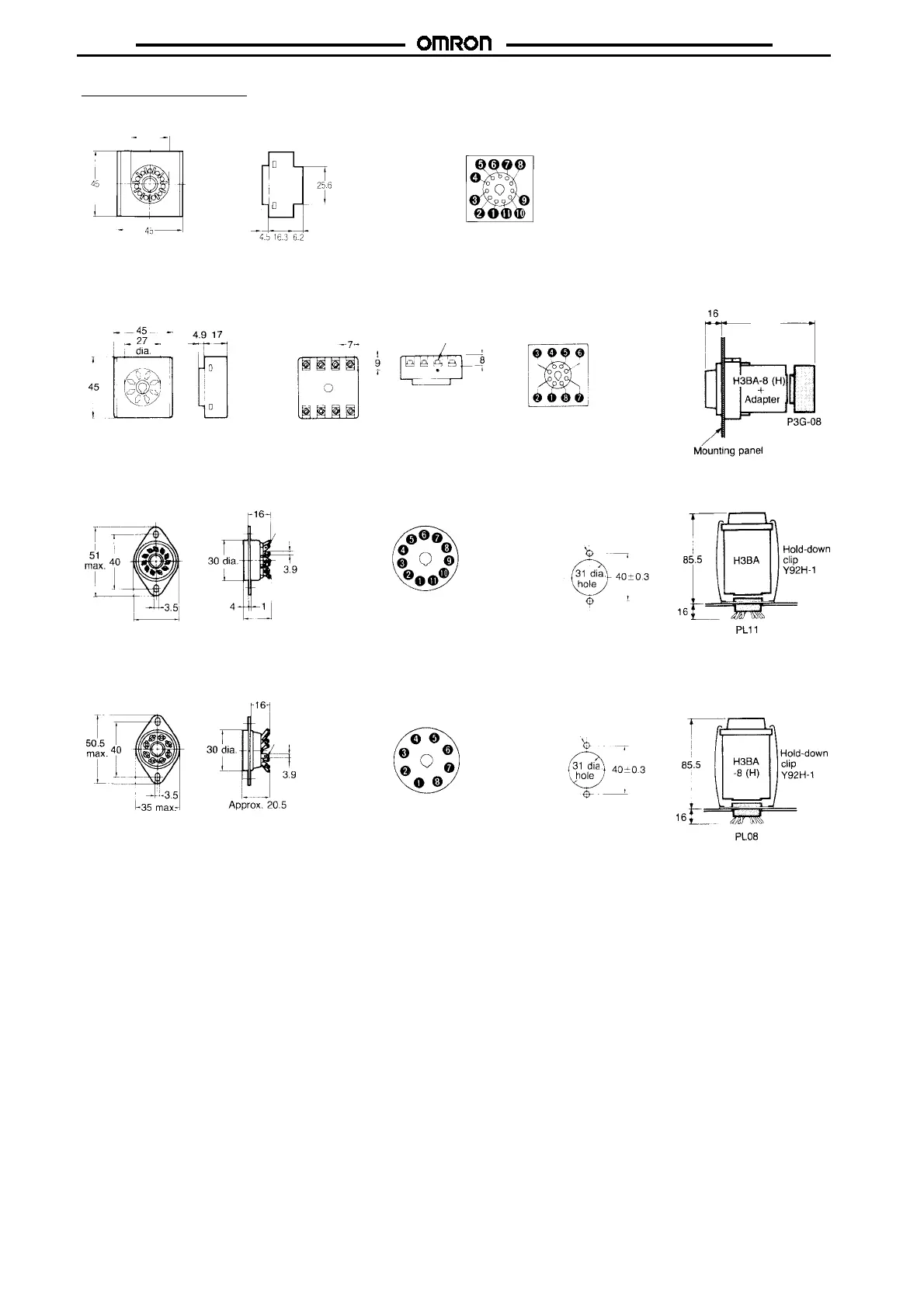

Back Connecting Socket
P3GA-11
Terminal Arrangement
(Bottom View)
Terminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
P3G-08
Mounting HolesTerminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
PL11
Approx. 20.5
Two, 3.5 dia. or M3
socket mounting holes
Two, 2 dia. holes
M3.5
35 max.
Two, 2 dia.
holes
Mounting HolesTerminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
PL08
Two, 3.5 dia. or M3
socket mounting holes
27 dia.
86.3

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
