Omron H3BA User Manual

H3BA
H3BA
287

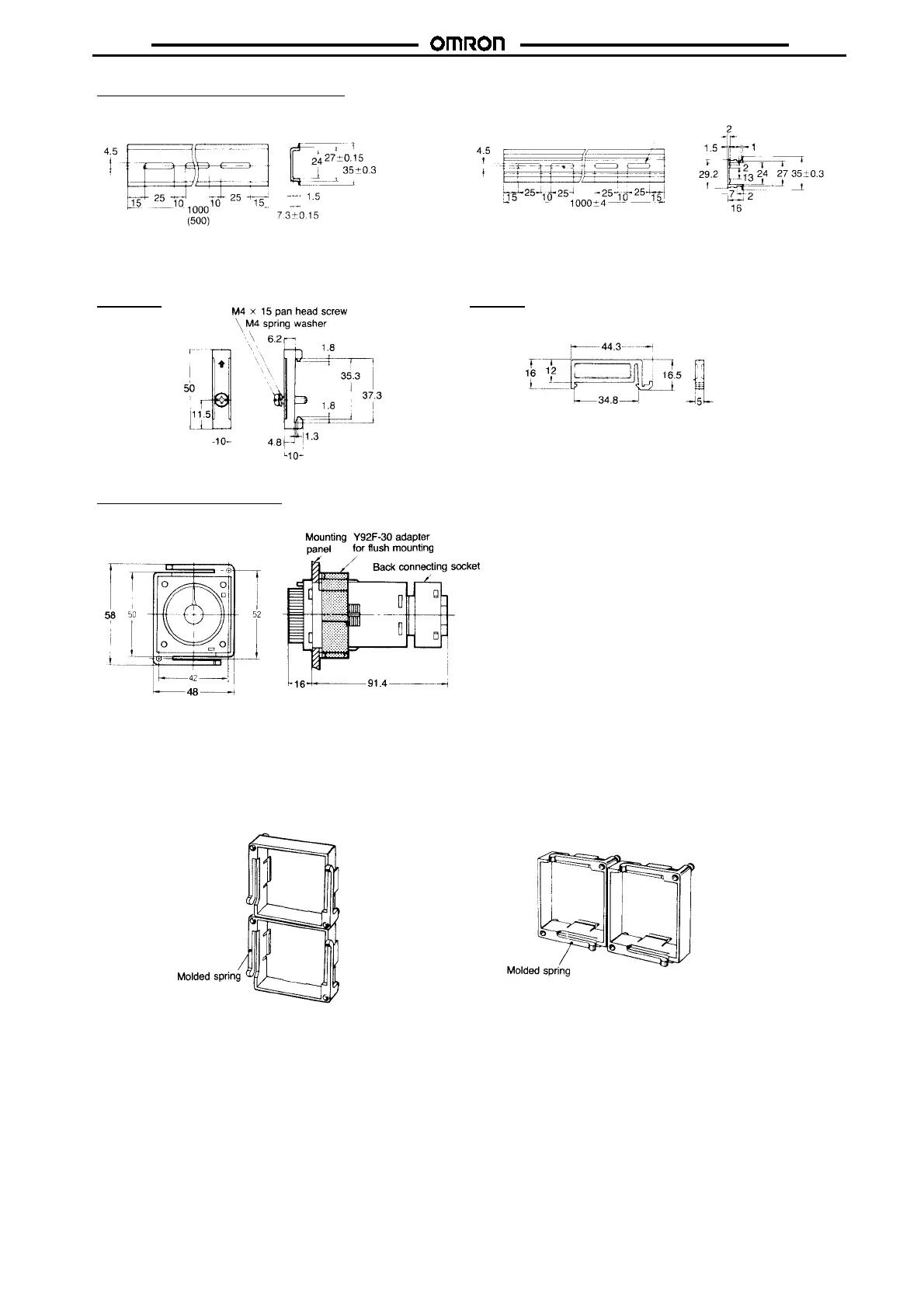

Mounting Track (Meets DIN EN50022)
PFP-100N/PFP-50N
PFP-100N2
Twelve, 25
'
4.5 elliptic holes (see note)
(see note)
Note: This dimension applied to PFP-50N. Note: A total of twelve 25 x 4.5 elliptic holes are provided with 6
holes cut from each rail end at a pitch of 10 mm between
holes.
End Plate
PFP-M
Spacers
PFP-S
Adapter for Flush
Mounting
Y92F-30
Note: Pay attention to the orientation of the adapter when
mounting two ormoretimersinaverticalorhorizontalline.
When mounting two or more timers in a vertical line,
arrange all the adapters so that their molded springs
are positioned on the right and left sides.
When mounting two or more timers in a horizontal
line, arrange all the adapters so that their molded
springs are positioned on the top and bottom sides.

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
