Omron H3BA User Manual

H3BA
H3BA
288
Y92F-70
Recommended panel thickness: 1 to 3.2 mm.
Y92F-71
Recommended panel thickness: 1 to 3.2 mm.
Two, 4.5 dia.
for adapter

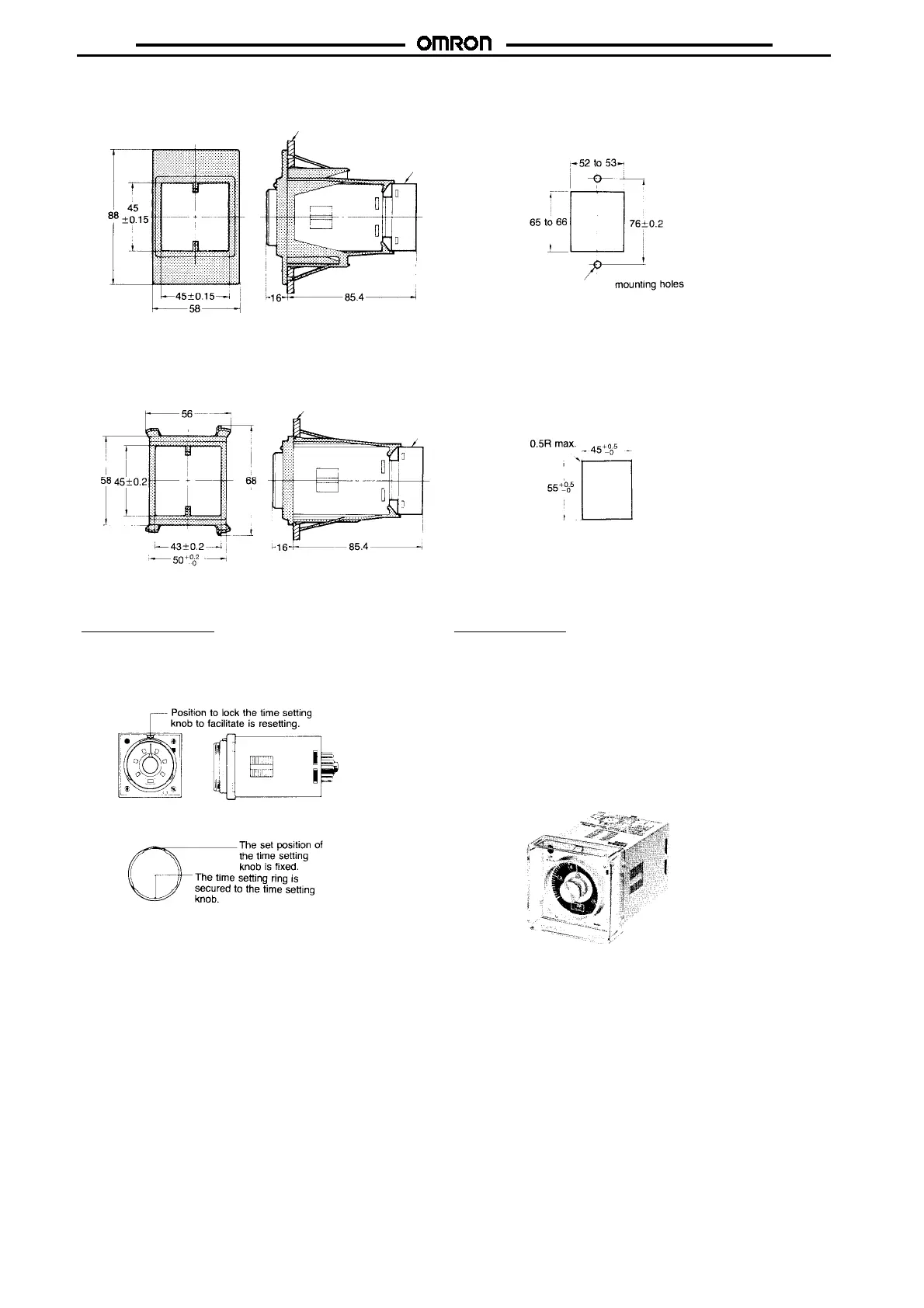

Panel Cutout
Panel Cutout
Note: With H3BF-8, dimension should read as 16.7 mm.
Note: With H3BF-8, dimension should read as 16.7 mm.
P3G-08
Connecting
socket
P3G-08
Connecting
socket
Panel
Panel
Protective Cover
Y92A-48B
The protective cover protects the front panel, particularly the time
setting section, against dust, dirt and water. It also prevents the
set value from being altered due to accidental contact with the
time setting knob.
Note: 1. TheY92A-48B ProtectiveCoverismadeofahardplastic
and therefore it must be removed to change the timer set
value.
2. The Protective Cover cannot be mounted if the Panel
Cover (sold separately) is used on the Timer.
Timing Setting Ring
Y92A-Y1
When setting a given time for a single timer unit, use of
the time setting ring facilitates the time setting operation
and minimizes possible setting errors by operators.

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
