Omron H3BA User Manual

H3BA
H3BA
289
Installation

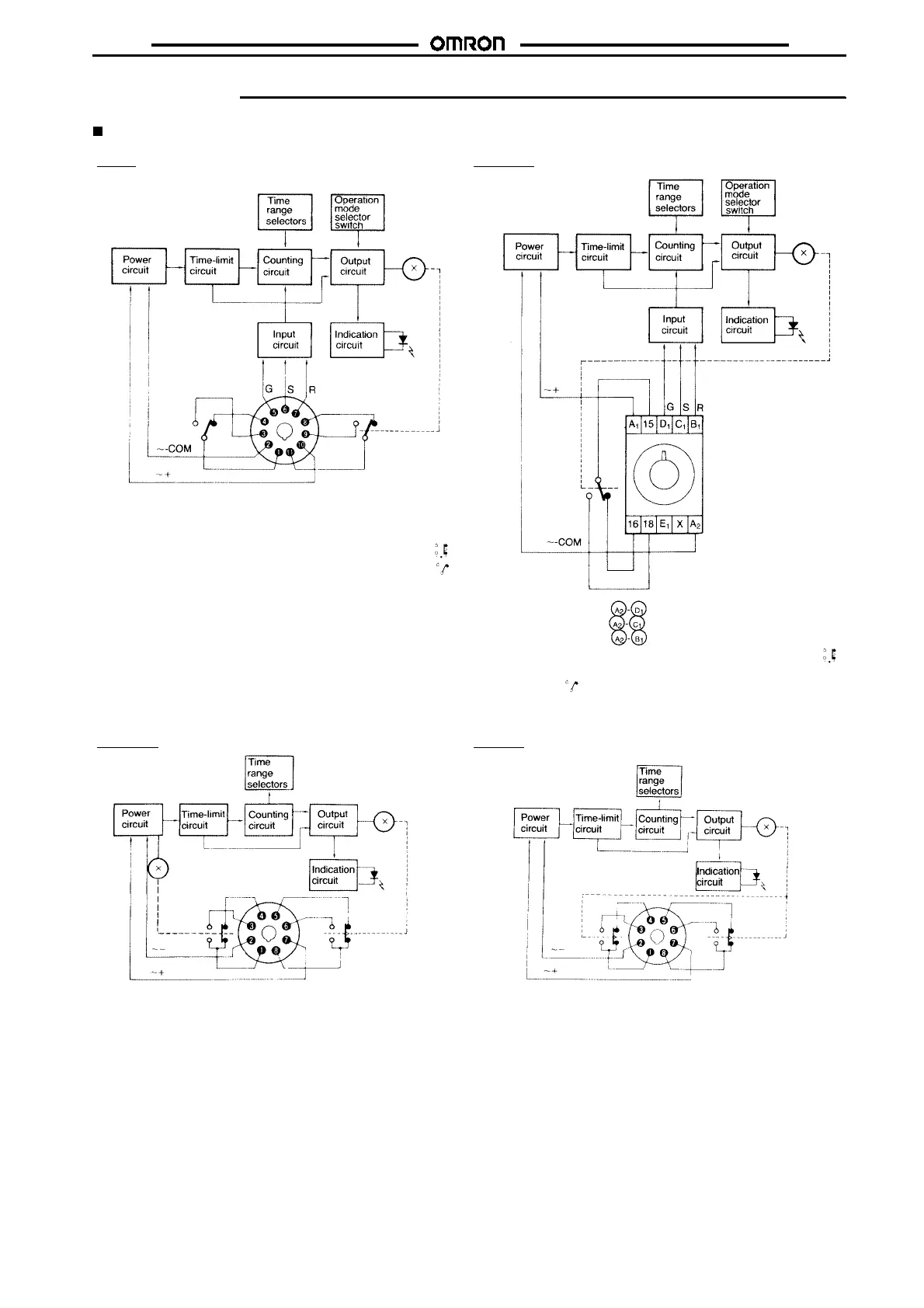

Terminal Arrangement
H3BA H3BA-FA
Note: 1. *G: Gate:
B
--
E
*S: Start:
B
--
F
*R: Reset:
B
--
G
2. Conventional time-limit contactsare symbolizedas .
However, the contacts of H3BA are symbolized as
because timer has four operation modes.
Refer to
“Application Examples”
.
Note: 1. *G: Gate:
*S: Start:
*R: Reset:
2. Conventional time-limit contacts are symbolized as .
However, the contacts of H3BA-FA are symbolized
as because timer has four operation modes.
Refer to
“Application Examples”
.
(See
note 2)
** *
(See
note 2)
** *
(See
note 2)
H3BA-8H H3BA-8

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
