H3CT
H3CT
323
Operation
Basic Operation
Time Unit Selection
The desired time unit can be selected with the time unit selector lo-
cated at lower-left corner of the front panel.
Time Scale Selection
The scale is selected with the time scale selector at thelower-right
corner of the front panel.

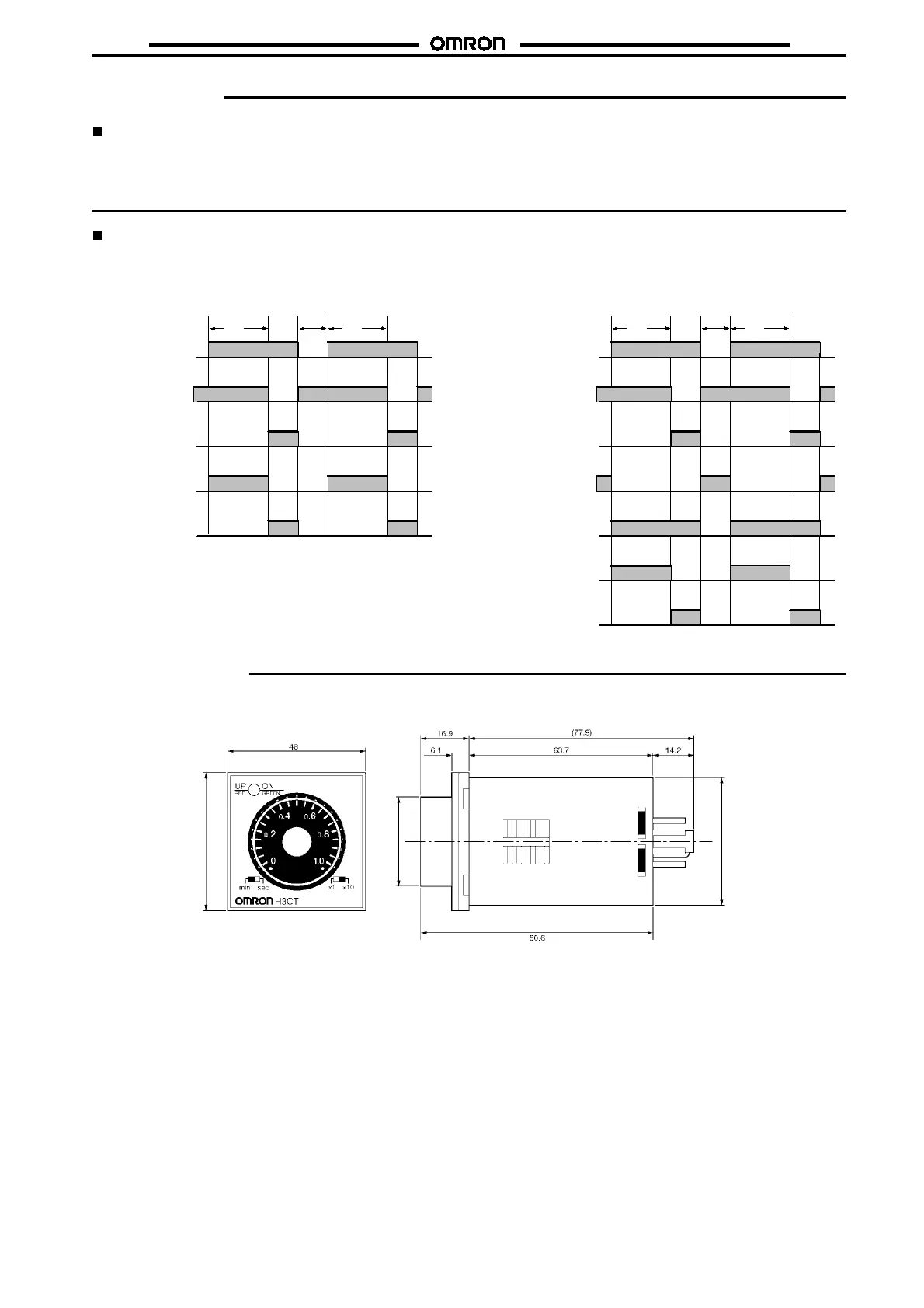

Timing Charts
Note: 1. The minimum power-operating time, “Rt,” is 0.1 s.
2. The “t” in the timing charts stands for the set time.
H3CT-8A H3CT-8H
t
Rt
t
Power 2 to 7
NC8to5
NO8to6
Indicator G
Indicator R
t
Rt
t
Power 2 to 7
NC8to5
NO 8 to 6
Indicator G
Indicator R
NC1to4
NO 1 to 3
Dimensions
Note: All units are in millimeters unless otherwise indicated.
44.8
31
48
H3CT-8A/-8H

Omron H3BA Specifications

General

Time Range	0.05 s to 300 h
Output Type	Relay
Contact Form	DPDT
Weight	Approx. 200 g
Operating Temperature	-10 to 55°C
Storage Temperature	-25 to 65°C
Dimensions	48mm x 48mm x 78mm
Type	Solid-state timer
