Omron H3CR-A User Manual

H3CA
H3CA
122
Others
Holding relays are used for outputs on the H3CA-A Series. Drop-
ping the Unit or otherwise subjecting it to shock can cause the relay
to reverse or to move to the center position.

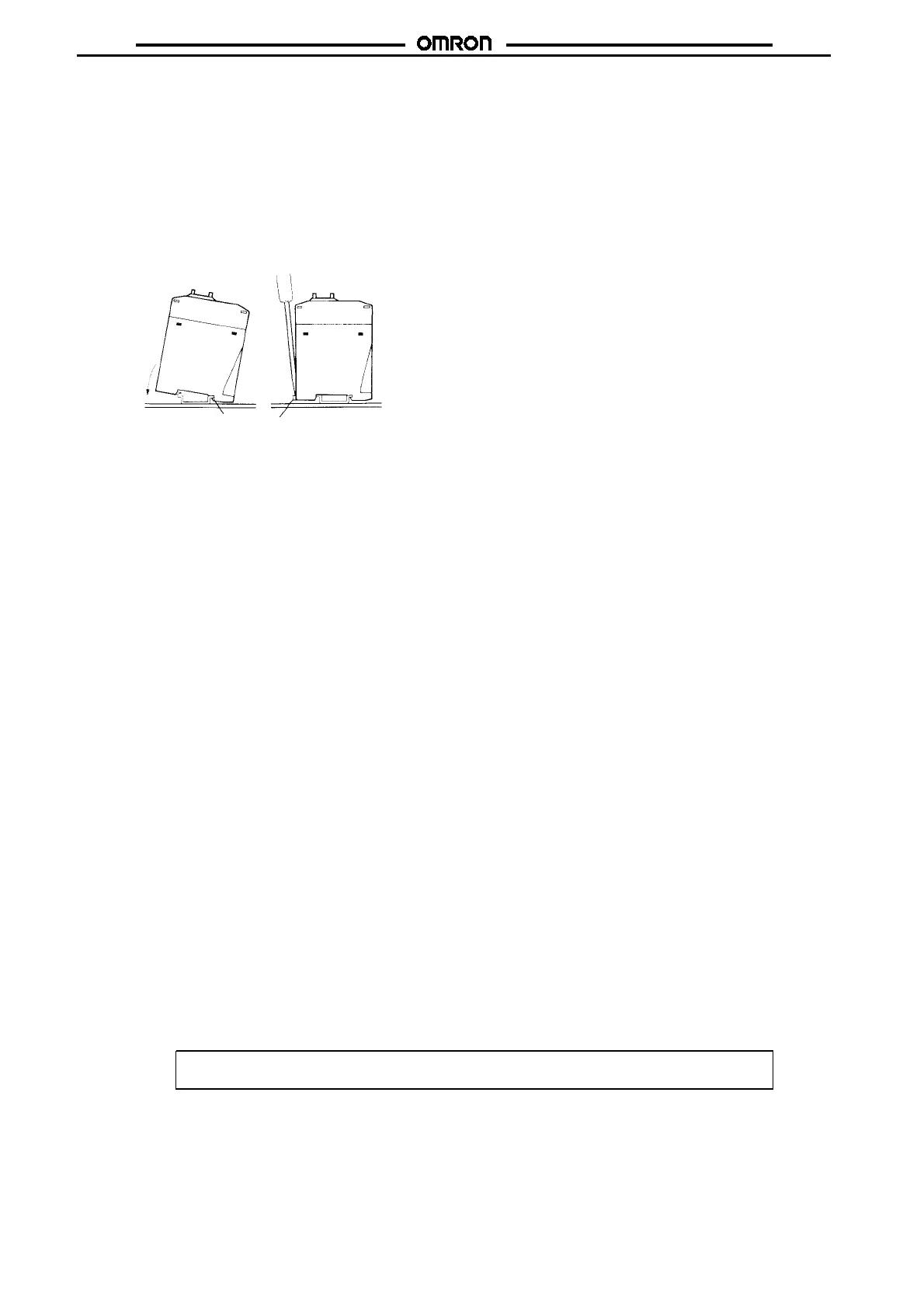

How to Mount the Timer on Mounting Track
When mounting a H3CA-FA Timer on a socket mounting track, ob-
serve the following procedures:
Mounting
First hook portion A of the timer to an edge of the track and then de-
press the timer in direction B.
B
A
C
Dismounting
Pull out portion C with a round-blade screwdriver and remove the
timer from the mounting track.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. L32-E1-6

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
