H3M
H3M
134

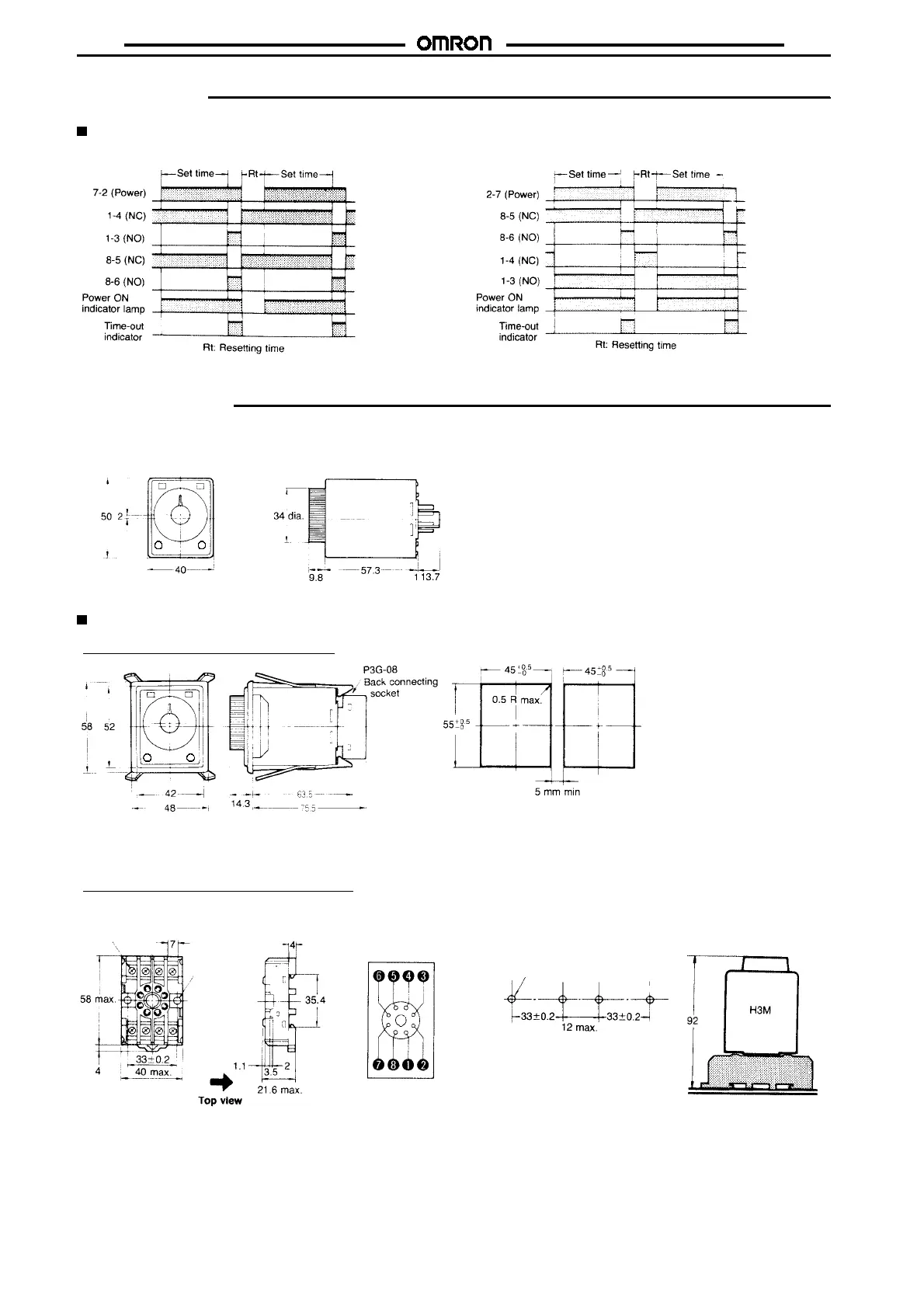

Operation
Timing Chart
H3M H3M-H
Dimensions
Note: All units are in millimeters unless otherwise indicated.
H3M(-H)
Accessories (Order Separately)
Y92F-40 Adapter with Flush Mounting
Note: When two or more timers mounted in line are to be continuously energized at the same time after the lapse of
theset time,besuretolimitthecarry currenttoless than1A. Whenusing thetimers atan ambienttemperature
of more than 40
"
C, be sure to reset the timers immediately after the set time has elapsed.
Track Mounted/Front Connecting Socket
PF085A
Terminal Arrangement
(Top View)
Mounting Holes Mounting Height of
Timer with Socket
Eight, M3.5
'
7sems
Two, 4.5 dia.
holes
Four, 5 dia. or M4 holes
Note: PF085A can be used as a
front connecting socket.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
