Omron H3CR-A User Manual

H3M
H3M
135
P2B

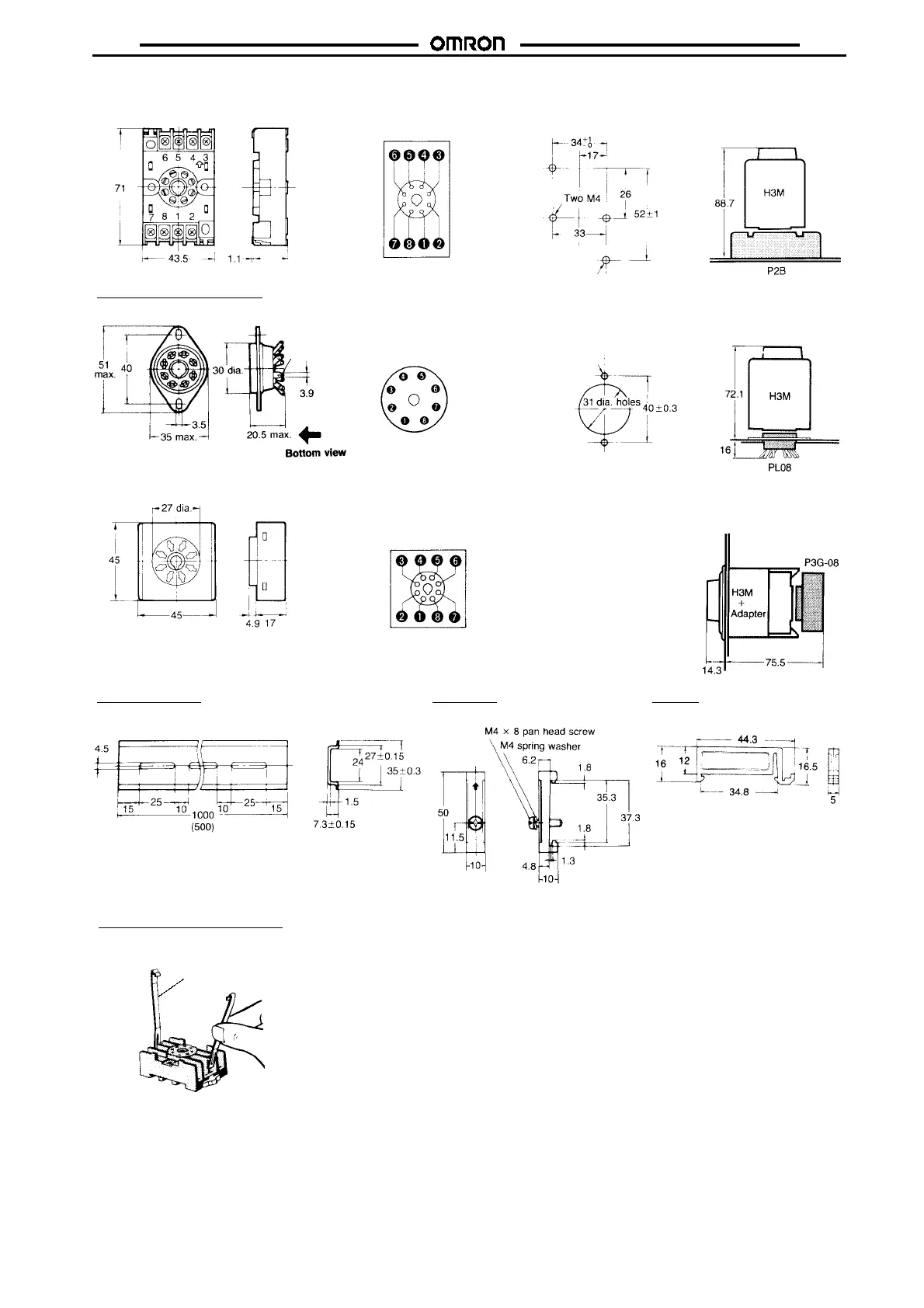

Terminal Arrangement
(Top View)
Mounting Holes Mounting Height of
Timer with Socket
Two, M4
P3G-08
Terminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
Two, 3.5 dia. or M3
socket mounting
holes
Two, 2 dia.
holes
Terminal Arrangement
(Bottom View)
Mounting Holes Mounting Height of
Timer with Socket
Back Connecting Socket
PL08
Mounting T
rack
PFP-100N/PFP-50N
End Plate
PFP-M
Note: This dimension applies to PFP-50N.
Spacer
PFP-S
(See note)
Hold-down Clips (Attached)
PHC-1 For PF085A
F-fook

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
