Omron H3CR-A User Manual

H5AN
H5AN
190

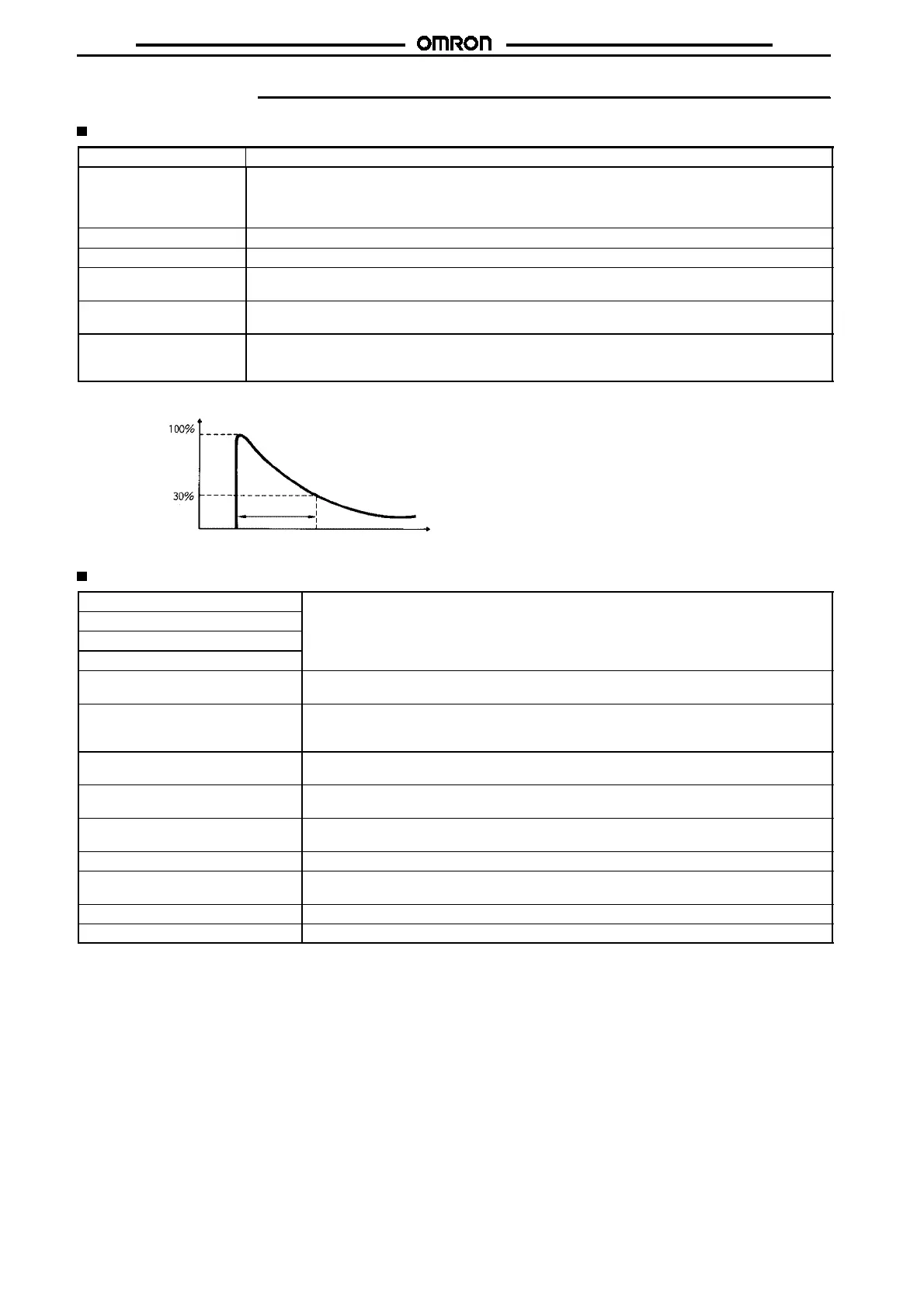

Specifications
Ratings
Item H5AN-4D/H5AN-4DM
Rated supply voltage H5AN-4D: 100 to 240 VAC (50/60 Hz),
12 to 24, 48, or 100 VDC (permissible ripple: 20% max.)
H5AN-4DM: 100 to 240 VAC (50/60 Hz)
12 to 24 VDC (permissible ripple: 20% max.)
Operating voltage range 85% to 110% of rated supply voltage
Power consumption Approx. 10 VA (at 240 VAC, 50 Hz), approx. 5 W (at 24 VDC)
Resetting system and
gate input
Reset by power-OFF: min. power OFF time: 0.5 s
External reset or gate (common to contact and solid-state inputs): min. reset input signal width: 0.02 s
Control outputs Contact output: SPDT, 3 A at 250 VAC, resistive load (cos
%
=1)
Solid-state output: Open collector, 100 mA max. at 30 VDC max.
Power supply for
externally connected
components
12 VDC
!
10%, 80 mA (permissible ripple: 5% max.)
Note: Inrush current was measured within the range shown below.
Peak value
Inrush current
Measurement
time
Time
Characteristics
Accuracy of operating time
!
0.01%
!
0.05 s max. (power OFF start),
!
0.005%
!
0.03 s max. (reset start) (see note)
Setting error
Influence of voltage
Influence of temperature
Insulation resistance 100 M
$
min. (at 500 VDC) (between current-carrying terminal and exposed non-current
carrying metal parts, between non-continuous contacts)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min (between current-carrying and non-current-carrying metal
parts)
750 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Vibration resistance Destruction: 10 to 55 Hz with 0.75-mm double amplitude
Malfunction: 10 to 55 Hz with 0.5-mm double amplitude
Shock resistance Destruction: 300 m/s
2
(approx. 30G)
Malfunction: 100 m/s
2
(approx. 10G)
Ambient temperature Operating: --10
"
Cto55
"
C
Storage: --25
"
Cto65
"
C
Ambient humidity Operating: 35% to 85%
Life expectancy Mechanical: 10,000,000 operations min. (under no load at 1,800 operations/h)
Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load)
Approved standards UL (File No. E41515), CSA (File No. LR22310)
Weight Approx. 360 g
Note: This value denotes the average of the repeat accuracy, setting error, and variations due to voltage and temperature changes. It in-
cludes the rise time of the power supply, and the operating time of the internal and output circuits.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
