H5AN
H5AN
191

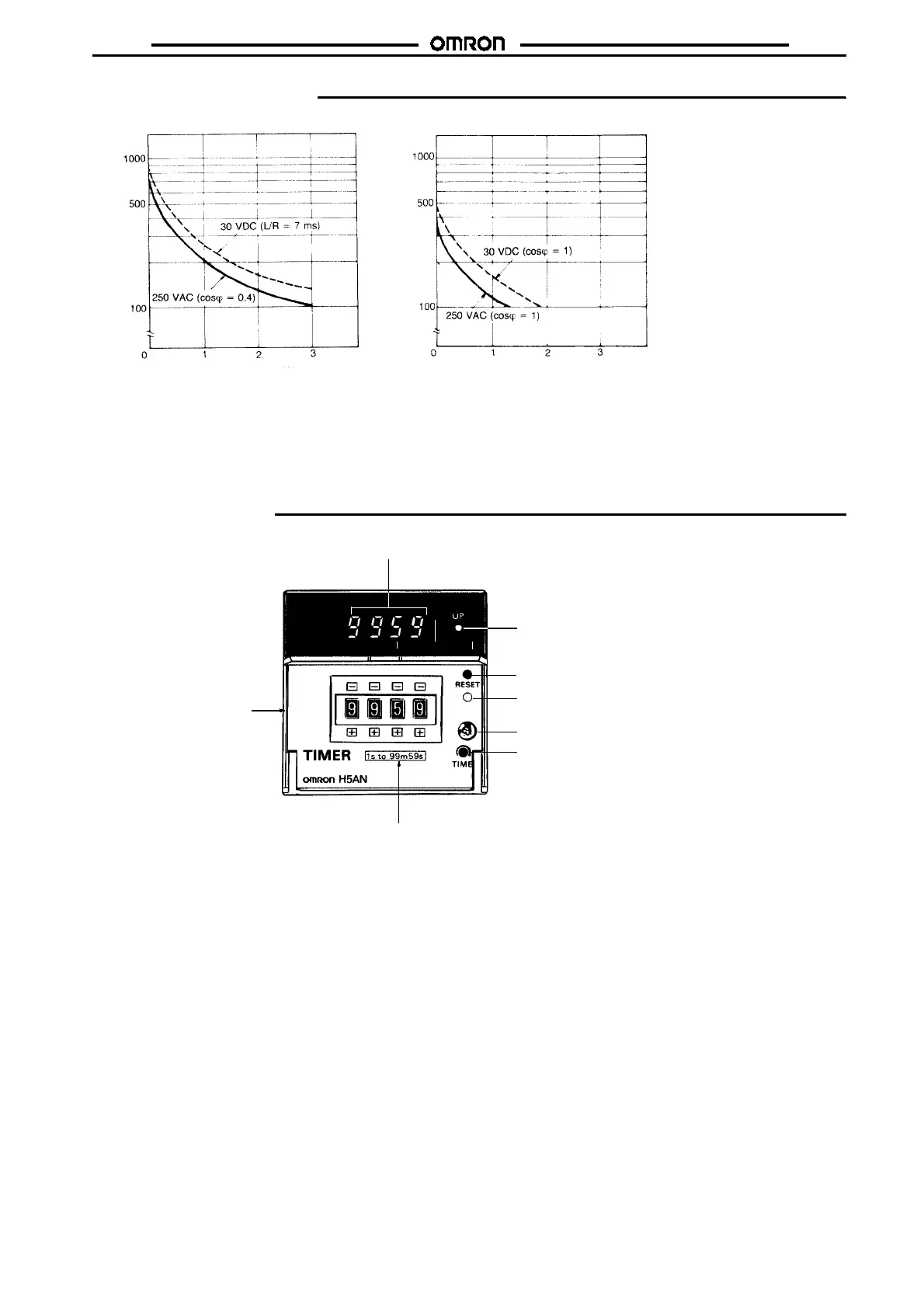

Engineering Data
Switching operations (x 10 )
3
Load current (A)
Switching operations (x 10 )
3
Load current (A)
Reference: A maximum current of 0.15 A can be switched at 125 VDC (cos
%
=1).
Maximum current of 0.1 A can be switched if L/R is 7 ms. In both cases,
a life of 100,000 operations can be expected.
The minimum applicable load is 10 mA at 5 VDC (P reference value).
Nomenclature
7-segment LED display
Front cover
Time-up indicator
Rated time label affixing section
(when a rated time label of
99 min 59 s is affixed)
Reset input indicator
Pushbutton switch for manual reset
Internal unit fixing screw
One-shot time adjustment screw
