Omron H3CR-A User Manual

H5CN
H5CN
203

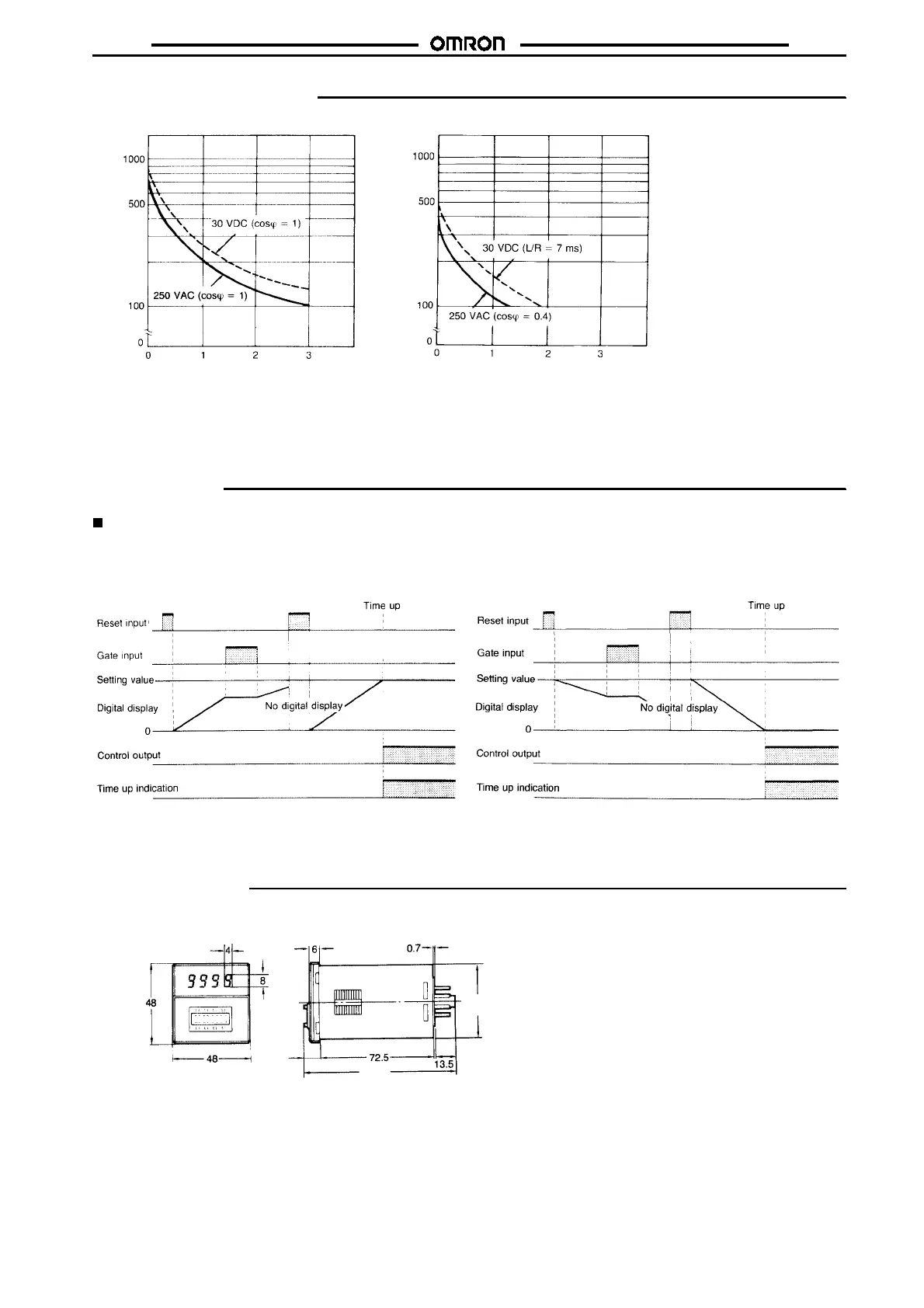

Engineering Data
Switching operations (x 10 )
3
Load current (A)
Switching operations (x 10 )
3
Load current (A)
Reference: A maximum current of 0.15 A can be switched at 125 VDC (cos
%
= 1). Maximum current of 0.1 A can
be switched if L/R is 7 ms. In both cases, a life of 100,000 operations can be expected.
The minimum applicable load is 10 mA at 5 VDC (P reference value).
Operation
Timing Chart
Digital Display
UP Display DOWN Display
Note: For the models without digital display, an IN indicator (LED) is provided to indicate power application. (This LED, however, goes off
when the reset input is applied.)
Dimensions
Note: All units are in millimeters unless otherwise indicated.
10.9
97.6
44.8 x 44.8

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
