Omron H3CR-A User Manual

H5CN
H5CN
204

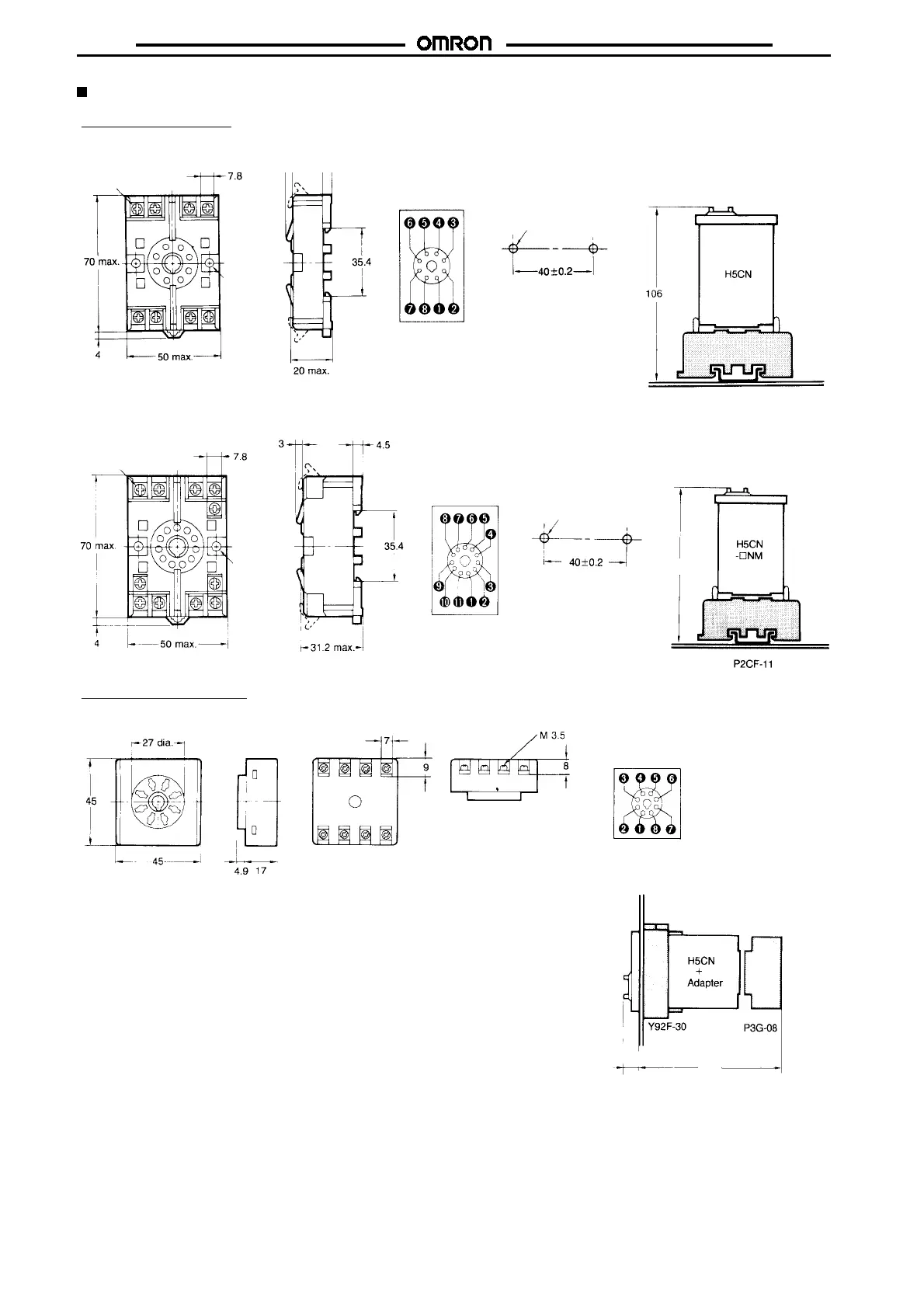

Accessories (Order Separately)
Track Mounted Socket
P2CF-08
Two, 4.5 dia.
holes
Two, 4.5 dia. holes or M4
Eight, M3.5 x 7.5
Terminal
Arrangement
(Top View)
Mounting Holes Mounting Height of
Timer with Socket
P2CF-08
P2CF-11
Terminal
Arrangement
(Top View)
Mounting Holes Mounting Height of
Timer with Socket
Two, 4.5 dia.
holes
Two, 4.5 dia. holes or M4
Eight, M3.5 x 7.5
sems screw
Note: Track mounting is
also possible.
Back Connecting Socket
P3G-08
Terminal Arrangement
(Bottom View)
Mounting Depth of
Timer with Socket
116.9
95.110.9

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
