Omron H3CR-A User Manual

H5CN
H5CN
205

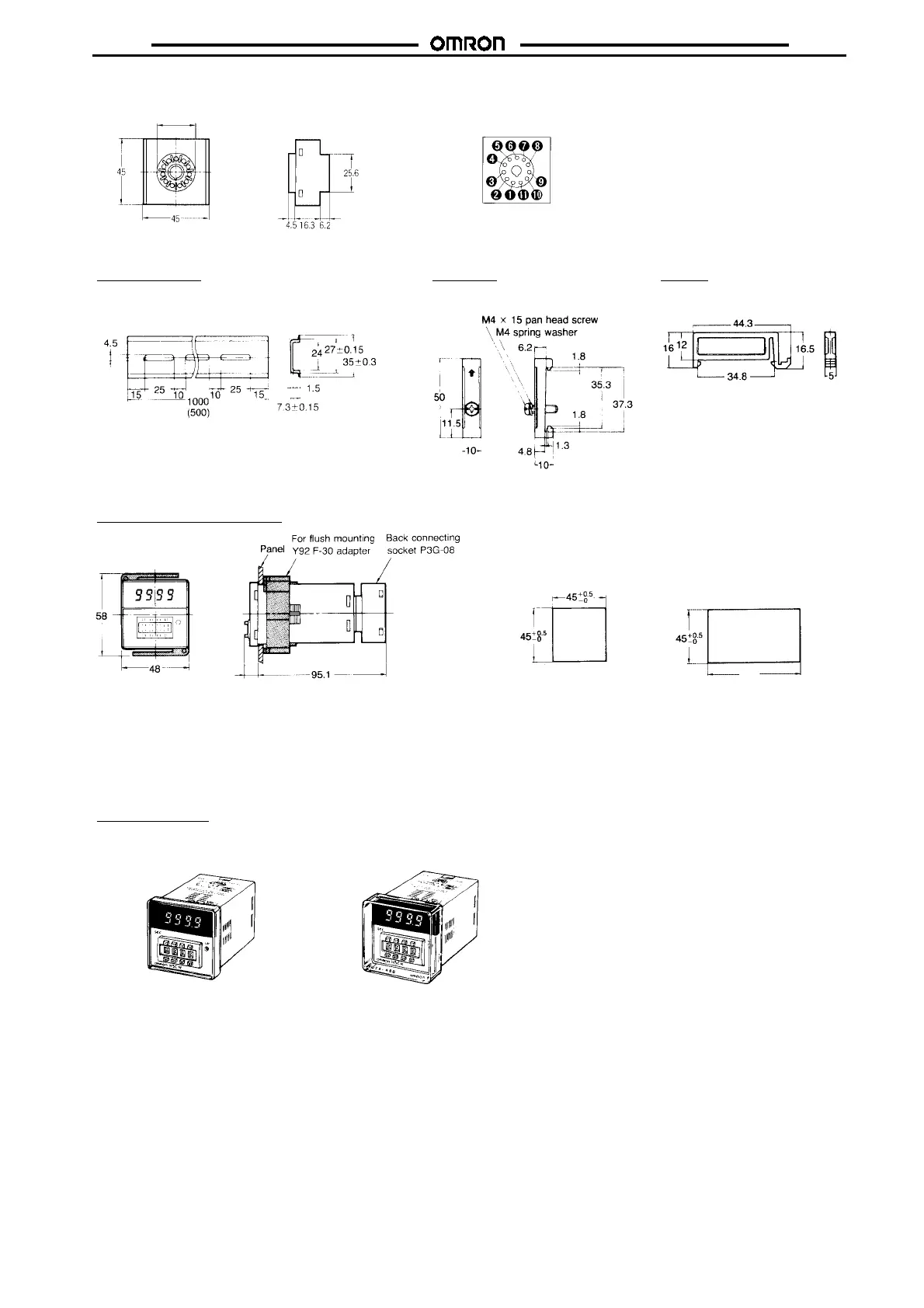

P3GA-11
Terminal Arrangement
(Bottom View)
Mounting Track
PFP-100N/PFP-50N (see note) (for PF085A)
(see note 2)
Note: 1. Meets DIN EN50 022
2. This dimension applied to PFP-50F.
End Plate
PFP-M
Adapter for Flush Mounting
Y92F-30
Panel Cutout
The standard panel cutout
is as below. (Panel cutout
conforms to DIN 43700.)
Note: 1. Panel thickness: 1 to 5 mm
2. Whengang-mountingtheUnit,theorientation ofthe
Adapter must be changed depending on whether
Units are mounted horizontally or vertically.
3. No cover: N = (48n -- 2.5)
+1
/
-- 0
With hard cover: N = {48n -- 2.5 + (n -- 1) x 3}
+1
/
-- 0
Spacer
PFP-S
Gang-mounting of more
than 2 units (horizontally)
27 dia.
Eleven, M3.5
sems
10.9
N
Protective Cover
The protective cover shields the front panel, particularly the count value setting section from
dust, dirt, and water drip, as well as prevents malfunctioning of the timer due to static electricity.
Y92A-48D
(see note 1)
(Soft cover)
Y92A-48B
(see note 2)
(Hard cover)
Note: 1. The soft protective cover allows the set value to be set by depressing the thumbwheel
switches through it.
2. The hard protective cover prevents the set valuefrom being altered dueto accidentalcontact
with the push type thumbwheel switch.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
