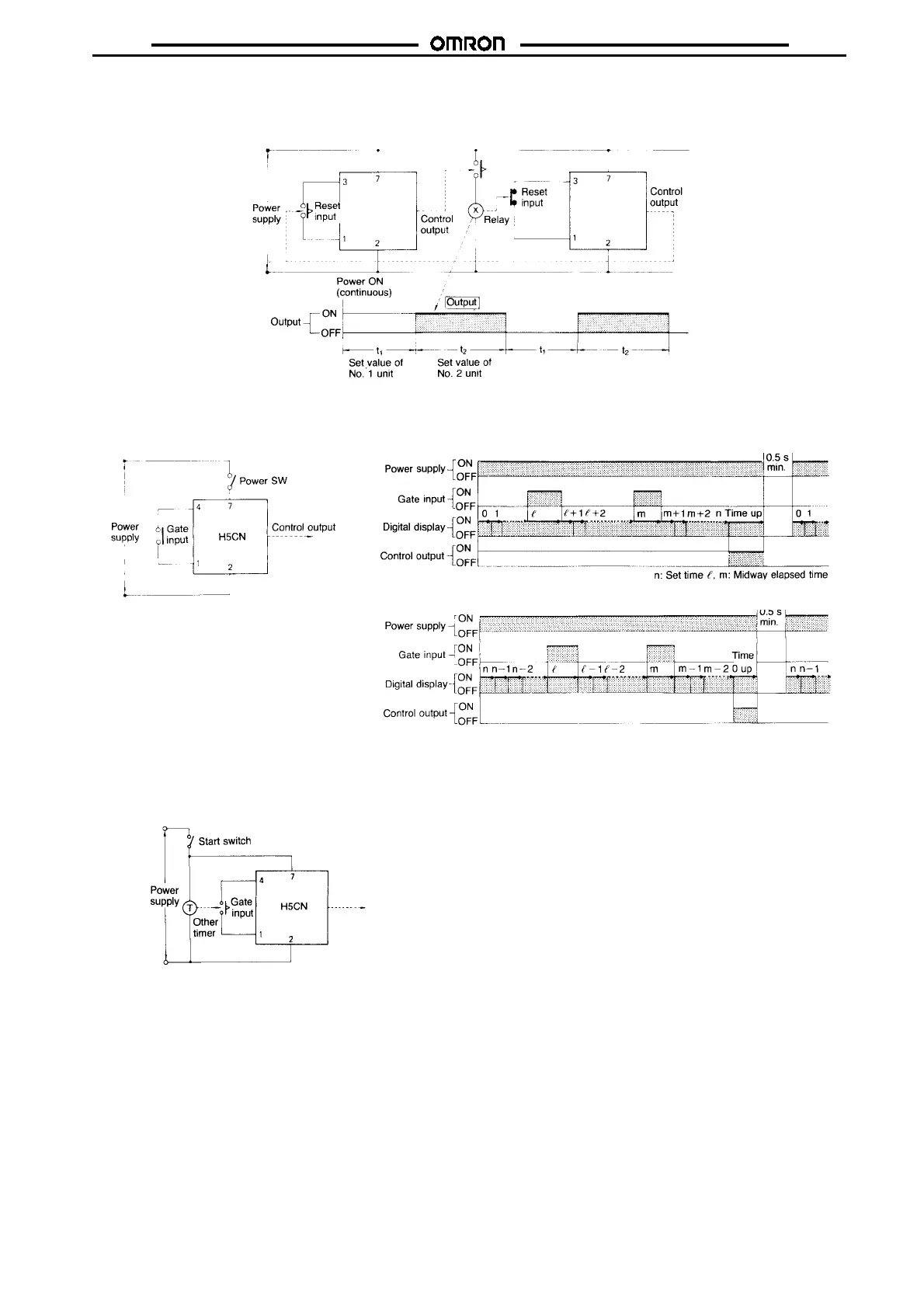

Note
: 1. High-speed Repeat Operation Circuit
When resetting the timer using the reset input terminal, high-speed resetting is possible at a speed of 0.02 s. Accordingly, by using
two H5CN Timers, a high-speed repeat operation circuit can be created.
H5CN
No. 1
H5CN
No. 2
2. Integrating Operation
Use of the gate input terminal permits the timer to sum up timers T
1
,T
2
, and T
3
(i.e., integrating operation) as shown below.
UP Display Timer
DOWN Display Timer
Operating Time Measurement
The UP display timers with digital display can be used to measure
the operating time of other timers or equipment. (For this measure-
ment, set the set time to the maximum.)
Note: The digital display of H5CN stops incrementing
whenthepredeterminedoperating time of timer
“T” has elapsed.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
