Omron H3CR-A User Manual

H2C
H2C
216

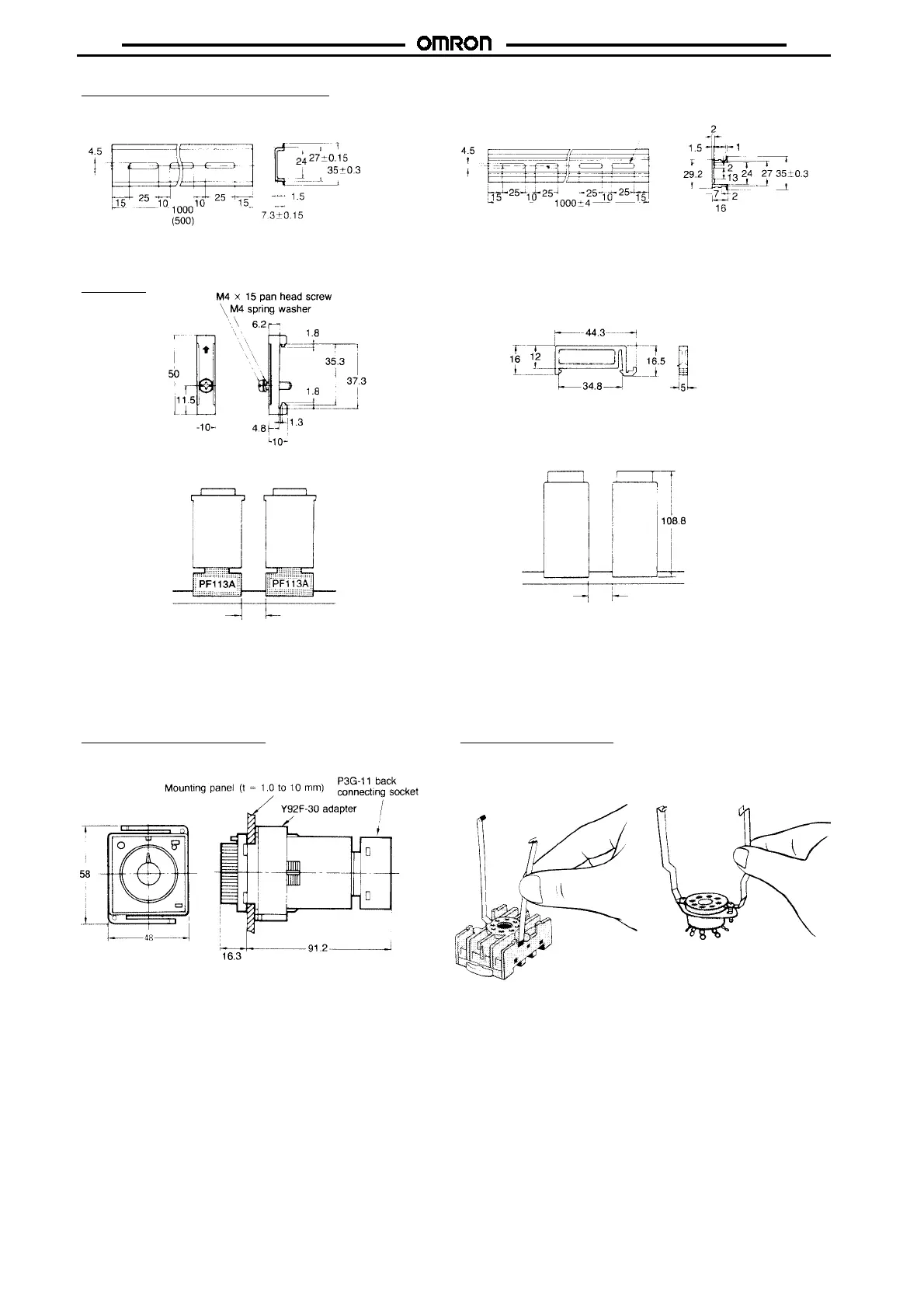

Mounting Track (Meets DIN EN50022)
PFP-100N/PFP-50N
PFP-100N2
Twelve, 25
'
4.5 elliptic holes (see note)
(see note)
Note: This dimension applied to PFP-50N. Note: A total of twelve, 25 x 4.5 elliptic holes are provided with 6
holes cut from each rail end at a pitch of 10 mm between
holes.
End Plate
PFP-M
PFP-S
Adapter for Flush Mounting
Y92F-30
Note: The adapter can be mounted to the timer form any side of
the timer housing since the adapter security notches are
provided on all four sides of the housing.
H2C (with PF113A) H2C-F
Note: For a load current of 3 A max., a spacer and an end
plate are not required. For a load current of 6 A, one
spacer or an end plate is required.
Note: For a load current of 1 A max., a spacer and an end
plate are not required. For a load current of 3 A max.,
one spacer or an end plate is required. For a load cur-
rent of 6 A max. two spacers or two end plates are re-
quired.
Timer Hold-down Clips
Y92H-2
(for PF085A/PF113A
Connecting Socket)
Y92H-1
(for PL08/PL11
Connecting Socket)
(See
note)
(See
note)
(See note)

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
