H2C
H2C
217

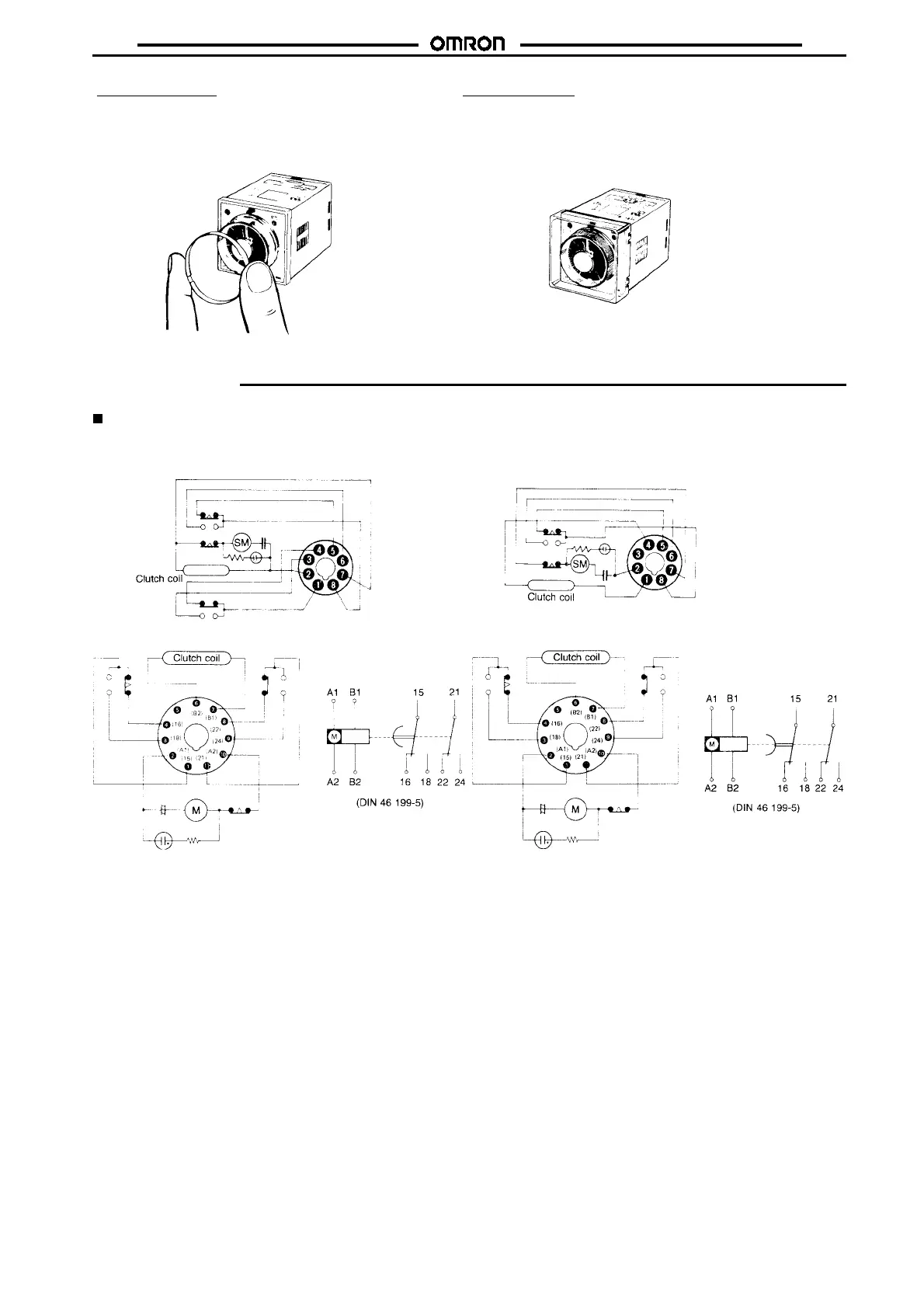

Time Setting Ring
Y92A-Y1
The time setting ring locks the time setting knob to
store the set time to facilitate its resetting. A maximum
of two time setting rings are connectable per timer.
Protective Cover
Y92A-48B
The protective cover shields the front panel, particular-
ly the time setting section, from dust, dirt, and water,
as well as prevents the set value from being altered
due to accidental contact with the time setting knob.
Installation
Terminal Arrangement
H2C-8
ON-delay 8-pin Round Socket
H2C(-F) H2C-(F)R
H2C-8R
OFF-delay 8-pin Round Socket
To Next Page
