Omron H3CR-A User Manual

STP
STP
227

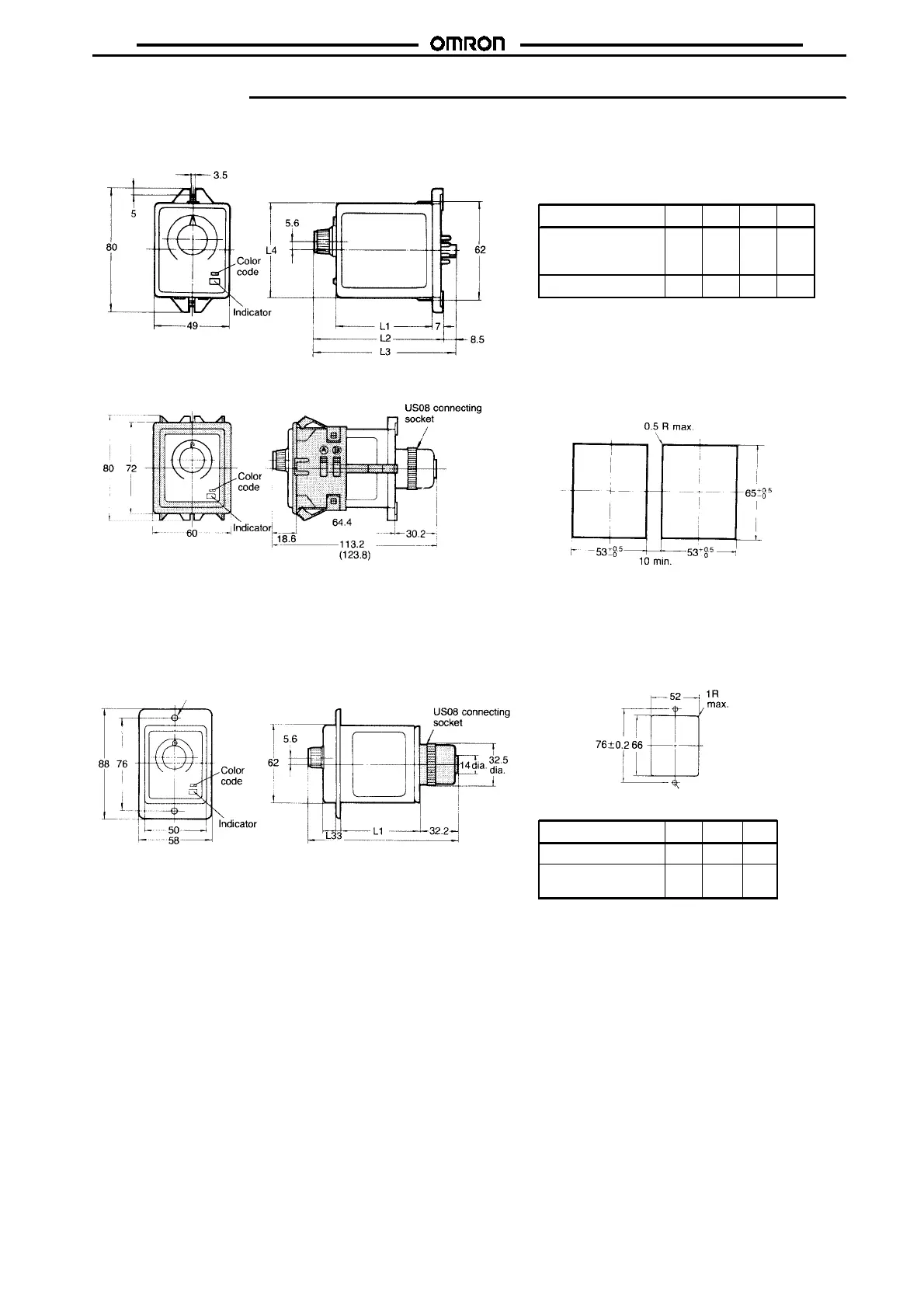

Dimensions
Note: All units are in millimeters unless otherwise indicated.
STP-N
j
/STP-NM
j
Panel Cutouts
Panel Cutouts
Note: 1. US08 connecting socket is supplied with the
timer as an accessory.
2. The dimension in parentheses applies to the
STP-NM series timers.
Note: US08 connecting socket is supplied with the timer.
Two, 4.5 dia. holes
(See note)
Two, 4.5 dia. timer
mounting holes
(See note 1)
(75) (See note 2)
(See note 2)
Dimension L1L2L3L4
STP-N/STP-N2 63.5 84 92.5 61
STP-ND/STP-NH
STP-NR
STP-NM/STP-NMR 74.1 94.6 103.1 60.2
STP-N
j
/STP-NM
j
with Adapter
Note: The mounting panel thickness
should be 1 to 3.2 mm.
STP-Y
j
/STP-YM
j
Dimension L1 L2 L3
STP-Y 61.5 113.2 3
STP-YM/STP-YMH 65.4 123.1 10
STP-YMR

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
