Omron H3CR-A User Manual

STP
STP
228

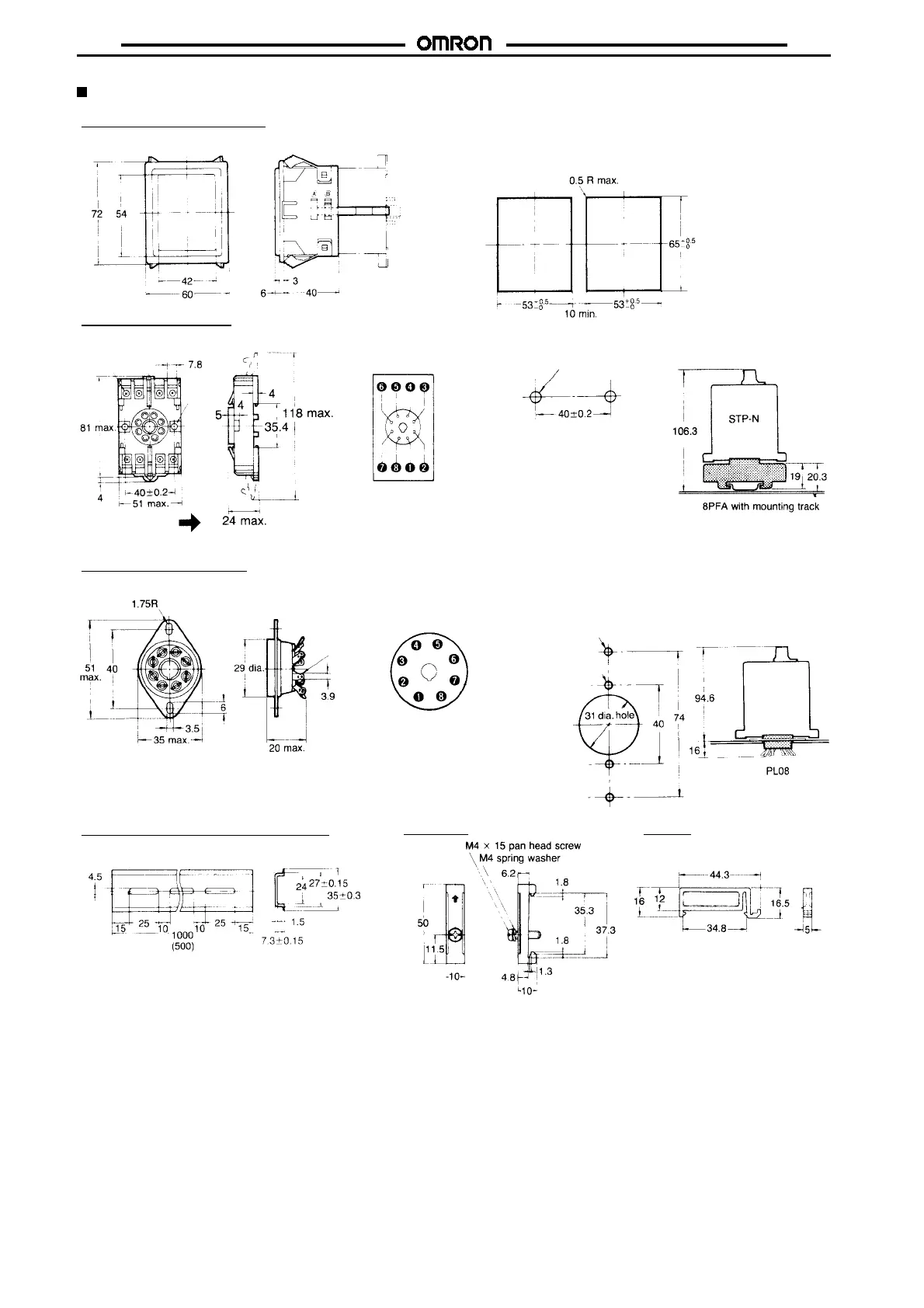

Accessories (Order Separately)
Track Mounted Socket
8PFA
Mounting HolesTerminal Arrangement
(Top View)
Mounting Height of
Timer with Socket
Adapter for Flush Mounting
Y92F-50
Panel Cutouts
Recommended panel thickness: 1 to 3.2 mm
Back Connecting Socket
PL08
Mounting HolesTerminal Arrangement
(Bottom View)
Mounting Height of
Timer with Socket
Mounting Track (Meets DIN EN50022)
PFP-100N/PFP-50N
(see note)
Note: This dimension applied to PFP-50N.
End Plate
PFP-M
Eight, M3.5
'
7sems
Two, 4.5
dia. hoes
Two, M4 or Two, 4.5
dia. holes
Top View
Note: 8PFA can be used as a
front connecting socket.
Two, 3.5 dia. or M3
timer mounting holes
Two, 3.5 dia. or M3
socket mounting holes
Two, 2 dia. holes
Spacer
PFP-S

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
