H5S
H5S
245

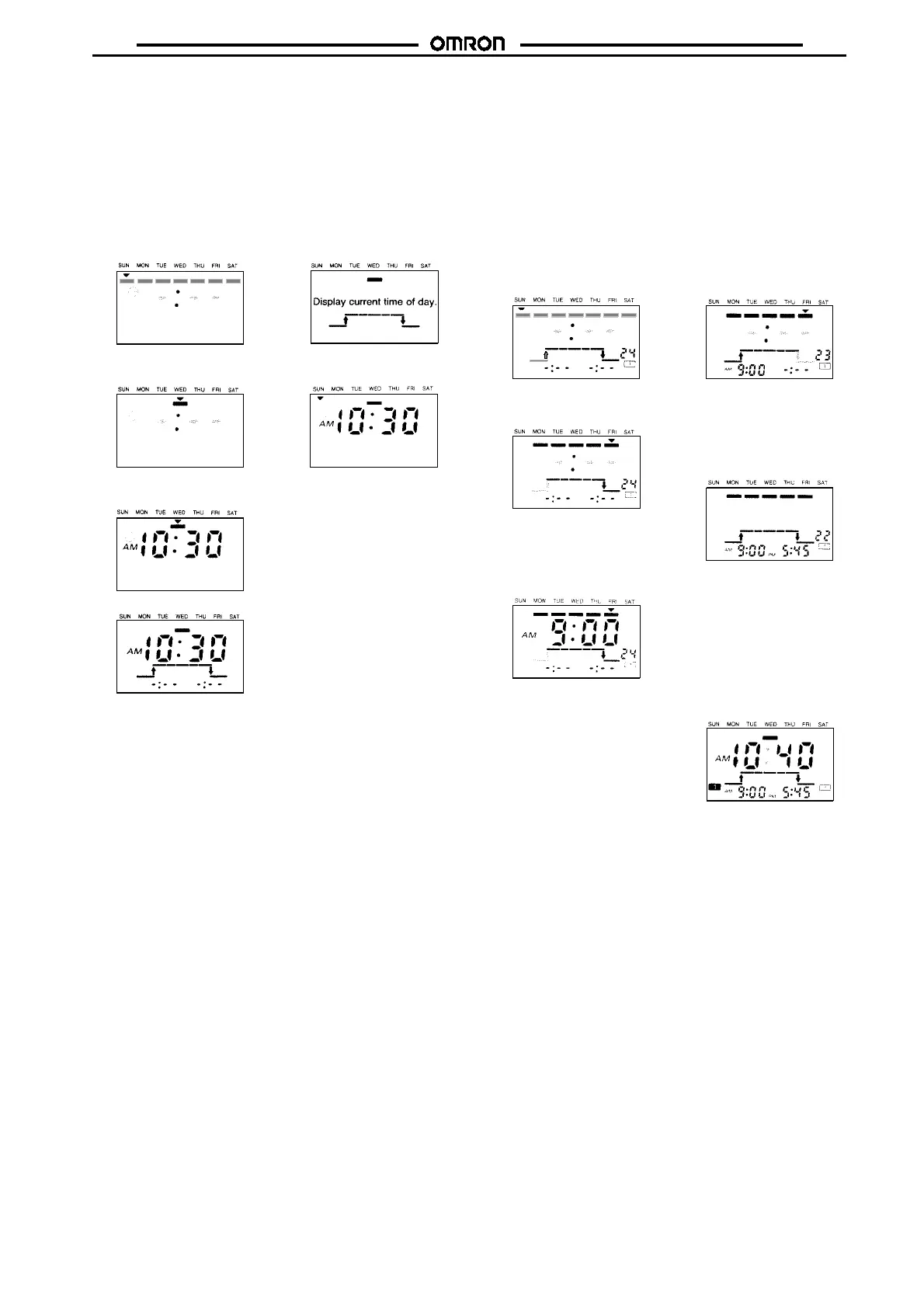

Time Adjustment
Set the Mode Switch to RUN.
Example: Set Wed. 10:30 a.m.
Initial time adjustment after
purchase
Display and key operation
(Shaded portion indicates
blinking of the indicator.)
1 Specify a day with the
Shift and Set Keys.
Time adjustment during op-
eration
Display and key operation
(Shaded portion indicates
blinking of the indicator.)
1
2 Setatimewiththeh
and m Keys.
2
3 Press the Write Key to
complete.
4
(Initial screen)
(Initial screen)
Ordinary Timer Operation
Set the Mode Switch to P1 (or P2).
Example: ON at 9:00a.m.andOFFat5:45p.m.onMondaythrough
Friday.
Display and key operation
(Shaded portion indicates
blinking of the indicator.)
1 Move the cursor (
B
)
with the Shift Key. Press
the Set Key so that of a
desired day turns on.
Select Monday through
Friday.
Display and key operation
(Shaded portion indicates
blinking of the indicator.)
4 Setthetimeto5:45p.m.
with the h and m Keys.
Press the Write Key.
2 Setthetimeto9:00a.m.
with the h and m Keys.
5 (The set times are dis-
played for 1 s and the
display returns to the ini-
tial screen.)
Set the Mode Switch to
RUN.
3 Press the Write Key. 6 The current time is dis-
played along with the re-
maining portion of the
currently scheduled op-
eration or the time chart
for the current opera-
tion. Flashing time dis-
plays on time charts in-
dicate times for the fol-
lowing day.
(Initial screen)
