H5S
H5S
248

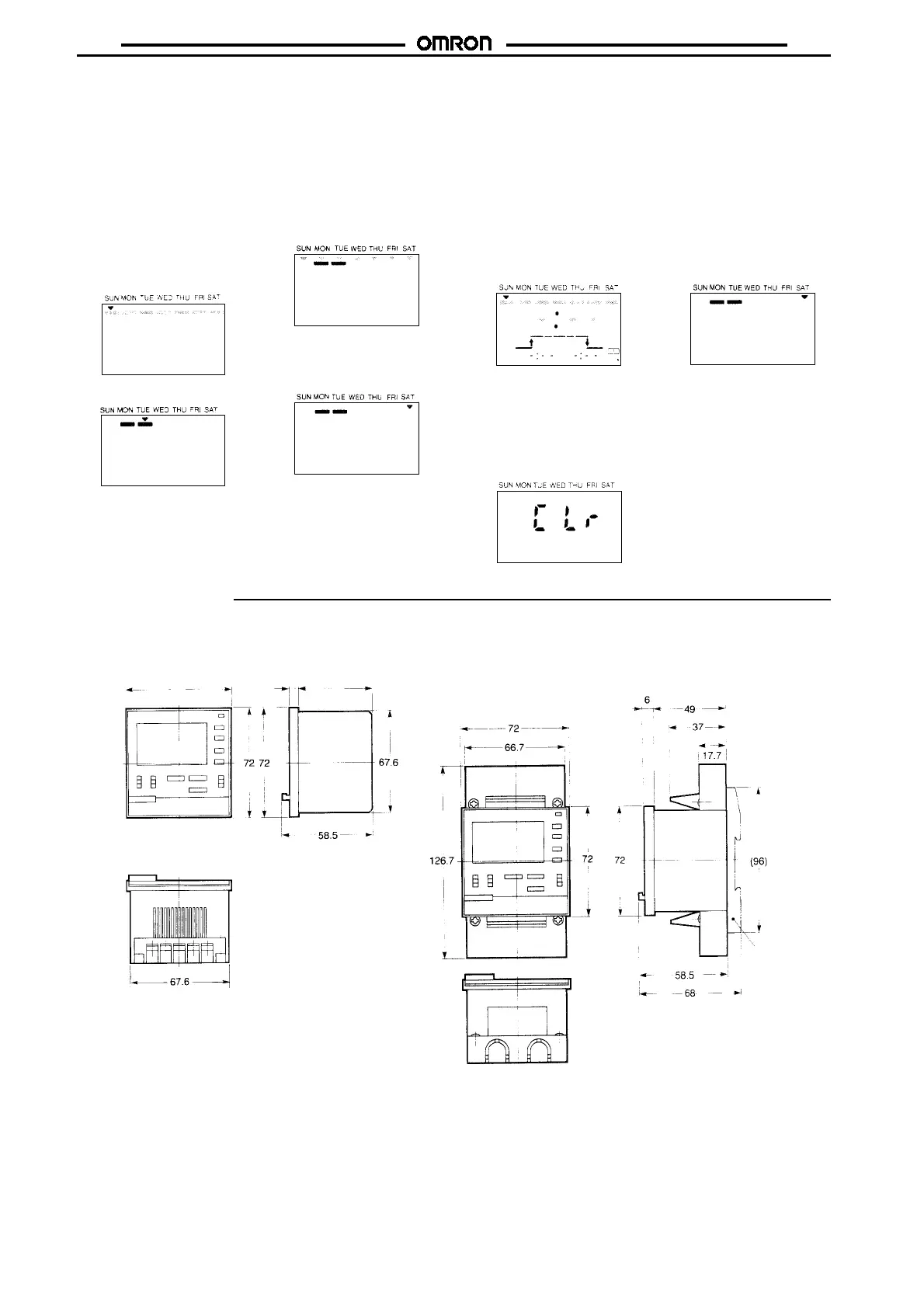

Day Override
Set the Mode Switch to RUN.
To override Saturday’s operation for Monday and Tuesday on
Friday.
Display and key operation
(Shaded portion indicates
blinking of the indicator.)
1 Depress the Copy Key
foratleast1s.
Display and key operation
(Shaded portion indicates
blinking of the indicator.)
4 Specify Saturday with
the Shift and Set Keys.
2 Specify Monday and
Tuesday with the Shift
and Set Keys.
5 Press the Write Key.
(The display returns to
the initial screen.)
3 Press the Write Key.
Canceling the Setting
Tocancel the setting of each
circuit.
Display and key operation
(Shaded portion indicates
blinking of the indicator.)
1 Set the Mode Switch to
the position of the circuit
whose setting is to be
canceled.
2PresstheCLRKey.
To cancel the day override
program.
Display and key operation
(Shaded portion indicates
blinking of the indicator.)
1 Set the Mode Key to
RUN. Depress the Copy
Key for at least 1 s.
2PresstheClrKey.
(The display returns to
the initial screen.)
3 The message Clr is dis-
played for 1 s, then the
display returns to the ini-
tial screen. (The setting
for circuit 2 can be can-
celed in the same man-
ner.)
3 Press Copy for 1 s
again. Set a new over-
ride.
Dimensions
Note: All units are in millimeters unless otherwise indicated.
H5S-B (Flush Mounting Model) H5S-FB (Surface Mounting Model)
(The Unit is shown with the enclosed ter-
minal cover attached.)
6
72 49
Y92F-90 (option)
Track mounting
base

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
