H5S
H5S
250
Twelve, 25
'
4.5 elliptic holes

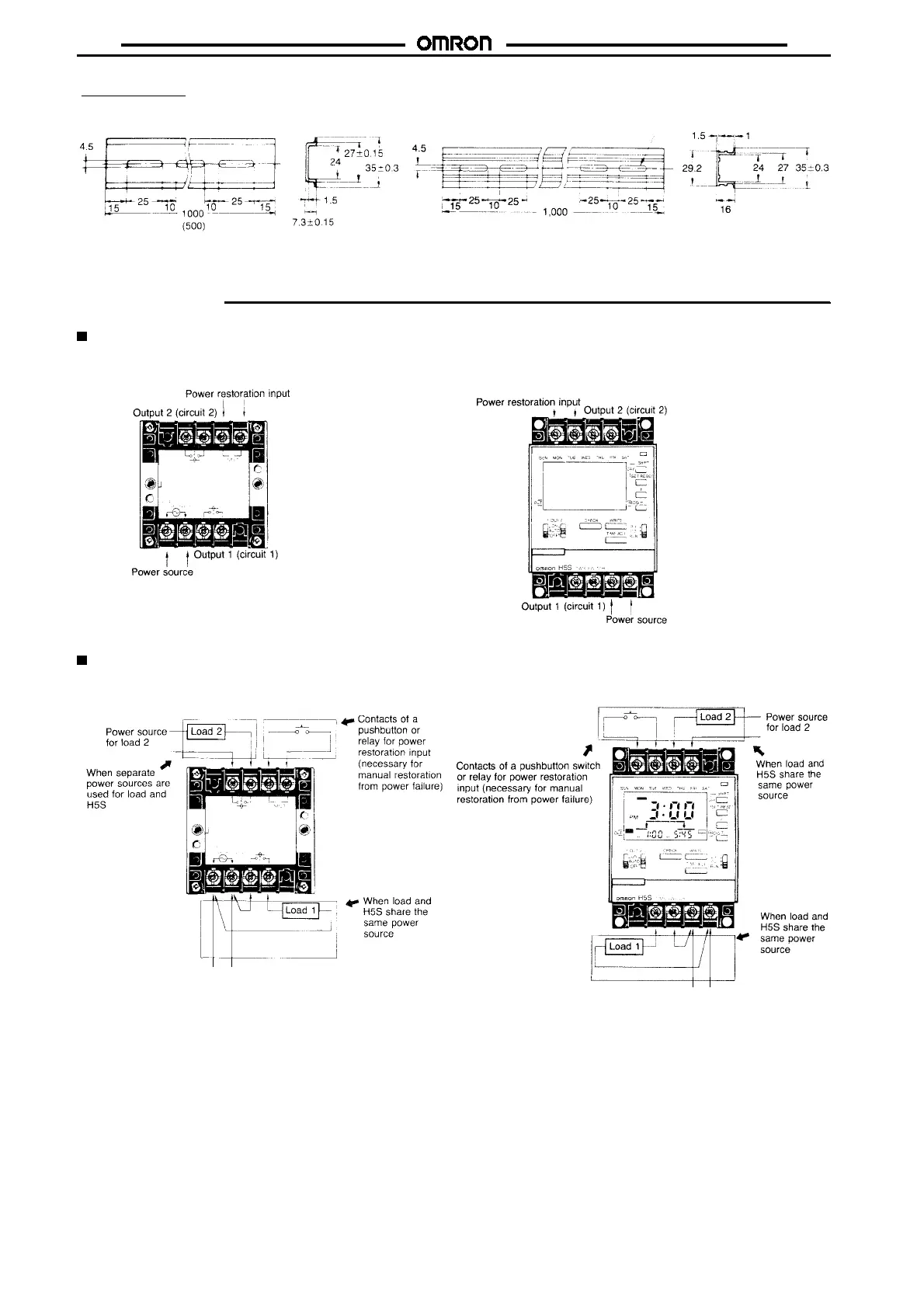

Mounting Track
PFP-100N/PFP-50N (Meets DIN EN 50022)
PFP-100N2 (Meets DIN EN 50022)
This dimension applies to the PFP-50N Mounting Track.
Installation
Terminal Arrangement
H5S-B Flush Mounting Models
(Rear View)
H5S-FB Surface Mounting Models
(Front View)
Note: The terminal screws are M3.5.
Connections
H5S-B Flush Mounting Models H5S-FB Surface Mounting Models
+
~
--
~
+
~
--
~
Power source
Power source
To Next Page
