H2F
H2F
267

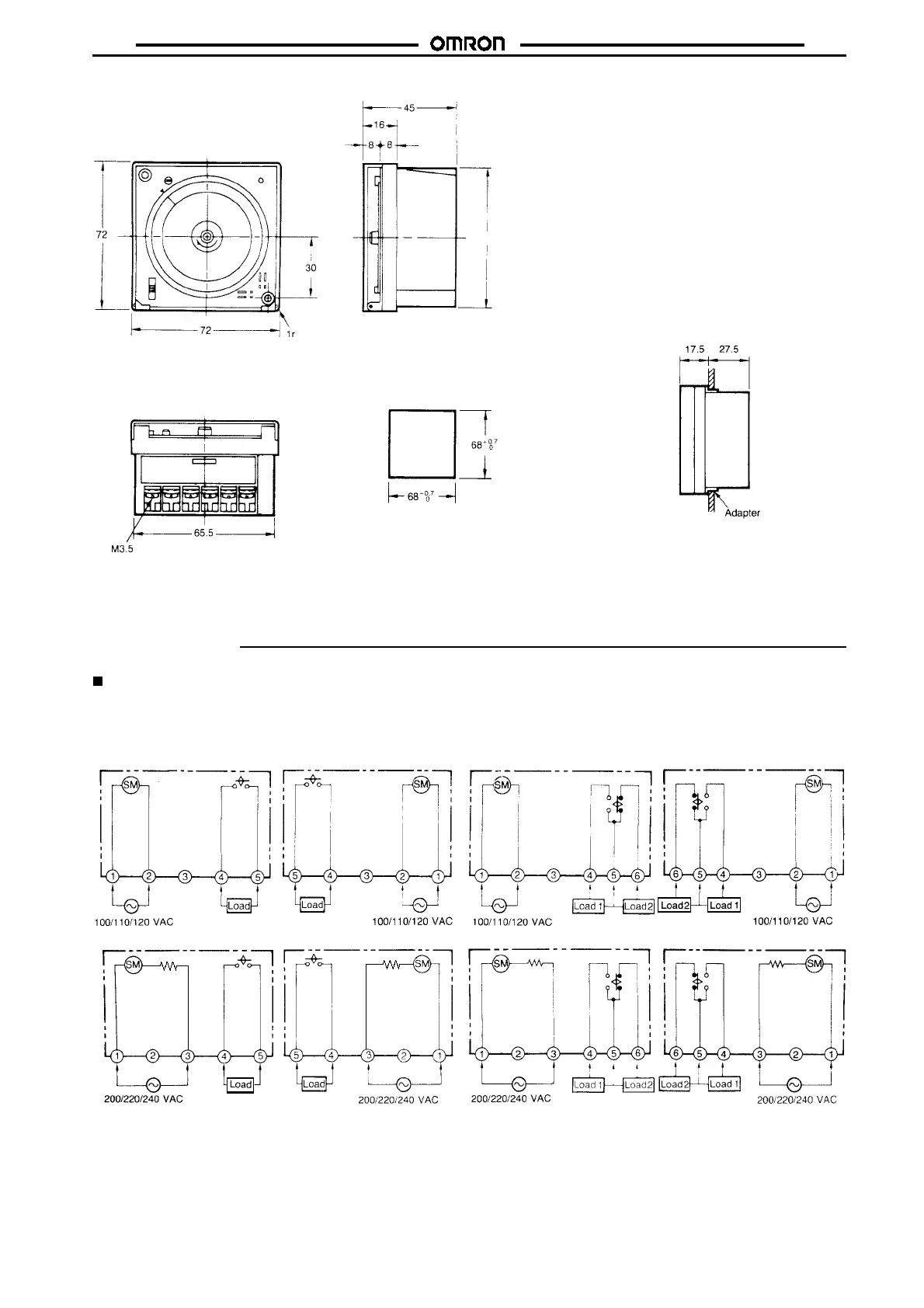

Flush Mounting: H2F-D/-DM/-WM/-DC/-DMC/-WMC
Panel Cutout
Recommended panel thickness: 3.2 mm
Note: The mounting adapter and
screws are included.
65.5
Installation
Connections
Synchronous Motor Model
(SPST-NO Output)
H2F-D
(SPDT Output)
H2F-DC
H2F-DF H2F-DFC
