Omron H3CR-A User Manual

H2F
H2F
268
Quartz Motor Model
(SPST-NO Output)
H2F-DM/H2F-WM
(SPDT Output)
H2F-DMC/WMC
H2F-DMF/H2F-WMF H2F-DMFC/WMFC
2
Note: Connect an independent power source to the load.

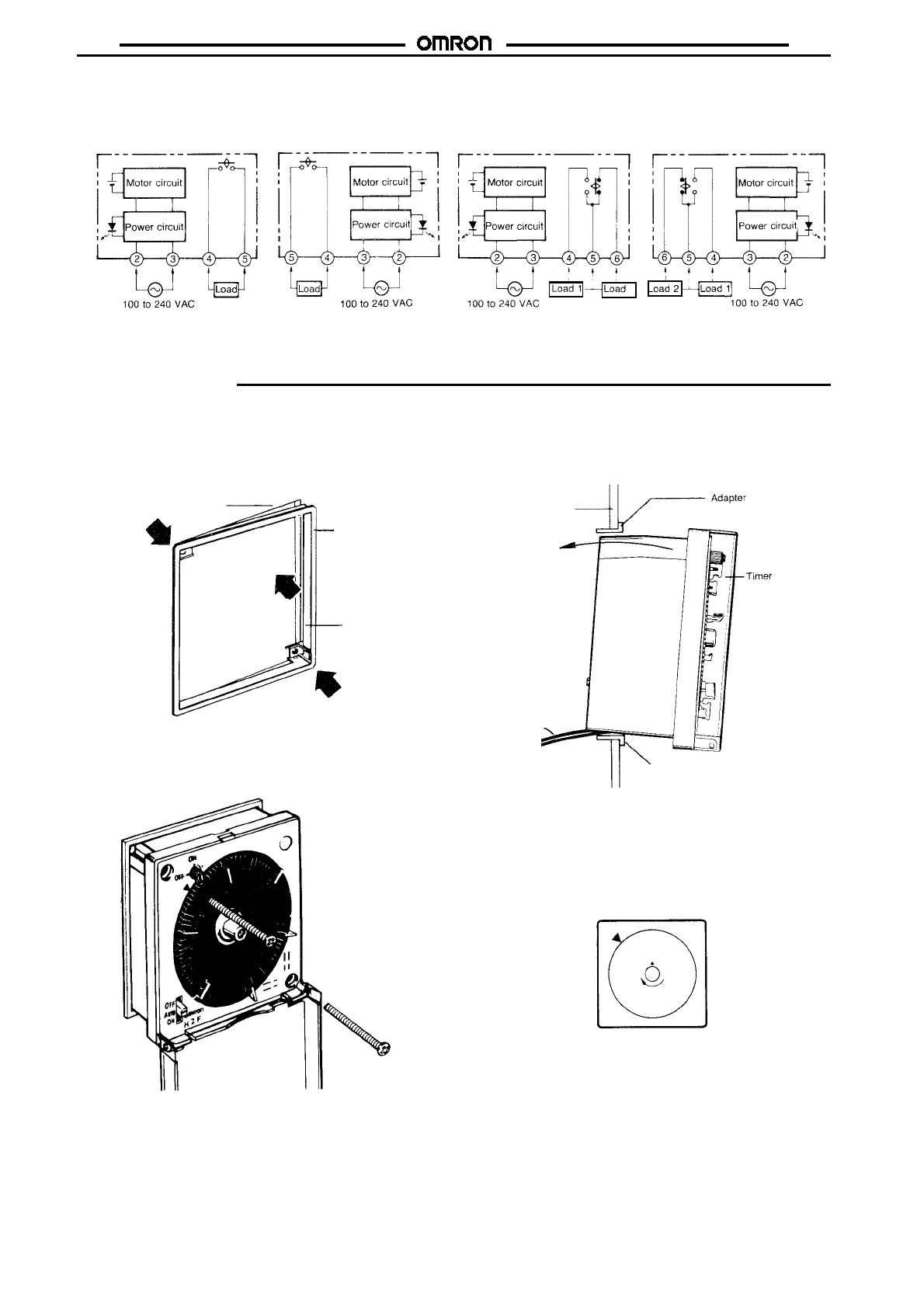

Precautions
Flush Mounting
1. To mount theadaptertothepanelcutout,first deformtheadapter
by pushing it on the two opposing corners (as indicated by ar-
rows A. Then push part B into the cutout (i.e., toward the back of
the panel).
Panel
Adapter
B
A
2. After the adapter is mounted, insert the timeras shown in the fig-
ure below. Secure the timer by tightening the two mounting
screws (M3 x 16) included as accessories.
3. If the lead wires have been connected to the timer from the front
of the panel before the timer is mountedin thepanel, engage the
timer to part A of the adapter and push it in the direction of B.
Then tighten the two screws as described in 2.
Panel
Lead wire
B
A
Time Setting
To set the time, turn the center knob clockwise to the correct time.
Turningit counterclockwise orturning it with yourfingers hookedon
the setting bracket may cause a malfunction.
Set the hour to the arrow on the upper left corner of the front panel
and the minute, to the arrow on the center knob.
UsethegoldsettingtabstosettheONtimeandthesilveronestoset
the OFF time. Position the thick leg of the tab toward the outside of
the dial and insert the tab securely into the groove on the dial.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
