H2F
H2F
269

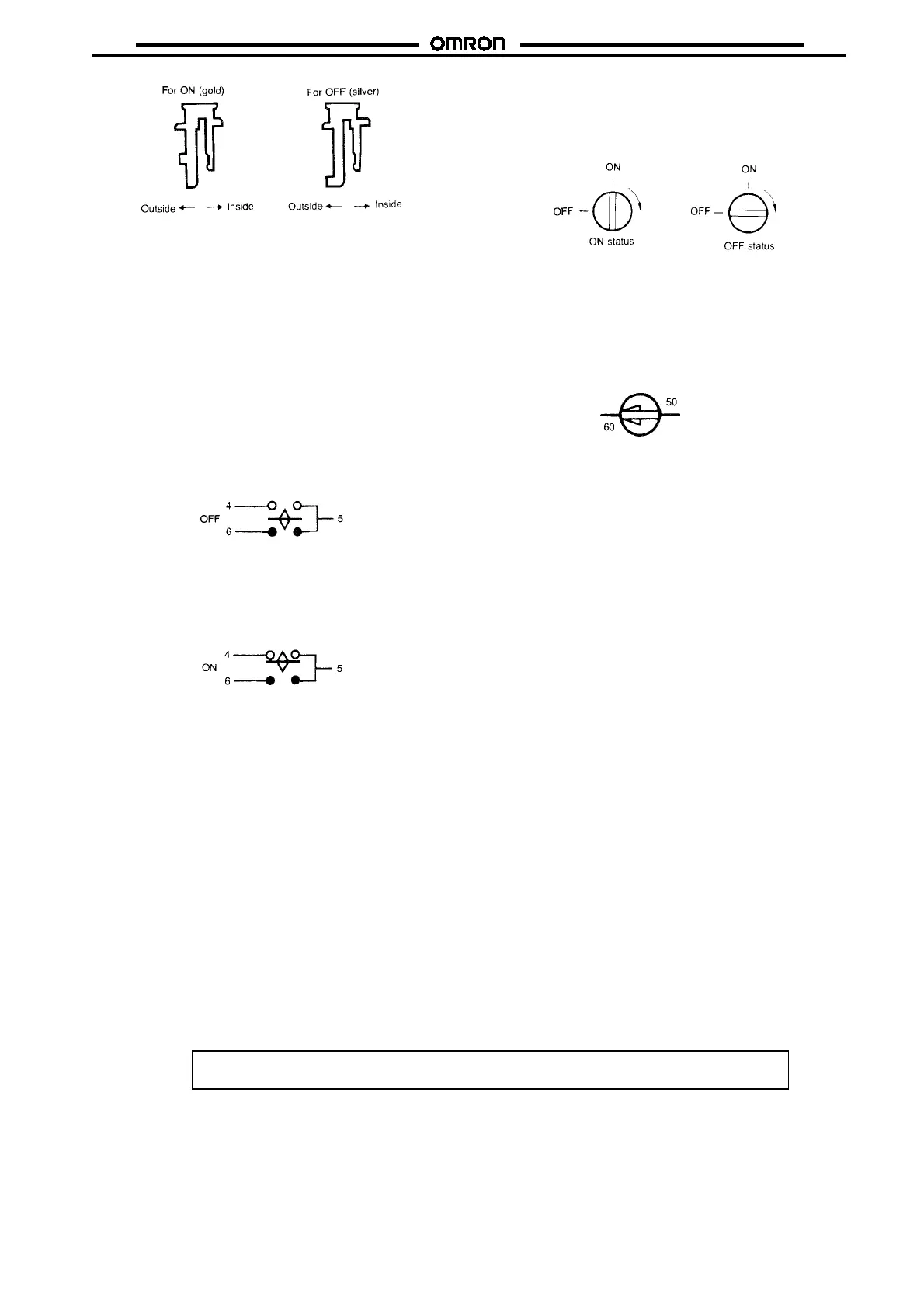

Three pairs pairs of setting tabs are attached.
Store the spare tabs in the compartment at the lower right corner of
the front panel.
Manual Switch
SPST-NO Output
A 3-position selector switch, located at the lower left corner of the
front panel, determines output operation. In the OFF position, the
control output is forcibly turned OFF regardless of the setting of the
programming tabs. Set to the AUTO position, the output is turned
ONandOFF according tothesettings of theprograming tabs. In the
ON position, the output is forcibly turned ON regardless of the set-
ting of the programming tabs.
SPDT Output
When the manual switch at the lower left corner of the front is set to
the OFF position, both load 1 (connected across terminals 4 and 5)
and load 2 (across 5 and 6) are turned OFF.
Whenitis settotheAUTOposition,theoutputisturnedONandOFF
according to the setting of the programming tabs.
Whenthemanualswitchisset to the ONposition,load1(connected
across terminals4 and 5)is turnedONandload2(across 5and6)is
turned OFF.
Output Indicator
Theoutput indicator at the upper left corner of the front panel shows
the status of the output when the manual switch is set to the AUTO
position.
In addition, the output can be manually turned ON or OFF by rotat-
ingtheknobclockwise (in thearrow direction). The knobwill not turn
counterclockwise.
Note on H2F-D, -DF series (synchronous motor versions)
Beforeusingthetimer,selecttheappropriatefrequencyofyourarea
by the frequency selector switch provided on the upper part of the
rear panel.
Upper part of rear panel
(cycles per second)
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. L13-E1-3
To Next Page
