H3BG
H3BG
304

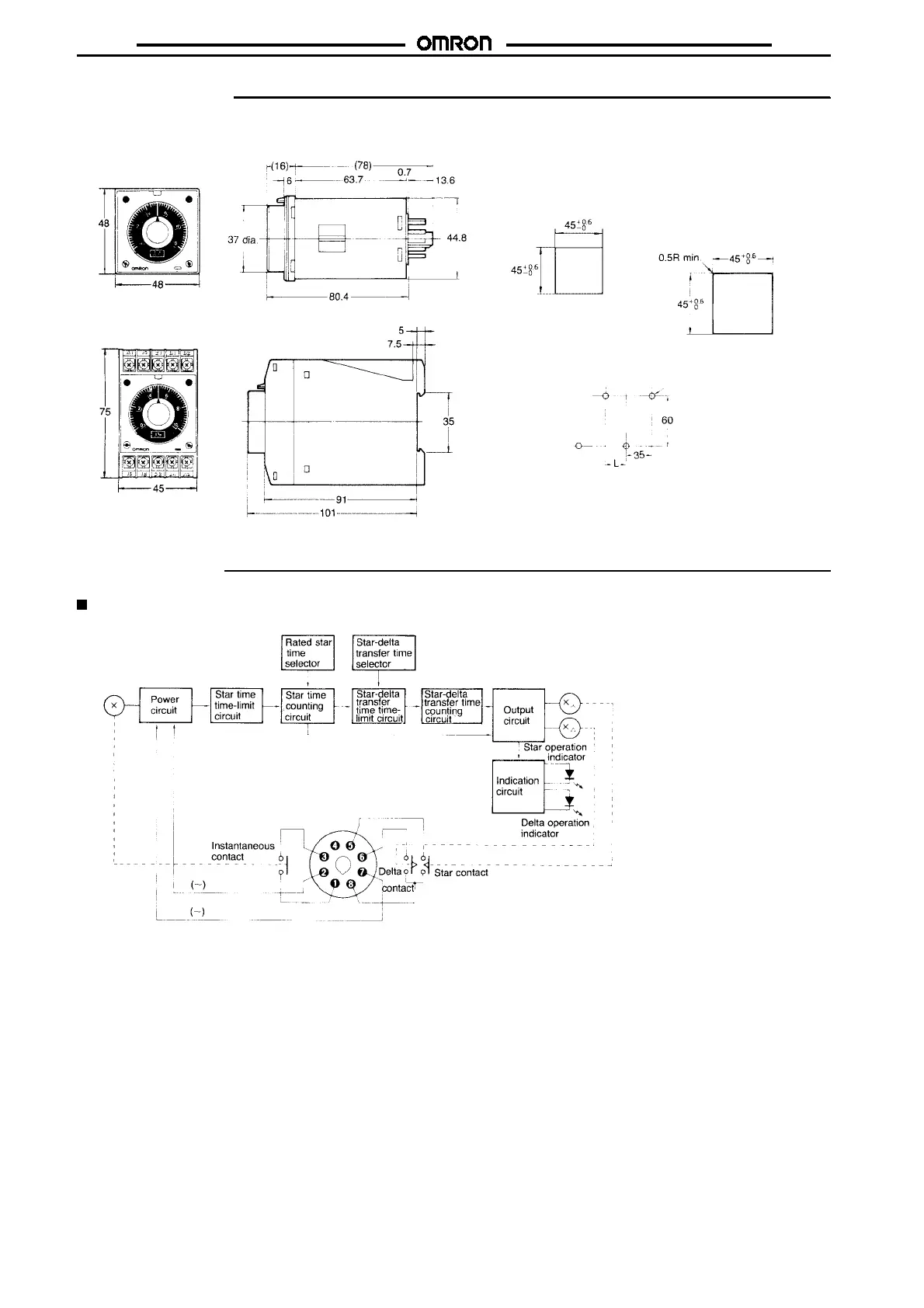

Dimensions
Note: All units are in millimeters unless otherwise indicated.
H3BA-A/-8(H)
Mounting Holes
Note: When mounting two or more timers in
line, dimension L between twoadjacent
timers should be 10 mm min.
H3BA-FA
Two, 4.5 dia. or M4 holes
Panel Cutouts
When mounting a
single unit
t=1to3.2mm
Horizontally connecting n units
No front cover:
N = (48n -- 2.5)
+1
/
-- 0
With front cover:
N = {48n -- 2.5 + (n -- 1) x 3}
+1
/
-- 0
(N)
Installation
Internal Connection
H3BG-8/-8H
(See note)
Note: Instantaneous contact is
only available for H3BG-8H.
