Omron H3CR-A User Manual

Y92A-
jj
N
Y92A-
jj
N
314

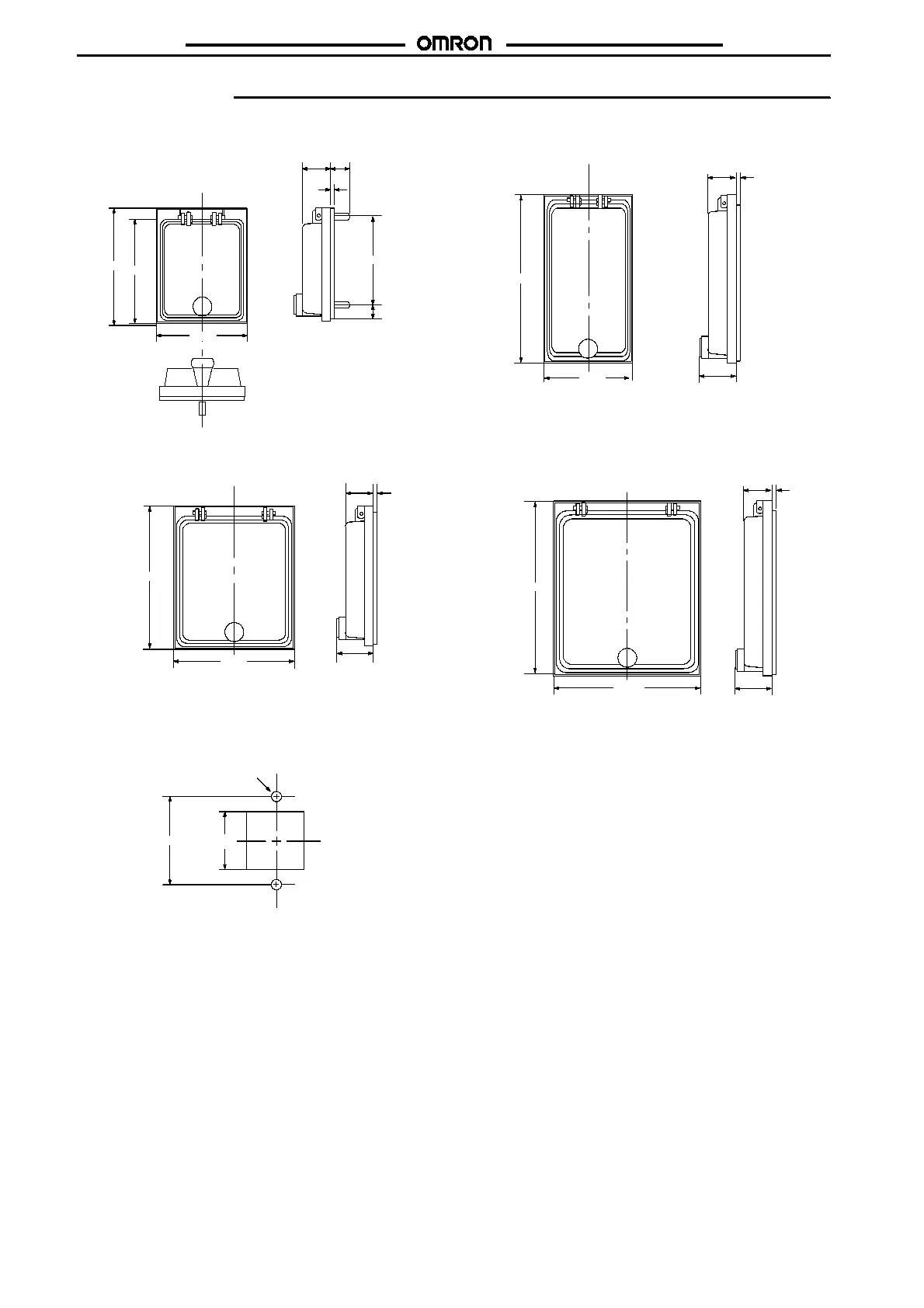

Dimensions
Note: All units are in millimeters unless otherwise indicated.
Y92A-48N (48 x 48 mm) Y92A-49N (48 x 96 mm)
Y92A-72N (72 x 72 mm) Y92A-96N (96 x 96 mm)
Panel Cutout
Y92A-48N (48 x 48 mm)
29.4
21.9
(2)
(2)
21.9
29.4
131.7
131.7
115.6
67.6
69
12
(2)
21.9 14
87.7
79.2
67.6
107.7
91.6
21.9
(2)
29.4
Two, 4.5 dia.
69
!
0.3
45
+0.6
-- 0
dia.
Square
hole

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
