Omron H3CR-A User Manual

H3CT
H3CT
323
Operation
Basic Operation
Time Unit Selection
The desired time unit can be selected with the time unit selector lo-
cated at lower-left corner of the front panel.
Time Scale Selection
The scale is selected with the time scale selector at thelower-right
corner of the front panel.

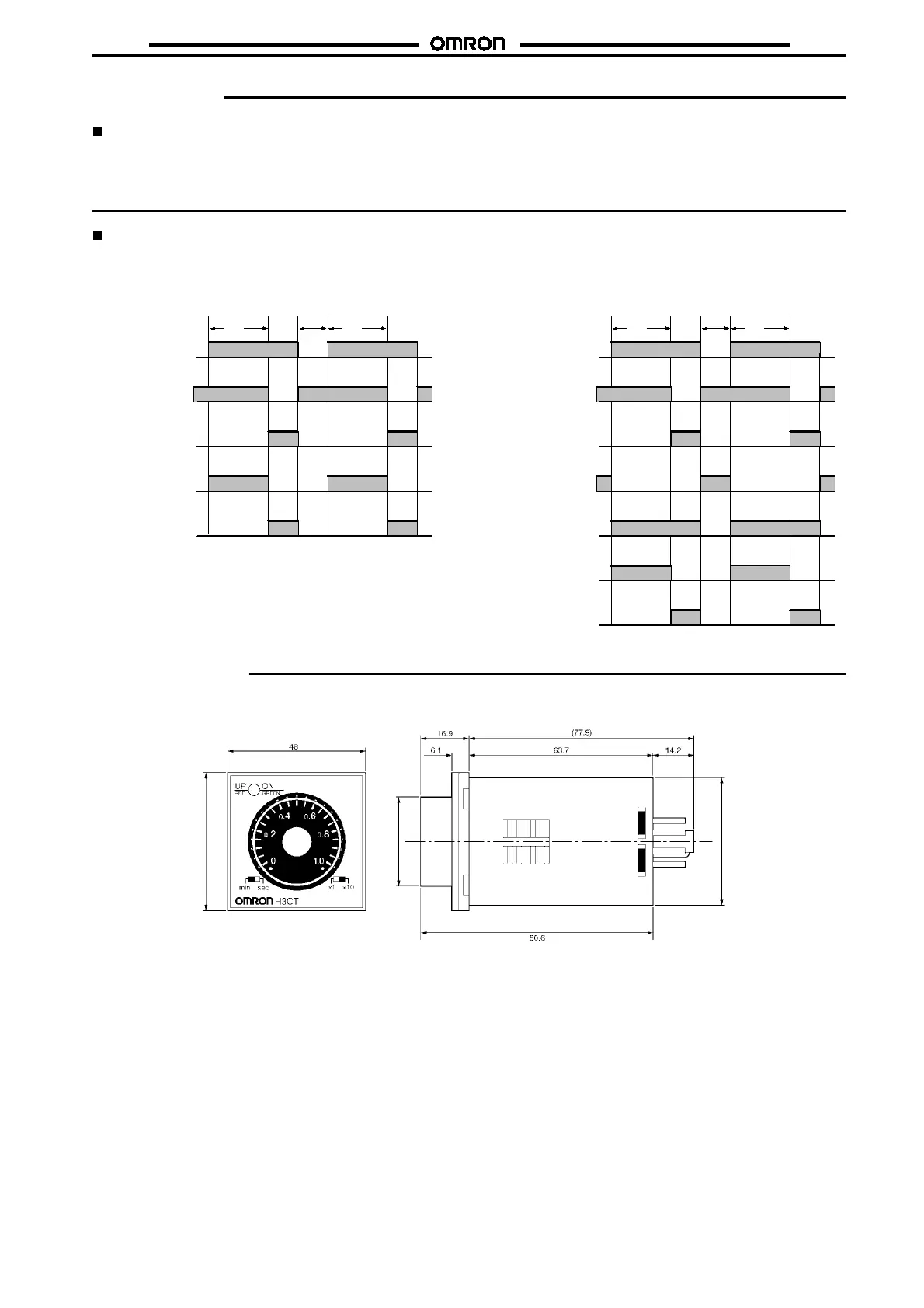

Timing Charts
Note: 1. The minimum power-operating time, “Rt,” is 0.1 s.
2. The “t” in the timing charts stands for the set time.
H3CT-8A H3CT-8H
t
Rt
t
Power 2 to 7
NC8to5
NO8to6
Indicator G
Indicator R
t
Rt
t
Power 2 to 7
NC8to5
NO 8 to 6
Indicator G
Indicator R
NC1to4
NO 1 to 3
Dimensions
Note: All units are in millimeters unless otherwise indicated.
44.8
31
48
H3CT-8A/-8H

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
