Omron H3CR-A User Manual

H3CR-H
H3CR-H
56

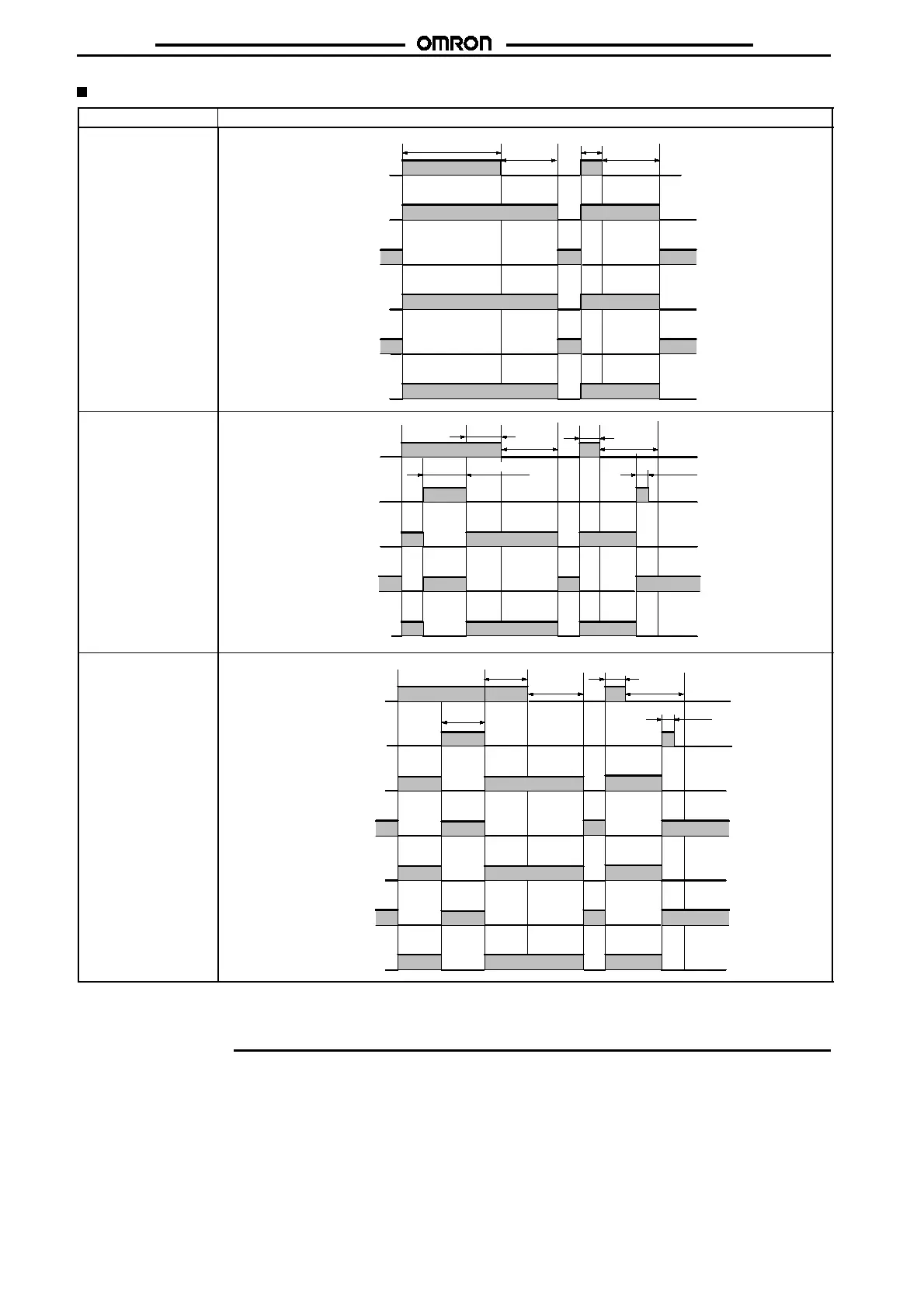

Timing Chart
Model Timing chart
H3CR-H8L
Power
ON
OFF
Output (1 -- 3)
Output
indicator
Rt
t
Rt
t
Lit
Not lit
Output (1 -- 4)
Output (8 -- 6)
Output (8 -- 5)
H3CR-H8RL
Lit
Not lit
ON
OFF
tt
Output
indicator
Output (8 -- 6)
Power
Reset input
ON (Short-circuited)
OFF (Open)
0.05 s min.
0.05 s min.
Rt
Rt
Output (8 -- 5)
H3CR-HRL
Power
ON
OFF
Output (1 -- 3)
Output
indicator
Lit
Not lit
Output (1 -- 4)
Output (11 -- 9)
Output (11 -- 8)
Reset input
Rt
t
Rt
t
0.05 s min.
0.05 s
min.
Note: t: Set time
Rt: Minimum power ON time (S-series: 0.1 s min.; M-series: 2 s min.)
Dimensions
Note: All units are in millimeters unless otherwise indicated.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
