Omron H3CR-A User Manual

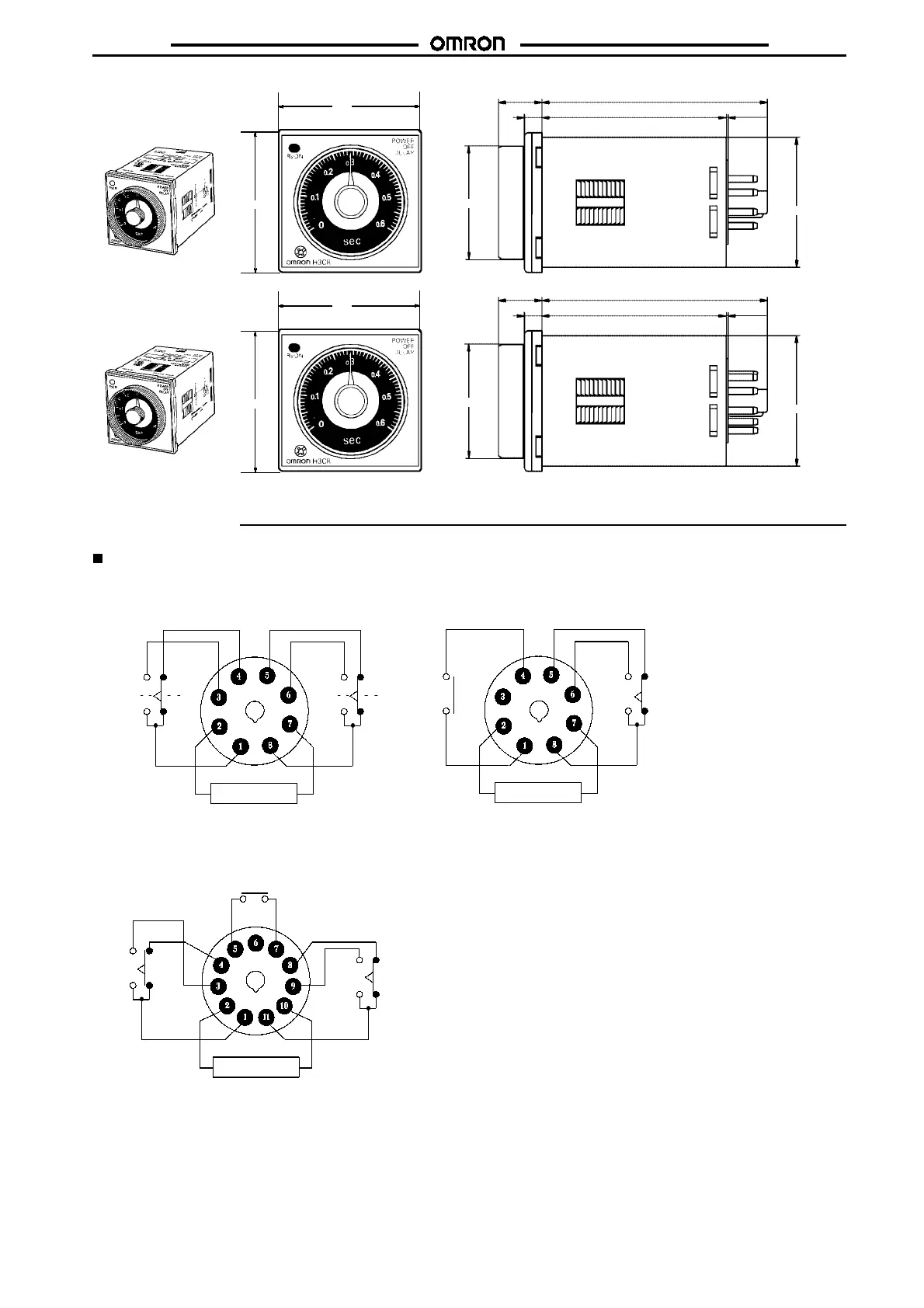

H3CR-H
H3CR-H
57
H3CR-H8L
H3CR-H8RL
H3CR-HRL
15
78.0
6
39 dia
63.7 0.7
44.8 x 44.8
15
78.0
6
39 dia
63.7 0.7
44.8 x 44.8
48
48
48
48
Installation
Terminal Arrangement
8-pin Models
Without Reset Input (H3CR-H8L)
With Reset Input (H3CR-H8RL)
11-pin Model
With Reset Input (H3CR-HRL)
Power supply
(+)
(~)
(--)
(~)
Power supply
(--)(~)
(+)(~)
Power supply
(+)
(~)
(--)
(~)
Reset
input
Reset input
Note: Leave terminal 3 open. Do not use
them as relay terminals.
Note: Leave terminal 6 open. Do not use
them as relay terminals.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
