Omron H3CR-A User Manual

H3DR-G
H3DR-G
98

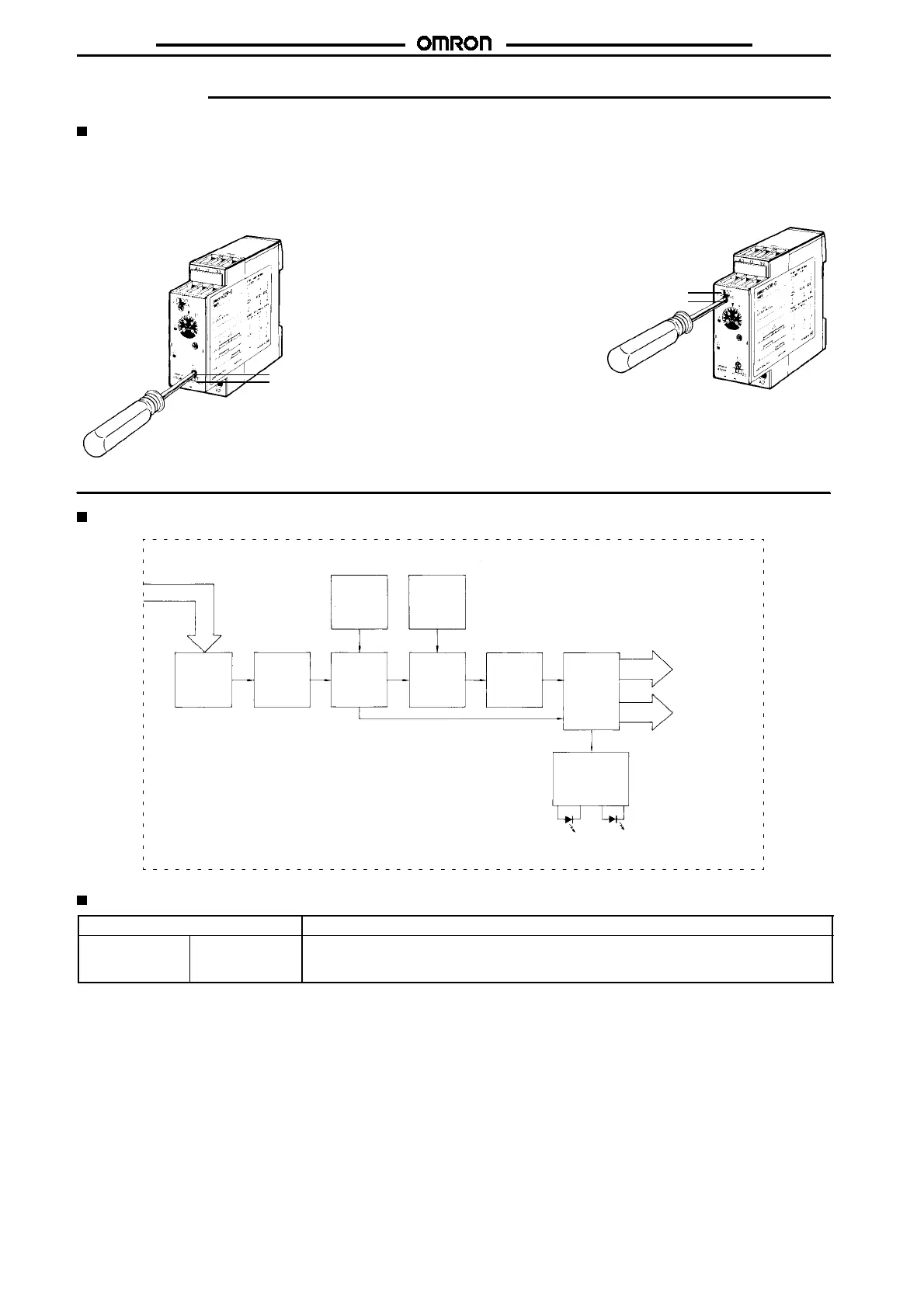

Operation
Basic Operation
Time Unit Selection
The time required for switching (0.05, 0.1, 0.25, or 0.5 s) from the
star operation to the delta operation can be selected with the star-
delta transfer time selector at the lower-right corner of the front pan-
el.
Star-delta transfer time selector
Star-delta transfer time window
Time Scale Selection
Thescale(1or10)isselectedwiththe timescaleselectorat the up-
per-left corner of the front panel and appears in the window above
the selector.
Star operation time scale window
Star operation time scale selector
Time Setting
Use the main dial to set the operation time.
Thefine-tuningdial is useful whendelicateormore accurateadjust-
ment is required.
Block Diagram
AC (DC) input
Power
supply
circuit
Star
operation
indicator
Delta
operation
indicator
Indicator
circuit
Output
circuit
Star opera-
tion time
oscillation
circuit
Star opera-
tion time
counting
circuit
Star
operation
time range
selector
Star-delta
transfer
time
selector
Star-delta
transfer
time oscilla-
tion circuit
Star-delta
transfer
time
counting
circuit
Star operation
Delta operation
I/O Functions
Inputs ---
Outputs Control output If the time reaches the value set with the time setting dial, the star operation output will be
turned OFF and there will be delta operation output after the set star-delta transfer time has
elapsed.

Omron H3CR-A Specifications

General

Time Range	0.05 seconds to 300 hours
Output Type	Relay
Mounting Type	DIN Rail
Operating Temperature	-10°C to 55°C
Contact Form	SPDT
Number of Pins	8
Contact Rating	5A at 250VAC
Storage Temperature	-25°C to 65°C
Type	Solid State Timer
Dimensions	48 mm x 48 mm
Operating Mode	ON-delay, OFF-delay, Interval, One-shot
Operating Voltage	24V DC, 100-240V AC
