Omron H3CR-A

H3DR-G
H3DR-G
99

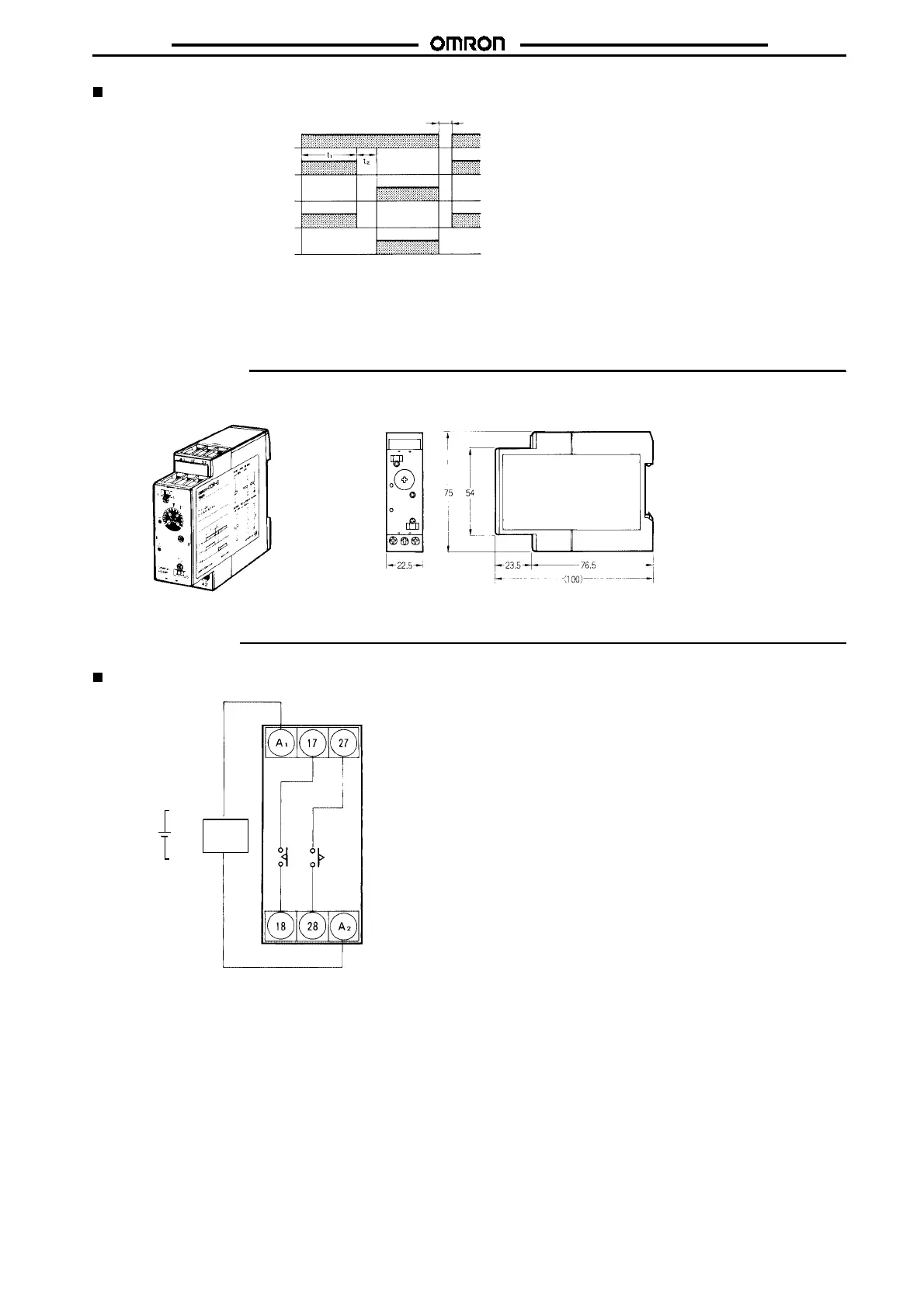

Timing Chart
Note: t
1
: Star operation time setting
t
2
: Star-delta transfer time
Power
ON
OFF
0.5 s min.
Star
operation contact
Delta
operation contact
ON
OFF
ON
OFF
Star
operation indicator
Delta
operation indicator
ON
OFF
ON
OFF
Dimensions
Note: All units are in millimeters unless otherwise indicated.
Installation
Terminal Arrangement
Power
supply
Star operation contact Delta operation contact
+
--
