Omron H3CR-A8 User Manual

H3CR-A
H3CR-A
22
2. Signal Start/Instantaneous Operation/T ime-limit Reset
Lit
Start signal (NO to NC to NO)
Power (2 and 10)
Start (2 and 6)
Control output: NC (8 and 11)
NC (1 and 4)
Control output: NO (9 and 11)
NO (1 and 3)
Power indicator
Flashing Lit
(Power continuously supplied)
Power
supply

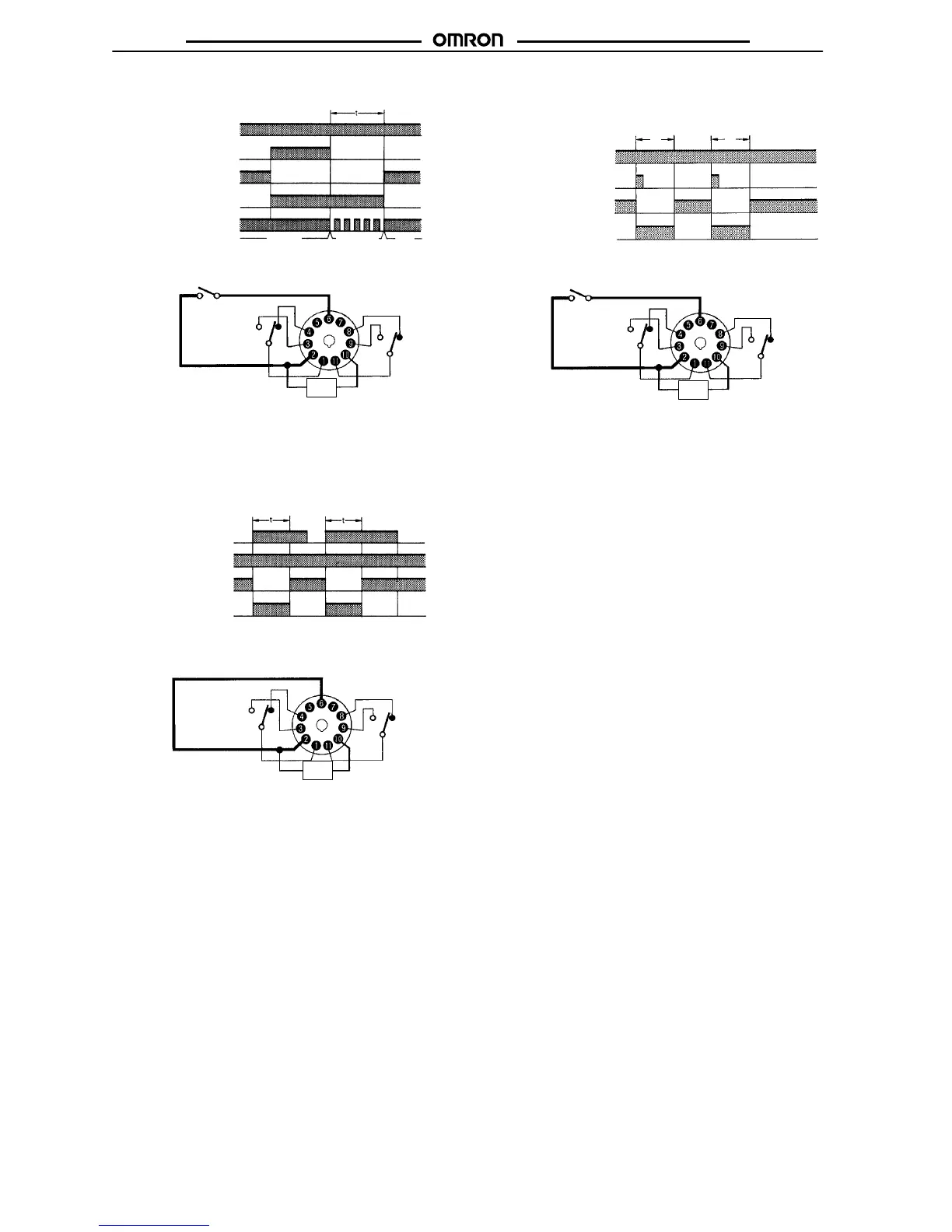

E Mode: Interval
1. Power-ON Start/Instantaneous Operation/T ime-limit Reset
This function is useful for the operation of a machine for a specified
period after power is ON.
Power (2 and 10)
Start (2 and 6)
Control output: NC (8 and 11)
NC (1 and 4)
Control output: NO (9 and 11)
NO (1 and 3)
Power
supply
Externally short-circuited
2. Signal Start/Instantaneous Operation/T ime-limit Reset
This function is useful for the repetitive control such as the filling of
liquid for a specified period after each Signal start input.
Start signal
(Power continuously supplied)
Power
supply
Power (2 and 10)
Start (2 and 6)
Control output: NC (8 and 11)
NC (1 and 4)
Control output: NO (9 and 11)
NO (1 and 3)
t t

Omron H3CR-A8 Specifications

General

Time Range	0.05 s to 300 h
Operating Temperature	-10 to 55°C
Terminal Type	Screw
Number of Pins	8
Contact Rating	5 A at 250 VAC
Storage Temperature	-25 to 65°C
Operating Voltage	100 to 240 VAC
Mounting Type	DIN Rail
Output Type	SPDT
Dimensions	48mm x 48mm
Operating Modes	Interval
