Omron H3CR-A8 User Manual

H3CR-F
H3CR-F
27

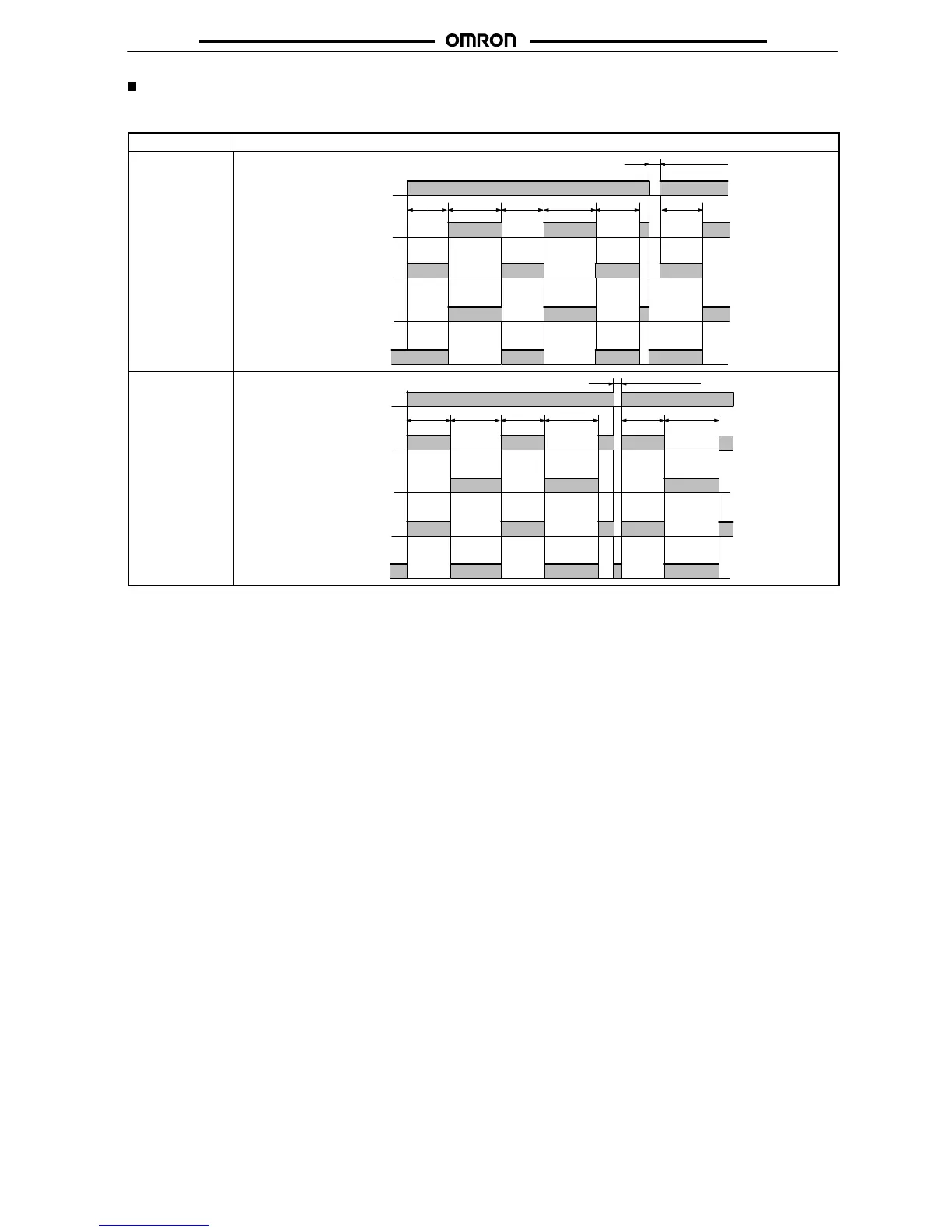

Timing Chart
t
ON
:ON set time
t
OFF
: OFF set time
Operating mode T iming chart
Flicker OFF start
ON
OFF
Power
ON
indicator
Output
NO
OFF
indicator
t
OFF
t
ON
t
OFF
t
ON
t
OFF
t
OFF
0.1 s min.
Lit
Not lit
Lit
Not lit
Output
NC
ON
OFF
ON
OFF
Flicker ON start
t
ON
Power
ON
OFF
ON
indicator
OFF
indicator
t
OFF
t
ON
t
OFF
t
ON
t
OFF
0.1 s min.
Lit
Not lit
Lit
Not lit
Output
NO
Output
NC
ON
OFF
ON
OFF
Note: 1. The reset time requires a minimum of 0.1 s.
2. When power is supplied in flicker ON start mode, the OFF indicator lights momentarily . This, however , has no ef fect on the perfor -
mance
of the T imer.

Omron H3CR-A8 Specifications

General

Time Range	0.05 s to 300 h
Operating Temperature	-10 to 55°C
Terminal Type	Screw
Number of Pins	8
Contact Rating	5 A at 250 VAC
Storage Temperature	-25 to 65°C
Operating Voltage	100 to 240 VAC
Mounting Type	DIN Rail
Output Type	SPDT
Dimensions	48mm x 48mm
Operating Modes	Interval
