H3CR-G
H3CR-G
29

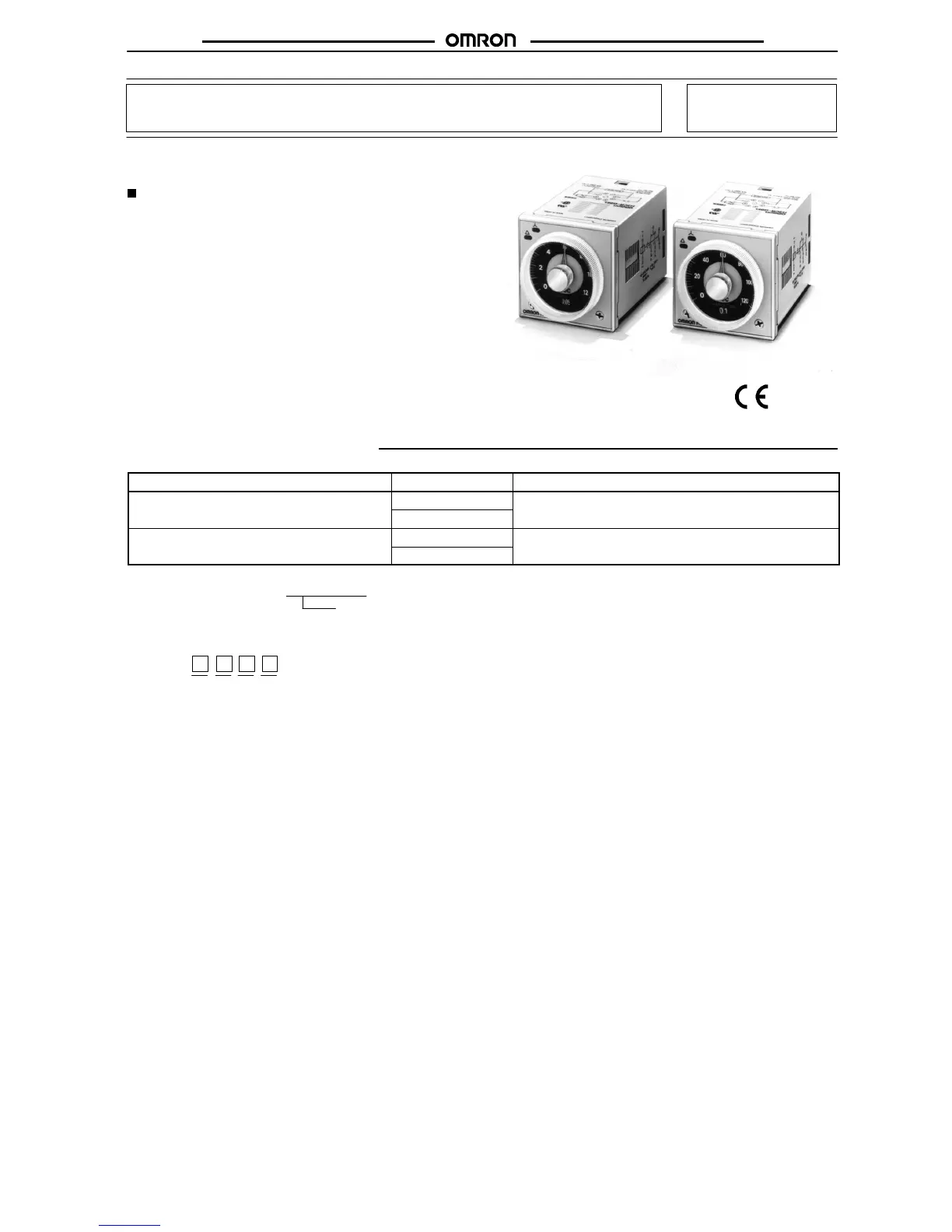

Solid-state Star-delta Timer H3CR-G
DIN 48 x 48-mm Star-delta Timer
A wide star-time range (up to 120 seconds) and
star-delta transfer time range (up to 0.5 seconds).
RC
Ordering Information
Outputs Supply voltage 8-pin models
Time-limit contact 100 to 120 VAC H3CR-G8L
200 to 240 VAC
Time-limit contact and instantaneous contact 100 to 120 VAC H3CR-G8EL
200 to 240 VAC
Note: Specify both the model number and supply voltage when ordering.
Example: H3CR-G8L 100 to 120 VAC
Supply voltage
Model Number Legend:
H3CR -
1 23
1. Classification
G: Star-delta timer
2. Configuration
8: 8-pin socket
3. Outputs
None: Star-delta operation contact
E: Star-delta operation contact and instantaneous contact
4. Dimensions
L: Long-body model
4
