Omron H3CR User Manual

Solid-state Multi-functional Timer H3CR-A 11

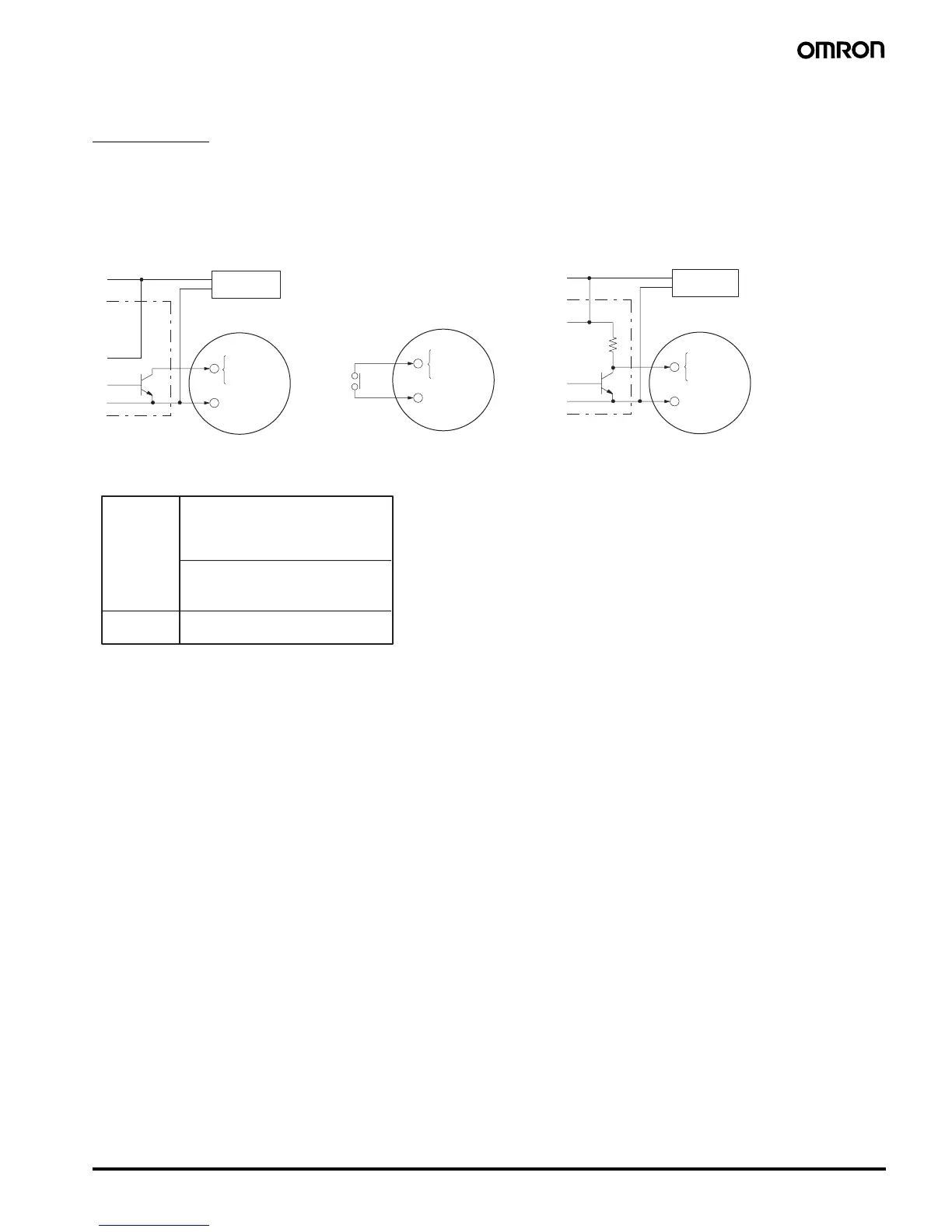

■ Input Connections
H3CR-A/-AS
5
6
7
2
+
−
5
6
7
2
+
−
5
6
7
2
The inputs of the H3CR-A/-AS are no-voltage (short-circuit or open) inputs.
No-voltage Input Signal Levels
No-contact Input Contact Input No-contact Input
No-voltage Inputs
Sensor
Timer
Gate
Start
Reset
Operates with transistor ON
Timer
Operates with relay ON
Gate
Start
Reset
Input (0 V)
Sensor
Timer
Operates with transistor ON
Gate
Start
Reset
Input (0 V)
(Connection to NPN open
collector output sensor.)
12 to 24 VDC
(sensor power supply)
DC power
supply
Input (0 V)
No-contact
input
1. Short-circuit level
Transistor ON
Residual voltage: 1 V max.
Impedance when ON: 1 kΩ max.
2. Open level
Transistor OFF
Impedance when OFF: 100 kΩ min.
Contact
input
Use contacts which can adequate-
ly switch 0.1 mA at 5 V
(Connection to a voltage
output sensor.)
12 to 24 VDC
(sensor power supply)
DC power
supply

Omron H3CR Specifications

General

Output Type	Relay
Time Range	0.05 seconds to 300 hours
Contact Form	SPDT
Number of Pins	8
Operating Temperature	-10°C to 55°C
Storage Temperature	-25°C to 65°C
Operating Voltage	12-240V AC/DC
